Linear - Comparators SOT-23-5 Thin, TSOT-23-5 5V -40°C~125°C IC COMPARATOR 1CH LP 5TSOP
The TL331 is an open collector, low−power comparator designed specifically to operate over a wide supply range from 2 V to 36 V single supply and ±1 V to ±18 V for split supplies. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
TL331SN4T3G
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.20967 | $0.21 |
| 10+ | $0.1978 | $1.98 |
| 100+ | $0.18661 | $18.66 |
| 500+ | $0.17604 | $88.02 |
| 1000+ | $0.16608 | $166.08 |

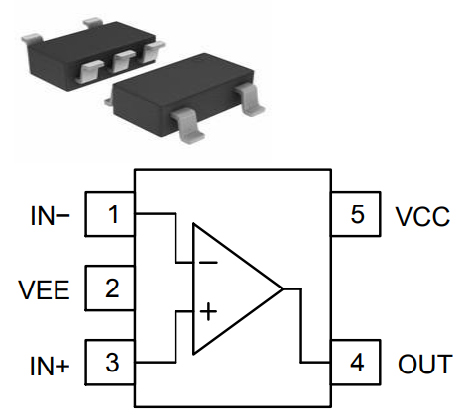

Pinout
Symbol
Footprint
3D Model
The TL331 is an open collector, low−power comparator designed specifically to operate over a wide supply range from 2 V to 36 V single supply and ±1 V to ±18 V for split supplies. The input common−mode voltage range includes ground, even when operated from a single power supply voltage. TL331 comes in a space saving TSOP−5 package and is also available in an automotive qualified version.
This article provides you with a basic overview of the TL331, including its pin descriptions, features and specifications, etc., to help you quickly understand what TL331 is.
● Wide Single Supply Voltage Range or Dual Supplies
● Low Supply Current: 0.5 mA Typical
● Low Input Bias Current: 25 nA Typical
● Low Input Offset Current: ±5 nA Typical
● Low Input Offset Voltage: ±2 mV Typical
● Input Common Mode Voltage Range includes Ground
● Low Output Saturation Voltage: 150 mV Typ at IO = 4 mA
● Differential Input Voltage Range Equal to the Supply Voltage
● TTL, DTL, ECL, CMOS Compatible Devices
● TL331V for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
● The Device is Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
ON Semiconductor TL331SN4T3G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor TL331SN4T3G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 11 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | |
| Surface Mount | YES | |
| Number of Pins | 5Pins | |
| Number of Elements | 1 Element | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2016 | |
| JESD-609 Code | e3 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 5Terminations | |
| Type | General Purpose | |
| Terminal Finish | Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Response Time | 850 ns | |
| Voltage - Supply, Single/Dual (±) | 2V~36V ±1V~18V | |
| Average Bias Current-Max (IIB) | 0.4μA | |
| Current - Quiescent (Max) | 1.25mA | |
| Voltage - Input Offset (Max) | 5mV @ 5V | |
| Current - Input Bias (Max) | 250nA @ 5V | |
| Current - Output (Typ) | 16mA @ 5V | |
| Propagation Delay (Max) | 850ns (Typ) | |
| Length | 3mm | |
| RoHS Status | ROHS3 Compliant |

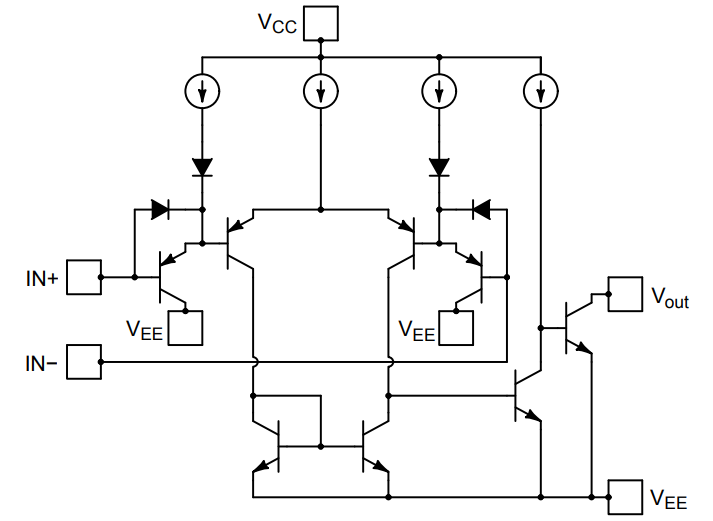

Functional Block Diagram
Marking Diagram
Low−to−High Propagation Delay vs. Overdrive at 2 V Supply

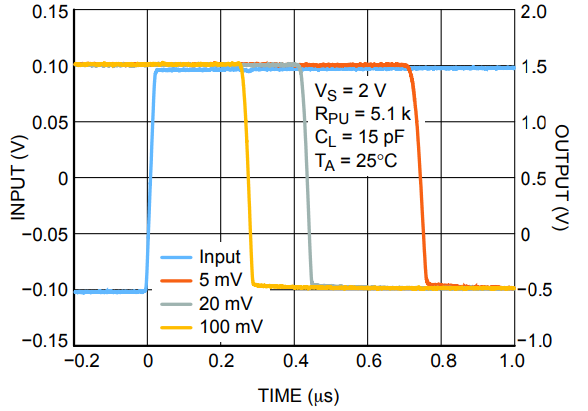

High−to−Low Propagation Delay vs. Overdrive at 2 V Supply
Low−to−High Propagation Delay vs. Overdrive at 5 V Supply

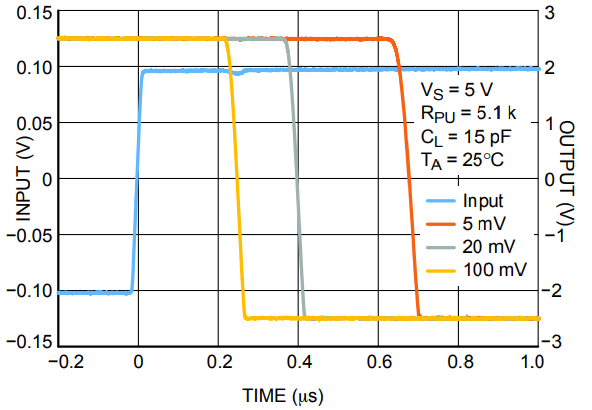

High−to−Low Propagation Delay vs. Overdrive at 5 V Supply
Low−to−High Propagation Delay vs. Overdrive at 36 V Supply
High−to−Low Propagation Delay vs. Overdrive at 36 V Supply

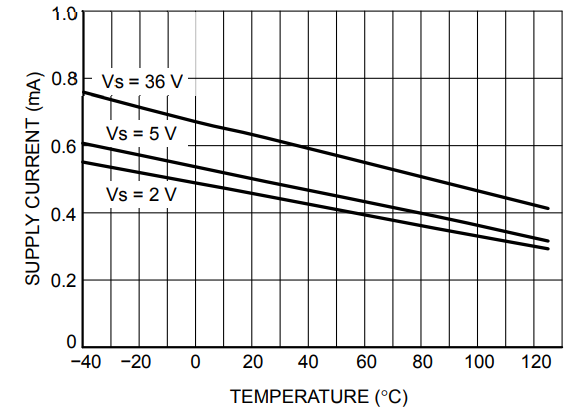

Quiescent Current vs. Temperature
Low Level Output Voltage vs. Output Current at 5 V Supply
Package
Soldering Footprint
On Semiconductor (Nasdaq: ON) is a manufacturer engaging itself in reducing energy use. It features a comprehensive portfolio of power, signal management, and logic, custom solutions that are energy efficient. It acts as a world-class supply chain with high reliability and a network of manufacturing facilities, sales, offices, and design centers in key markets through North America, Europe, and the Asia Pacific regions.
Download datasheets and manufacturer documentation for TL331SN4T3G
