The TL431ACLP is a three-terminal adjustable shunt regulator with specified thermal stability across a wide range of temperatures in the automotive, commercial, and military markets. This article is going to introduce pinout, applications, features, and more details about TL431ACLP.
TL431ACLP
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.70621 | $0.71 |
| 10+ | $0.66624 | $6.66 |
| 100+ | $0.62853 | $62.85 |
| 500+ | $0.59295 | $296.47 |
| 1000+ | $0.55939 | $559.39 |
The TL431ACLP devices are three-terminal adjustable shunt regulators with specified thermal stability across a wide range of temperatures in the automotive, commercial, and military markets. With two external resistors, the output voltage can be tuned to any value between Vref (about 2.5 V) and 36 V. The output impedance of these devices is typically 0.2. In many applications, such as onboard regulation, adjustable power supplies, and switching power supplies, active output circuitry provides a very sharp turn-on characteristic, making these devices good alternatives for Zener diodes. The TL432 device has the same functionality and electrical specs as the TL431 device, but the DVB, DBZ, and PK packages have different pinouts.
• Reference Voltage Tolerance at 25°C
– 0.5% (B Grade)
– 1% (A Grade)
– 2% (Standard Grade)
• Adjustable Output Voltage: Vref to 36 V
• Operation From −40°C to 125°C
• Typical Temperature Drift (TL43xB)
– 6 mV (C Temp)
– 14 mV (I Temp, Q Temp)
• Low Output Noise
• 0.2-Ω Typical Output Impedance
• Sink-Current Capability: 1 mA to 100 mA
TL431ACLP Pinout
Texas Instruments TL431ACLP technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TL431ACLP.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Surface Mount | NO | |
| Number of Pins | 3Pins | |
| Weight | 213.188414mg | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Bulk | |
| Tolerance | ±1% | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Temperature Coefficient | 34 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | BOTTOM | |
| Number of Functions | 1Function | |
| Current Rating | 100mA | |
| Base Part Number | TL431 | |
| Pin Count | 3 | |
| Number of Outputs | 1Output | |
| Output Voltage | 36V | |
| Output Type | Adjustable | |
| Max Output Current | 100mA | |
| Number of Channels | 1Channel | |
| Trim/Adjustable Output | YES | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| Max Output Voltage | 36V | |
| Voltage - Output (Min/Fixed) | 2.495V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Input Voltage | 2.495V | |
| Max Input Voltage | 37V | |
| Reference Voltage | 36V | |
| Reference Type | Shunt | |
| Min Output Voltage | 2.5V | |
| Temp Coef of Voltage-Max | 92 ppm/°C | |
| Current - Cathode | 600μA | |
| Height | 5.34mm | |
| Length | 4.3mm | |
| Width | 4.3mm | |
| Thickness | 3.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

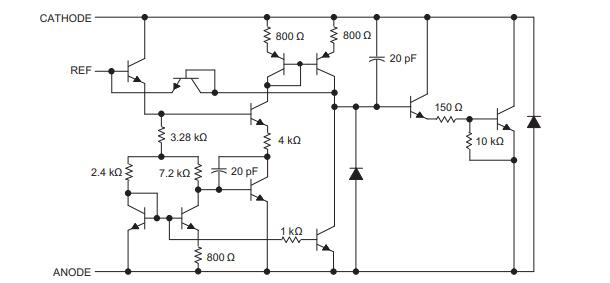

TL431ACLP Simplified Schematic
TL431ACLP Block Diagram
• Adjustable Voltage and Current Referencing
• Secondary Side Regulation in Flyback SMPSs
• Zener Replacement
• Voltage Monitoring
• Comparator with Integrated Reference
TL431ACLP Package information
Download datasheets and manufacturer documentation for TL431ACLP
