TL431 Shunt Regulator Circuits Explained
PMIC - Voltage Reference Shunt ±1% THREE TERMINAL VOLTAGE REFERENCE 2.495V -40°C~85°C TA TL431 0.95mm IC VREF SHUNT ADJ SOT23-3

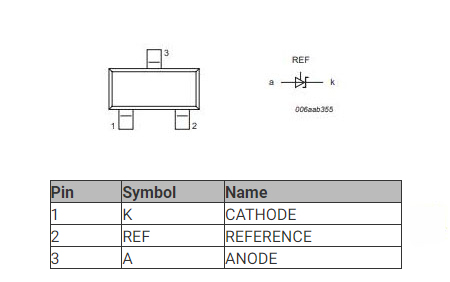

TL431AIDBZR is an adjustable precision shunt regulator. This post will unlock its datasheet, pinout, application circuit and more details about TL431AIDBZR. Welcome your RFQ!
TL431AIDBZR,215
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.70797 | $0.71 |
| 10+ | $0.66789 | $6.68 |
| 100+ | $0.63009 | $63.01 |
| 500+ | $0.59442 | $297.21 |
| 1000+ | $0.56078 | $560.78 |

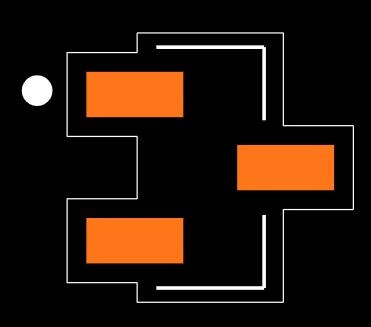

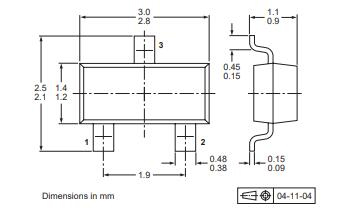

TL431AIDBZR Footprint
TL431AIDBZR 3D Model
TL431AIDBZR is an adjustable precision shunt regulator, belonging to the three-terminal shunt regulator family with an output voltage range between Vref and 36 V, to be set by two external resistors.
• The TL431xDBZR types feature an enhanced stability area with a very low load capacity requirement.
• The TL431xFDT types offer an enhanced stability area and a higher ElectroMagnetic Interference (EMI) ruggedness, for example, for Switch Mode Power Supply (SMPS) applications.
• The TL431xSDT types are designed for standard requirements and linear applications.
Programmable output voltage up to 36 V
Three different reference voltage tolerances:
Standard grade: 2 %
A-Grade: 1 %
B-Grade: 0.5 %
Typical temperature drift: 6 mV (in a range of 0℃ up to 70 ℃)
Low output noise
Typical output impedance: 0.2 Ω
Sink current capability: 1 mA to 1 00 mA
AEC-Q100 qualified (grade 1 )
The following figure shows the functional block diagram of TL431AIDBZR:
TL431AIDBZR Functional Block Diagram
The TL431 family comprises a range of 3-terminal adjustable shunt regulators, with specified thermal stability over applicable automotive and commercial temperature ranges.
Shunt regulator
Precision current limiter
Precision constant current sink
Isolated feedback loop for Switch Mode Power Supply (SMPS)
The following circuit shows the application circuit of TL431AIDBZR:
The TL431AIDBZR test circuit is shown below:
TL431AIDBZR Test Circuit
Nexperia USA Inc. TL431AIDBZR,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. TL431AIDBZR,215.
Nexperia USA Inc. TL431AIDBZR,215 technical specifications, attributes, parameters and parts with similar specifications to Nexperia USA Inc. TL431AIDBZR,215.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 4 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Digi-Reel® | |
| Published | 2013 | |
| Tolerance | ±1% | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| HTS Code | 8542.39.00.01 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.95mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | TL431 | |
| Pin Count | 3 | |
| JESD-30 Code | R-PDSO-G3 | |
| Number of Outputs | 1Output | |
| Output Voltage | 2.495V | |
| Output Type | Adjustable | |
| Supply Voltage-Max (Vsup) | 36V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage-Min (Vsup) | 2.47V | |
| Trim/Adjustable Output | YES | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| Voltage - Output (Min/Fixed) | 2.495V | |
| Reference Type | Shunt | |
| Output Voltage-Min | 2.47V | |
| Temp Coef of Voltage-Max | 888 ppm/°C | |
| Current - Cathode | 600μA | |
| Length | 2.9mm | |
| Height Seated (Max) | 1.1mm | |
| Width | 1.3mm | |
| RoHS Status | ROHS3 Compliant |
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at a high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
The similar parts from Nexperia are as follow TL431AQDBZRVL, TL431ACDBZRVL, TL431BCDBZRVL, TL431AIDBZR,215, TL431BIDBZR,215,
TL431AQDBZR,215, TL431BQDBZR,215, TL431QDBZR,215, TL431IDBZR,215, TL431BCDBZR,215,TL431ACDBZR,215,
TL431CDBZR,215 and so on.
Download datasheets and manufacturer documentation for TL431AIDBZR,215
