IC VREF SHUNT 36V 2.21% TO92-3 Hello Friends, now I wanna introduce you guys a very useful little thing and I promise you are gonna love it,this thing call TL431CZ and it is adjustable shunt voltage references with guaranteed temperature stability over the entire operating temperature range.
53
Sep 8, 2021
Cornelia Hill
IC VREF SHUNT 36V 2.21% TO92-3
Hello Friends, now I wanna introduce you guys a very useful little thing and I promise you are gonna love it,this thing call TL431CZ and it is adjustable shunt voltage references with guaranteed temperature stability over the entire operating temperature range.
TL431CZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.26828 | $0.27 |
| 10+ | $0.25309 | $2.53 |
| 100+ | $0.23877 | $23.88 |
| 500+ | $0.22525 | $112.63 |
| 1000+ | $0.2125 | $212.5 |
The TL431CZ is adjustable shunt voltage references with guaranteed temperature stability over the entire operating temperature range.
The device temperature range is extended for the automotive version from -40 °C up to +125 °C. The output voltage can be set to any value between 2.5 and 36 V with two external resistors.
The TL431CZ operates with a wide current range from 1 to 100 mA with a typical dynamic impedance of 0.22 Ω.

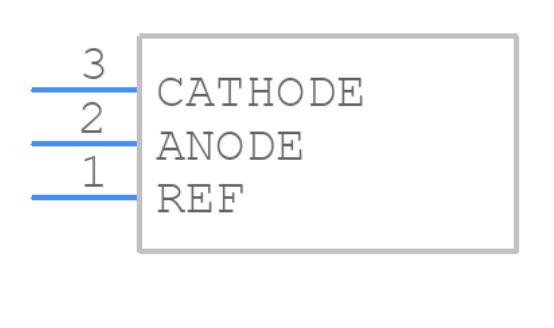

TL431CZ Symbol

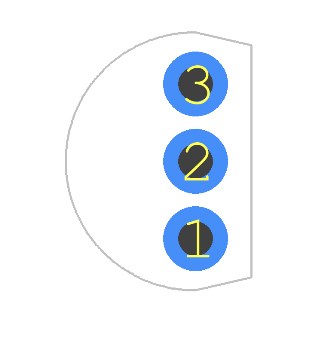

TL431CZ Footprint

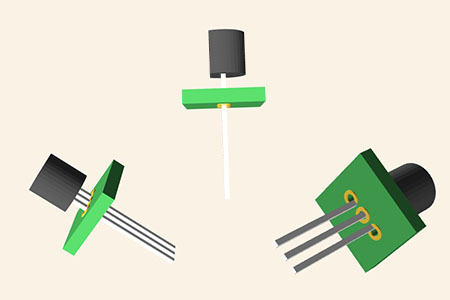

TL431CZ 3D Model
AEC-Q100 qualified
Adjustable output voltage: 2.5 to 36 V
Sink current capability: 1 to 100 mA
Typical output impedance: 0.22 Ω
1% and 2% voltage precision
Automotive temp. range -40 °C to +125 °C
STMicroelectronics TL431CZ technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL431CZ.
STMicroelectronics TL431CZ technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TL431CZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 8 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Number of Pins | 3Pins | |
| Weight | 4.535924g | |
| Operating Temperature | 0°C~70°C TA | |
| Packaging | Bulk | |
| Tolerance | ±2.21% | |
| JESD-609 Code | e3 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Temperature Coefficient | 100 ppm/°C | |
| Terminal Finish | Matte Tin (Sn) - annealed | |
| Terminal Position | BOTTOM | |
| Number of Functions | 1Function | |
| Base Part Number | TL431 | |
| Pin Count | 3 | |
| Number of Outputs | 1Output | |
| Output Voltage | 36V | |
| Output Type | Adjustable | |
| Max Output Current | 100mA | |
| Number of Channels | 1Channel | |
| Trim/Adjustable Output | YES | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE | |
| Nominal Supply Current | 1mA | |
| Accuracy | 2 % |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Voltage | 36V | |
| Max Input Voltage | 37V | |
| Reference Voltage | 36V | |
| Reference Type | Shunt | |
| Min Output Voltage | 2.495V | |
| Current - Cathode | 1mA | |
| Height | 4.4mm | |
| Length | 4.7mm | |
| Width | 3.7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
| Part Number | Describtions | Manufaturer |
| TL431BLP-APPOWER CIRCUITS | Three Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, ROHS COMPLIANT, TO-92, 3 PIN | Micro Commercial Components |
| TL431BLP-BPPOWER CIRCUITS | Three Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, ROHS COMPLIANT, TO-92, 3 PIN | Micro Commercial Components |
| TL431CZTPOWER CIRCUITS | Adjustable micropower shunt voltage reference | STMicroelectronics |
| TL431ALP-APPOWER CIRCUITS | Three Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, ROHS COMPLIANT, TO-92, 3 PIN | Micro Commercial Components |
| TL431CZ-APPOWER CIRCUITS | Adjustable micropower shunt voltage reference | STMicroelectronics |
| TL431ALP-BPPOWER CIRCUITS | Three Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, BIPolar, ROHS COMPLIANT, TO-92, 3 PIN | Micro Commercial Components |
Power supply
Industrial
Automotive

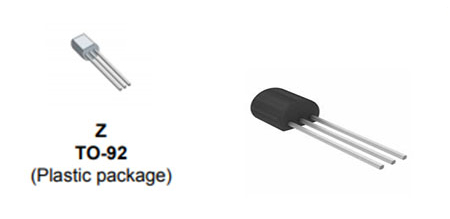

TL431CZ Package

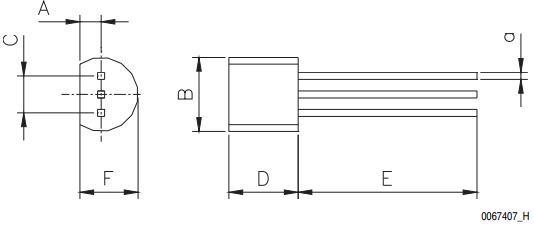

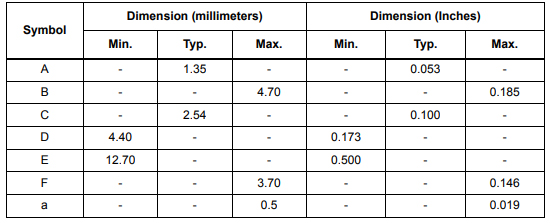

TL431CZ Dimension
STMicroelectronics is a French-Italian multinational electronics and semiconductors manufacturer headquartered in Plan-les-Ouates near Geneva, Switzerland. The company resulted from the merger of two government-owned semiconductor companies in 1987: "Thomson Semiconducteurs" of France and "SGS Microelettronica" of Italy. It is commonly called "ST", and it is Europe's largest semiconductor chip maker based on revenue. While STMicroelectronics corporate headquarters and the headquarters for EMEA region are based in the Canton of Geneva, the holding company, STMicroelectronics N.V. is incorporated in the Netherlands.
Download datasheets and manufacturer documentation for STMicroelectronics TL431CZ.
Download datasheets and manufacturer documentation for TL431CZ
