TL594 PWM Control Circuit: Pinout, Circuit and Datasheet

TEXAS INSTRUMENTS TL594CDPWM Controller CCT, 40V-7V supply, 300 kHz, 40V/200mA out, SOIC-16 TL594 is a pulse-width-modulation control circuit.

1798

Jul 2, 2021

Una Grantham

#168 ATX POWER SUPPLY CIRCUIT DESCRIPTION TL494 TL594 SMPS PWM CONTROLLER



TEXAS INSTRUMENTS TL594CDPWM Controller CCT, 40V-7V supply, 300 kHz, 40V/200mA out, SOIC-16

TL594 is a pulse-width-modulation control circuit. This article mainly introduce its pinout, circuit, datasheet and other detailed information about Texas Instruments TL594.

TL594CD

160In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.38606$1.39
10+ $1.3076$13.08
100+ $1.23359$123.36
500+ $1.16376$581.88
1000+ $1.09789$1097.89
Unit Price:$1.38606
Subtotal: $1.39
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

TL594 Description

The TL594 device incorporates all the functions required in the construction of a pulse-width-modulation (PWM) control circuit on a single chip. Designed primarily for power-supply control, this device offers the systems engineer the flexibility to tailor the power-supply control circuitry to a specific application



The TL594 device contains two error amplifiers, an on-chip adjustable oscillator, a dead-time control (DTC) comparator, a pulse-steering control flip-flop, a 5-V regulator with a precision of 1%, an undervoltage lockout control circuit, and output control circuitry.



The error amplifiers have a common-mode voltage range of –0.3 V to VCC – 2 V. The DTC comparator has a fixed offset that provides approximately 5% dead time. The on-chip oscillator can be bypassed by terminating RT to the reference output and providing a sawtooth input to CT, or it can be used to drive the common circuitry in synchronous multiple-rail power supplies.



The uncommitted output transistors provide either common-emitter or emitter-follower output capability. Each device provides for push-pull or single-ended output operation, with selection by means of the output control function. The architecture of these devices prohibits the possibility of either output being pulsed twice during push-pull operation. The undervoltage lockout control circuit locks the outputs off until the internal circuitry is operational.



The TL594C device is characterized for operation from 0°C to 70°C. The TL594I device is characterized for operation from –40°C to 85°C.

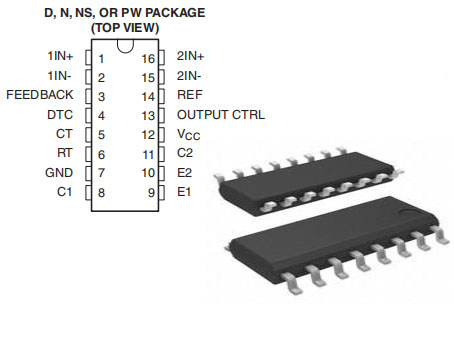

TL594 Pinout

TL594 CAD Model

Symbol



Footprint



3D Model

TL594 Features

• Complete pulse width modulation control circuit

• On-chip oscillator with master or slave operation

• On-chip error amplifier

• On-chip 5.0 V reference voltage source, 1.5% accuracy

• Adjustable dead time control

• Non-dedicated output transistor with a rated output current of 500 mA source or sink

• Output control for push-pull or single-ended operation

• Undervoltage lockout

• Provide lead-free packaging*



Specifications

Texas Instruments TL594CD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TL594CD.

TL594CD Tech Specifications

Texas Instruments TL594CD technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TL594CD.

Product Attribute Attribute Value
Lifecycle StatusACTIVE (Last Updated: 4 days ago)
Factory Lead Time6 Weeks
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154, 3.90mm Width)
Surface MountYES
Number of Pins16Pins
Weight141.690917mg
Operating Temperature0°C~70°C TA
PackagingTube
JESD-609 Codee4
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations16Terminations
ECCN CodeEAR99
Terminal FinishNickel/Palladium/Gold (Ni/Pd/Au)
Terminal PositionDUAL
Terminal FormGULL WING
Product Attribute Attribute Value
Peak Reflow Temperature (Cel)260
Supply Voltage15V
Frequency300kHz
Base Part NumberTL594
FunctionStep-Up, Step-Down, Step-Up/Step-Down
Number of Outputs2Outputs
Output Voltage40V
Output TypeTransistor Driver
Operating Supply Voltage15V
Input Voltage-Nom15V
Analog IC - Other TypeSWITCHING CONTROLLER
Output ConfigurationPositive
Output Current200mA
Voltage - Supply (Vcc/Vdd)7V~40V
Quiescent Current12.4mA
Control FeaturesDead Time Control, Frequency Control
Input Voltage (Min)7V
TopologyBuck, Boost, Flyback, Forward Converter, Full-Bridge, Half-Bridge, Push-Pull
Product Attribute Attribute Value
Control ModeVOLTAGE-MODE
Frequency - Switching1kHz~300kHz
Control TechniquePULSE WIDTH MODULATION
Rise Time200ns
Synchronous RectifierNo
Fall Time (Typ)45 ns
Max Duty Cycle45 %
Duty Cycle (Max)97%
Output Phases1
Height1.75mm
Length9.9mm
Width3.91mm
Thickness1.58mm
REACH SVHCNo SVHC
RoHS StatusROHS3 Compliant
Lead FreeLead Free
0 Products View Similar

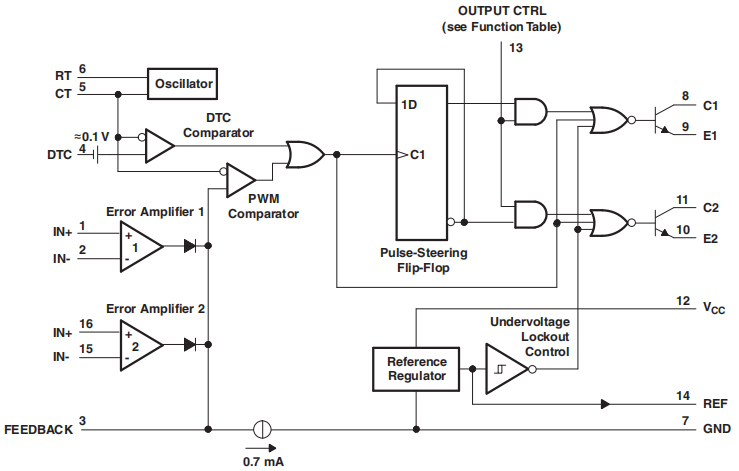

TL594 Functional Block Diagram

TL594 Circuit

Amplifier-Characteristics Test Circuit



Operational Test Circuit and Waveforms

TL594 Mechanical Data

TL594 Manufacturer

Texas Instruments (TI) is an American technology company headquartered in Dallas, Texas, which designs and manufactures semiconductors and various integrated circuits, and sells them to electronic designers and manufacturers worldwide. It is one of the top 10 semiconductor companies in global sales. The company focuses on the development of analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and educational technology products, including calculators, microcontrollers and multi-core processors. As of 2016, the company has 45,000 patents worldwide.

Datasheet PDF

Download datasheets and manufacturer documentation for Texas Instruments TL594CD.

TL594CD Documents

Download datasheets and manufacturer documentation for TL594CD

Frequently Asked Questions

1.What is the difference between TL594 and TL494?
They are all PWM controllers and their pins are compatible. The main difference between TL594 and TL494 is that the switching frequency (fosc) of TL494 is 200kHz, while the switching frequency of TL594 is 300kHz. In addition, the benchmark of TL594 is 1%, TL494 is 5%, and TL594 also has VCC undervoltage lockout.
2.Are there any pwm power control chips?
TL594 (16 Pins)
3.What is the working principle of TL594?
The function that TL594 wants to realize finally is to take Q1, Q2 as the output end, output the square wave with fixed frequency and adjustable pulse width. The output frequency is set by 6 feet (Rt) and 5 feet (Ct), and its frequency is f=1.1/RtCt. When the pulse width is high by the ck of the flip-flop module, Q1 and Q2 are blocked; in this way, the output pulse width of Q1 and Q2 can be controlled by the duty ratio of the control signal on ck. The level of this control signal is determined by the dead time comparator, pulse width modulation comparator, and undervoltage lockout comparator. Only one comparator outputs high level, then Q1 and Q2 are blocked.
3.What is the working principle of TL594?
The function that TL594 wants to realize finally is to take Q1, Q2 as the output end, output the square wave with fixed frequency and adjustable pulse width. The output frequency is set by 6 feet (Rt) and 5 feet (Ct), and its frequency is f=1.1/RtCt. When the pulse width is high by the ck of the flip-flop module, Q1 and Q2 are blocked; in this way, the output pulse width of Q1 and Q2 can be controlled by the duty ratio of the control signal on ck. The level of this control signal is determined by the dead time comparator, pulse width modulation comparator, and undervoltage lockout comparator. Only one comparator outputs high level, then Q1 and Q2 are blocked.
FAQ
1.What is the difference between TL594 and TL494?
They are all PWM controllers and their pins are compatible. The main difference between TL594 and TL494 is that the switching frequency (fosc) of TL494 is 200kHz, while the switching frequency of TL594 is 300kHz. In addition, the benchmark of TL594 is 1%, TL494 is 5%, and TL594 also has VCC undervoltage lockout.
2.Are there any pwm power control chips?
TL594 (16 Pins)
3.What is the working principle of TL594?
The function that TL594 wants to realize finally is to take Q1, Q2 as the output end, output the square wave with fixed frequency and adjustable pulse width. The output frequency is set by 6 feet (Rt) and 5 feet (Ct), and its frequency is f=1.1/RtCt. When the pulse width is high by the ck of the flip-flop module, Q1 and Q2 are blocked; in this way, the output pulse width of Q1 and Q2 can be controlled by the duty ratio of the control signal on ck. The level of this control signal is determined by the dead time comparator, pulse width modulation comparator, and undervoltage lockout comparator. Only one comparator outputs high level, then Q1 and Q2 are blocked.
3.What is the working principle of TL594?
The function that TL594 wants to realize finally is to take Q1, Q2 as the output end, output the square wave with fixed frequency and adjustable pulse width. The output frequency is set by 6 feet (Rt) and 5 feet (Ct), and its frequency is f=1.1/RtCt. When the pulse width is high by the ck of the flip-flop module, Q1 and Q2 are blocked; in this way, the output pulse width of Q1 and Q2 can be controlled by the duty ratio of the control signal on ck. The level of this control signal is determined by the dead time comparator, pulse width modulation comparator, and undervoltage lockout comparator. Only one comparator outputs high level, then Q1 and Q2 are blocked.
