Optocoupler Logic-Out Totem-Pole DC-IN 1-CH 8-Pin DIP
Hi, fellas. I am Rose. Welcome back to my post about electronic components. TLP250 is an isolated IGBT/Mosfet driver IC. This article mainly introduces schematic, pinout, datasheet, and other detailed information about Toshiba Semiconductor Storage TLP250.
TLP250H(F)
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.25238 | $2.25 |
| 10+ | $2.12489 | $21.25 |
| 100+ | $2.00461 | $200.46 |
| 500+ | $1.89114 | $945.57 |
| 1000+ | $1.7841 | $1784.1 |
TLP250 is an isolated 8-pin IGBT/Mosfet driver IC. The input side consists of a GaAlAs light-emitting diode. The output side gets a drive signal through an integrated photodetector. Therefore, the main feature is electrical isolation between low and high power circuits. It transfers electrical signals optically via light. Users can use it to drive the gate terminals of high voltage switches in both configurations such as high side and low side drive.
| Pin Number | Pin Name | Description |
| 1 | N.C. | No Connection – Not used |
| 2 | Anode | Anode terminal of LED diode |
| 3 | Cathode |
The cathode terminal of the LED |
| 4 | N.C. | No Connection – Not used |
| 5 | GND | Connect with Ground of power supply |
| 6 | Vo（output) | Output terminal |
| 7 | Vo | Output terminal |
| 8 | Vcc | Connect with Positive terminal of power supply |
Symbol
Footprint

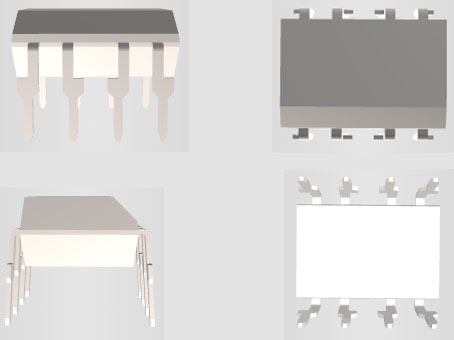

3D Model
●Operating frequency: 0-25kHz
●Input Supply voltage: 10-35 volts
●Output voltage: 10-35 volts
●Output drive current: 1.5A
●Electrical isolation voltage: 3500 VRMS
●Switching rise and fall time: 1.5μs
●Operating temperature range: -20 – 85 degrees
Toshiba Semiconductor and Storage TLP250H(F) technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage TLP250H(F).
Toshiba Semiconductor and Storage TLP250H(F) technical specifications, attributes, parameters and parts with similar specifications to Toshiba Semiconductor and Storage TLP250H(F).
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 8-DIP (0.300, 7.62mm) | |
| Number of Pins | 8Pins | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tube | |
| Published | 2014 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | Not Applicable |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Power Dissipation | 260mW | |
| Voltage - Supply | 10V~30V | |
| Voltage - Isolation | 3750Vrms | |
| Output Type | Push-Pull, Totem Pole | |
| Number of Channels | 1Channel | |
| Voltage - Forward (Vf) (Typ) | 1.57V | |
| Propagation Delay | 500 ns | |
| Input Type | DC | |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER | |
| Direction | Unidirectional |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rise Time | 50ns | |
| Fall Time (Typ) | 50 ns | |
| Rise / Fall Time (Typ) | 50ns 50ns | |
| Max Input Current | 20mA | |
| Propagation Delay tpLH / tpHL (Max) | 500ns, 500ns | |
| Common Mode Transient Immunity (Min) | 40kV/μs | |
| Inputs - Side 1/Side 2 | 1/0 | |
| RoHS Status | RoHS Compliant |
●Used in Induction heating
●Used in Solar heating system
●Used in Solar inverters/ Power Inverter
●Used in Pure sine wave and modified sine wave inverters
●Used in Industrial Inverters
●Used in Air Conditioner Inverters
●Used in IGBT Gate Drivers
●Used in MOSFET Gate Drivers
●Used in Induction Cooktop and Home Appliances
Toshiba Corporation (株式会社東芝, Kabushiki Kaisha Tōshiba, English: /təˈʃiːbə, tɒ-, toʊ-/) is a Japanese multinational conglomerate headquartered in Minato, Tokyo. Its diversified products and services include power, industrial and social infrastructure systems, elevators and escalators, electronic components, semiconductors, hard disk drives, printers, batteries, lighting, as well as IT solutions such as quantum cryptography. It was one of the biggest manufacturers of personal computers, consumer electronics, home appliances, and medical equipment.
Download datasheets and manufacturer documentation for Toshiba Semiconductor and Storage TLP250H(F).
Download datasheets and manufacturer documentation for TLP250H(F)
