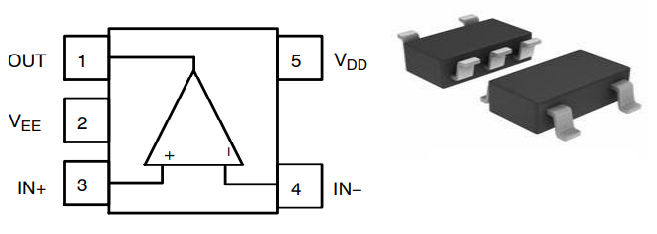

The TLV271 operational amplifier provides rail−to−rail output operation. The output can swing within 320 mV to the positive rail and 50 mV to the negative rail. This rail−to−rail operation enables the user to make optimal use of the entire supply voltage range while taking advantage of 3 MHz bandwidth. The opamp can operate on supply voltage as low as 2.7 V over the temperature range of −40°C to 125°C. The high bandwidth provides a slew rate of 2.4 V/μs while only consuming 550 μA of quiescent current. Likewise the opamp can run on a supply voltage as high as 16 V (single) and 36 V (dual quad) making it ideal for a broad range of battery−operated applications. Since this is a CMOS device it has high input impedance and low bias currents making it ideal for interfacing to a wide variety of signal sensors. In addition it comes in a variety of compact packages with different pinout styles allowing for use in high−density PCB’s.
This article provides you with a basic overview of the TLV271 operational amplifier, including its pin descriptions, features and specifications, etc., to help you quickly understand what TLV271 is.
● Rail−To−Rail Output
● Wide Bandwidth: 3 MHz
● High Slew Rate: 2.4 V/μs
● Wide Power−Supply Range: 2.7 V to 16 V
● Low Supply Current: 550 μA
● Low Input Bias Current: 45 pA
● Wide Temperature Range: −40°C to 125°C
● NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
● These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
ON Semiconductor TLV271SN2T1G technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor TLV271SN2T1G.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 | |
| Surface Mount | YES | |
| Number of Pins | 5Pins | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tape & Reel (TR) | |
| Published | 2007 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 5Terminations | |
| ECCN Code | EAR99 | |
| Packing Method | TAPE AND REEL | |
| Max Power Dissipation | 200mW | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Base Part Number | TLV271 | |
| Pin Count | 5 | |
| Output Type | Rail-to-Rail | |
| Number of Channels | 1Channel | |
| Operating Supply Current | 490μA | |
| Nominal Supply Current | 550μA | |
| Power Dissipation | 200mW | |
| Output Current | 13mA | |
| Slew Rate | 2.6V/μs | |
| Architecture | VOLTAGE-FEEDBACK | |
| Amplifier Type | General Purpose | |
| Common Mode Rejection Ratio | 58 dB | |
| Current - Input Bias | 1pA | |
| Voltage - Supply, Single/Dual (±) | 2.7V~16V ±1.35V~8V | |
| Halogen Free | Halogen Free | |
| Output Current per Channel | 13mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Offset Voltage (Vos) | 5mV | |
| Neg Supply Voltage-Nom (Vsup) | -5V | |
| Unity Gain BW-Nom | 3000 kHz | |
| Voltage Gain | 110dB | |
| Power Supply Rejection Ratio (PSRR) | 70dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 500μV | |
| Low-Bias | YES | |
| Micropower | NO | |
| Programmable Power | NO | |
| Height | 1mm | |
| Length | 3mm | |
| Width | 1.5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Single Channel Configurationa
● Notebook Computers
● Portable Instruments
● Signal Conditioning
● Automotive
● Power Supplies
● Current Sensing
Package
Soldering Footprint
