TEXAS INSTRUMENTS - TLV320AIC3104IRHBR - AUDIO CODEC, 24 BIT, 96KHZ, QFN-32, FULL REEL
The TLV320AIC3104IRHBR is a highly flexible, low-power, stereo audio codec with extensive feature integration, intended for applications in smartphones, PDAs, and portable computing, communication, and entertainment. This passage will cover its description, datasheet, pinout, and other ways.
TLV320AIC3104IRHBR
The TLV320AIC3104IRHBR is a low-power stereo audio codec that includes a stereo headphone amplifier, as well as various single-ended and completely differential inputs and outputs. It features extensive register-based power regulation, allowing stereo 48 -kHz DAC playback with as little as 14 mW from a 3.3 -V analog source, making it perfect for battery-powered audio and telephony applications.
Symbol
Footprint

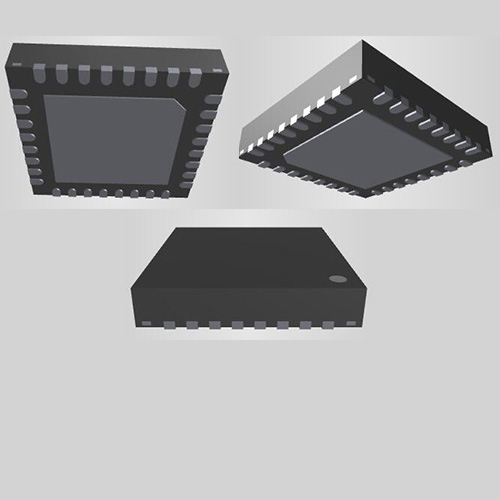

3D Models
Texas Instruments TLV320AIC3104IRHBR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TLV320AIC3104IRHBR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |

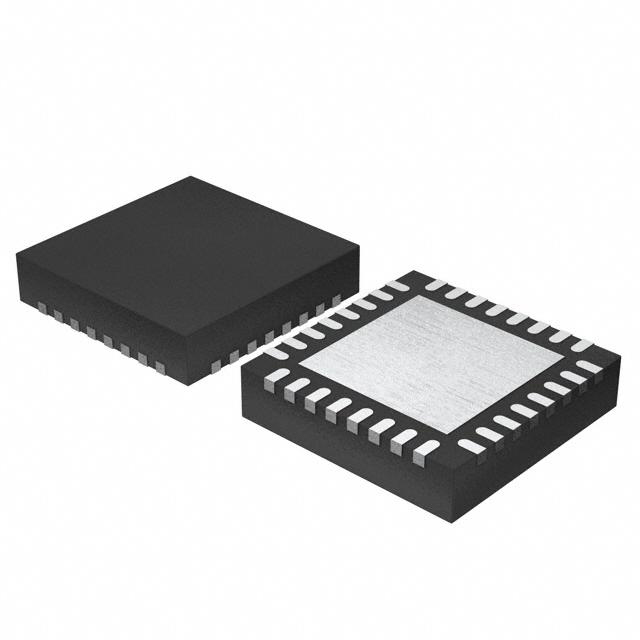

| Package / Case | 32-VFQFN Exposed Pad | |
| Surface Mount | YES | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 32Terminations | |
| ECCN Code | EAR99 | |
| Type | Stereo Audio |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| HTS Code | 8542.39.00.01 | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 1.8V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | TLV320AIC3104 | |
| Pin Count | 32 | |
| JESD-30 Code | S-PQCC-N32 | |
| Qualification Status | Not Qualified |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Interface | I2C, Serial | |
| Voltage - Supply, Analog | 2.7V~3.6V | |
| Voltage - Supply, Digital | 1.65V~1.95V | |
| Resolution (Bits) | 24 b | |
| Sigma Delta | Yes | |
| Number of ADCs / DACs | 2 / 2ADCs / DAC | |
| Dynamic Range, ADCs / DACs (db) Typ | 93 / 97 | |
| S/N Ratio, ADCs / DACs (db) Typ | 92 / 102 | |
| Length | 5mm | |
| Height Seated (Max) | 1mm | |
| Width | 5mm | |
| RoHS Status | ROHS3 Compliant |
Stereo Audio DAC
– 102 -dBA Signal-to-Noise Ratio
– 16/20/24/32-Bit Data
– Supports Sample Rates From 8 kHz to 96 kHz
– 3D/Bass/Treble/EQ/De-Emphasis Effects
– Flexible Power Saving Mode s and Performance are Available
• Stereo Audio ADC
– 92-dBA Signal-to-Noise Ratio
– Supports Sample Rates From 8 kHz to 96 kHz
– Digital Signal Processing and Noise Filtering Available During Record
• Six Audio Input Pins
– One Stereo Pair of Single-Ended Inputs
– One Stereo Pair of Fully Differential Inputs
• Six Audio Output Drivers
– Stereo Fully Differential or Single-Ended Headphone Drivers
– Fully Differential Stereo Line Outputs
• Low Power: 14 -mW Stereo 48-kHz Playback With 3.3 -V Analog Supply
• Ultralow-Power Mode with Passive Analog Bypass
• Programmable Input/Output Analog Gains
• Automatic Gain Control (AGC) for Record
• Programmable Microphone Bias Level
• Programmable PLL for Flexible Clock Generation
• I2C Control Bus
• Audio Serial Data Bus Supports I2S, Left/Right-Justified, DSP, and TDM Mode s
• Extensive Modular Power Control

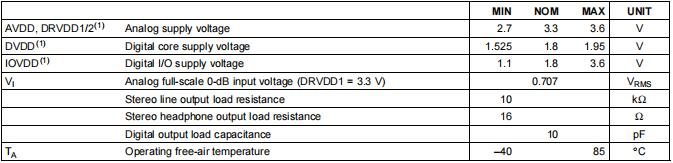

• Power Supplies:
– Analog: 2.7 V–3.6 V.
– Digital Core: 1.525 V–1.95 V A
– Digital I/O: 1.1 V–3.6 V A • Package: 5 -mm × 5 -mm 32 -Pin QFN
Digital Cameras
Smart Cellular Phones
PDAs
Portable Computing
Communication
Entertainment Applications
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and integrated circuits for electronic designers and manufacturers around the world. Based on sales volume, it is one of the top ten semiconductor companies in the world, Analog chips, and embedded processors, which account for more than 80% of the company's revenue, are the company's main focus. TI also makes calculators, microcontrollers, and multi-core processors. as well as TI digital light processing technology and education technology, As of 2016, the company had 45,000 patents worldwide.
| Height | 1mm |
| Length | 5mm |
| Thickness | 900μm |
| Width | 5mm |
Download datasheets and manufacturer documentation for TLV320AIC3104IRHBR
