The TLV431 is a three-terminal, adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 20mA.
TLV431 Programmable Reference Voltage: Specification, Pinout and Datasheet
IC VREF SHUNT ADJ SOT23 The TLV431 is a three-terminal, adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 20mA.
808
Jun 15, 2021
Elva
TLV431BFTA
150000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.31006 | $0.31 |
| 10+ | $0.29251 | $2.93 |
| 100+ | $0.27595 | $27.6 |
| 500+ | $0.26033 | $130.17 |
| 1000+ | $0.2456 | $245.6 |
Unit Price:$0.31006
Subtotal: $0.31
Quick Links
TLV431 Description
The TLV431 is a three-terminal, adjustable shunt regulator offering excellent temperature stability and output current handling capability up to 20mA. The output voltage may be set to any chosen voltage between 1.24V and 18V by selection of two external divider resistors. The TLV431 can be used as a replacement for zener diodes in many applications requiring an improvement in zener performance. The TLV431 is available in three grades with initial tolerances of 1%, 0.5%, and 0.2% for the A, B, and T grades respectively.

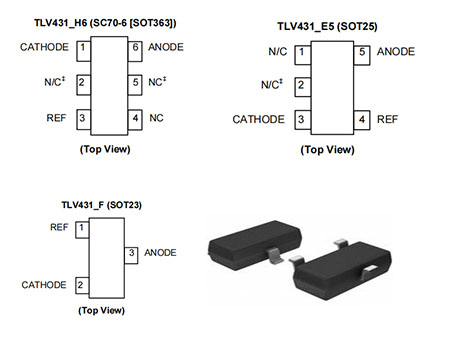

TLV431 Pinout
TLV431 Feature
• Low-Voltage Operation VREF = 1.24V
• Temperature Range -40 to +125°C
• Reference Voltage Tolerance at +25°C
§ 0.2% TLV431T
§ 0.5% TLV431B
§ 1% TLV431A
• Typical Temperature Drift
§ 4mV (0°C to +70°C)
§ 6mV (-40°C to +85°C)
§ 11mV (-40°C to +125°C)
• 80µA Minimum Cathode Current
• 0.25Ω Typical Output Impedance
• Adjustable Output Voltage VREF to 18V
• Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• An Automotive-Compliant Part is Available Under Separate
Datasheet (TLV431Q)
TLV431 Application
1.Isolated low-output voltage power supplies
2.Improve the accuracy and/or extend the range and flexibility of fixed-voltage regulators.
Specifications
Diodes Incorporated TLV431BFTA technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated TLV431BFTA.
TLV431BFTA Tech Specifications
TLV431BFTA Tech Specifications
Diodes Incorporated TLV431BFTA technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated TLV431BFTA.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 25 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Operating Temperature | -40°C~125°C TA | |
| Packaging | Tape & Reel (TR) | |
| Published | 2011 | |
| Tolerance | ±0.5% | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.95mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | TLV431 | |
| Pin Count | 3 | |
| Number of Outputs | 1Output | |
| Output Voltage | 18V | |
| Output Type | Adjustable | |
| Max Output Current | 15mA | |
| Trim/Adjustable Output | YES | |
| Analog IC - Other Type | THREE TERMINAL VOLTAGE REFERENCE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Voltage | 18V | |
| Max Input Voltage | 20V | |
| Reference Voltage | 18V | |
| Reference Type | Shunt | |
| Min Output Voltage | 1.24V | |
| Temp Coef of Voltage-Max | 151.515 ppm/°C | |
| Current - Cathode | 100μA | |
| Height | 1.02mm | |
| Length | 3.04mm | |
| Width | 1.4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
TLV431 CAD Model
Symbol
Footprint
3D Model
TLV431 Typical Characteristics
TLV431 Manufacturer
Diodes Incorporated delivers high-quality semiconductor products to the world’s leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers’ needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Datasheet PDF
Download datasheets and manufacturer documentation for Diodes Incorporated TLV431BFTA.
TLV431BFTA Documents
TLV431BFTA Documents
Download datasheets and manufacturer documentation for TLV431BFTA
Environmental Information
Diodes RoHS 3 Cert
Datasheets
TLV431
PCN Assembly/Origin
Mult Devices 11/Apr/2018
PCN Design/Specification
Datasheet/Copper Wire Update 30/Sep/2014
Frequently Asked Questions
1.What is the difference between TL431 and TLV431
The TL431 is the original standard shunt voltage reference.
The TLV431 is a lower voltage reference option of the TLV but also has some different specifications.
2.What is the difference between LMV431 and TLV431?
The LMV431 is what device was developed by the previous National Semiconductor team and is a functional equivalent to the TLV431, although the LMV431 has a higher tolerance at the cathode for high voltage. The same is true for the LM431 vs TL431, these are direct functional equivalents.
3.As circuit breakers are used for over current protection, which device is used for over voltage protection?
Transient suppressors are good for ESD protection.Use the clamping diode for signal over voltage protection.Design the circuit for over voltage protection using comparator's, reference generator along with latch circuit. I designed the over voltage protection circuit using TLV431.
FAQ
1.What is the difference between TL431 and TLV431
The TL431 is the original standard shunt voltage reference.
The TLV431 is a lower voltage reference option of the TLV but also has some different specifications.
2.What is the difference between LMV431 and TLV431?
The LMV431 is what device was developed by the previous National Semiconductor team and is a functional equivalent to the TLV431, although the LMV431 has a higher tolerance at the cathode for high voltage. The same is true for the LM431 vs TL431, these are direct functional equivalents.
3.As circuit breakers are used for over current protection, which device is used for over voltage protection?
Transient suppressors are good for ESD protection.Use the clamping diode for signal over voltage protection.Design the circuit for over voltage protection using comparator's, reference generator along with latch circuit. I designed the over voltage protection circuit using TLV431.
