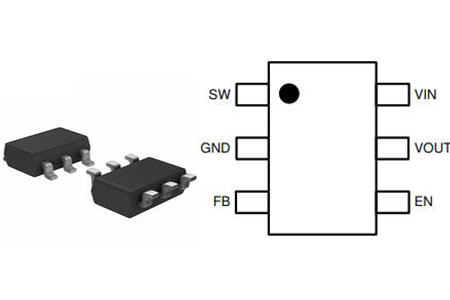

TLV61046ADBVT DC-DC Switching Boost Converter, 1 MHz, 3.3V-28V, and SOT-23-6

The theTLV61046ADBVT is a highly integrated boost converter that can be used in PMOLED panels, LCD bias supplies, and sensor modules. A 30-V power switch, an input to output isolation switch, and a rectifier diode are all included in the TLV61046ADBVT,  From the input of a Li+ battery or two alkaline batteries in series, it may produce up to 28 V.

The TLV61046ADBVT  operates with a switching frequency of 1.0 MHz. This allows the use of small external components. The TLV61046ADBVT  has an internal default 12-V output voltage setting by connecting the FB pin to the VIN pin. The TLV61046ADBVT  is available in a 6-pin 3-mm x 3-mm SOT23-6 package.

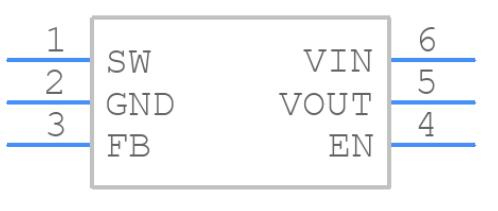

TLV61046ADBVT Symbol

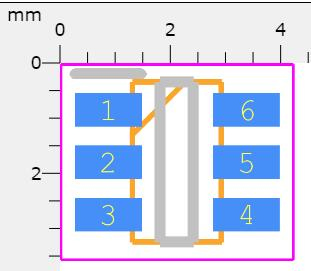

TLV61046ADBVT Footprint

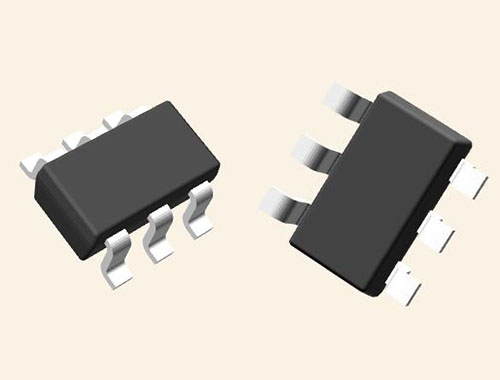

TLV61046ADBVT 3D Model

NA TLV61046ADBVT technical specifications, attributes, parameters and parts with similar specifications to NA TLV61046ADBVT.

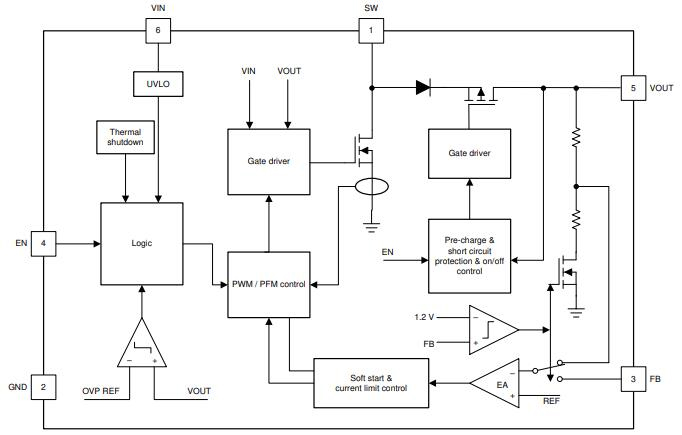

The following is the functional block diagram of TLV61046ADBVT.

TLV61046ADBVT Functional Block Diagram

• Input voltage range: 1.8 V to 5.5 V, down to 1.6 V after start-up

• Output voltage up to 28 V

• Integrated power diode and isolation switch

• 980-mA (typical) switch current

• Up to 85% efficiency at 3.6-V input and 12-V output

• ±2.5% output voltage  accuracy

• Power save operation mode  at light load

• Internal 7-ms soft-start time

• True disconnection between input and output during shutdown

• Output short circuit protection

• Output overvoltage protection

• Thermal shutdown  protection

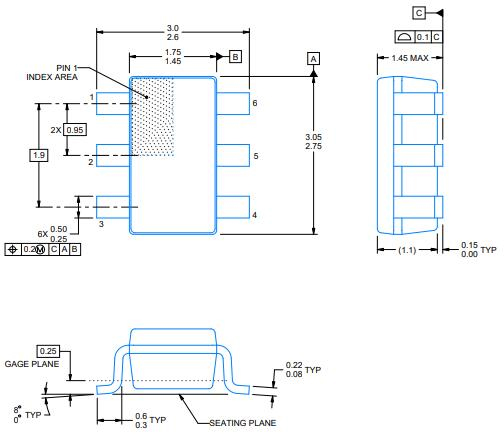

• 3-mm × 3-mm SOT23-6 package

• PMOLED power supply

• LCD panel

• Wearable devices

• Portable medical equipment

• Sensor power supply

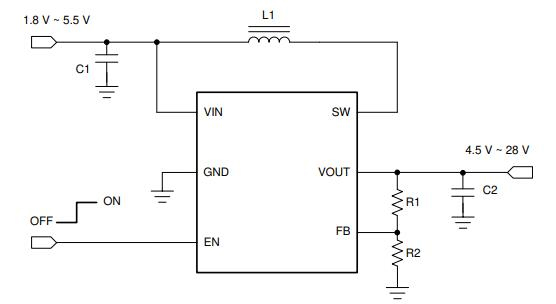

The following is the TLV61046ADBVT application circuit.

TLV61046ADBVT Application Circuit

The TLV61046A operates with a switching frequency of 1.0 MHz. This makes it possible to use small external components. By connecting the FB pin to the VIN   pin.  the TLV61046A  has an internal default 12-V output voltage setting. As a result, it only requires three external components to provide a 12-volt output voltage,  The TLV61046A  has a typical switch current limit of 980-mA. It has a 7-ms soft-start time built in to reduce inrush current. The isolation switch disconnects the output from the input while the TLV61046A  is in shutdown mode, reducing leakage current. The TLV61046A  additionally includes output short circuit, output overvoltage, and thermal shutdown protection.

TLV61046ADBVT is a boost converter with a power diode and isolation switch 1.8V to 5.5V 0.9A 28V Output 6-Pin SOT-23 T/R.

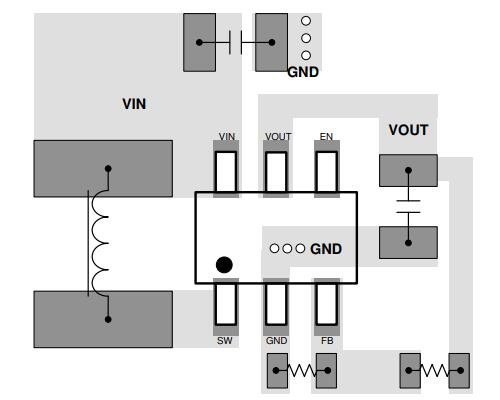

The following is the TLV61046ADBVT PCB layout.

TLV61046ADBVT PCB Layout
