TLV62085RLTR：7-VFDFN, Pinout, Datasheet, Step-Down

The TLV62085RLTR is a synchronous high-frequency step-down converter with a small solution size and higher efficiency. Common battery technologies are supported with an input voltage range of 2.5 V to 6.0 V.

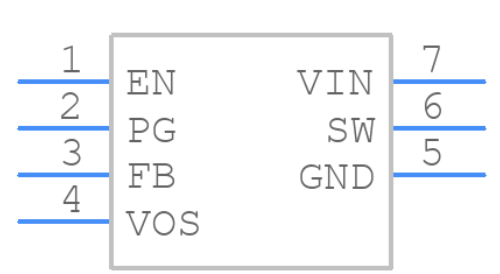

Symbol

Footprint

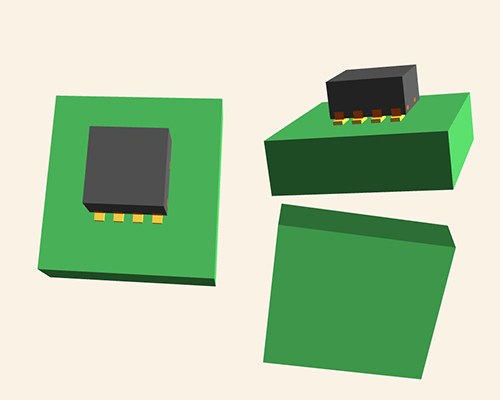

3D Model

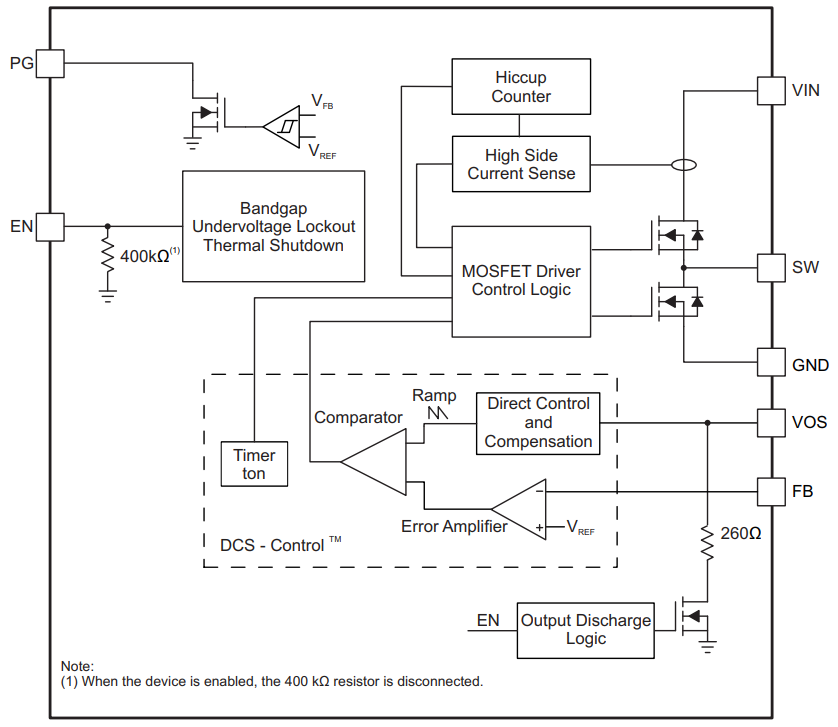

• DCS-Control™ Topology

• Up to 95% Efficiency

• 17-μA Operating Quiescent Current

• 31mΩ and 23mΩ Power MOSFET Switch

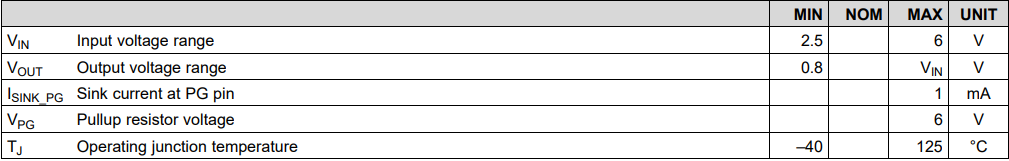

• 2.5-V to 6.0-V Input Voltage Range

• 0.8-V to VIN Adjustable Output Voltage

• Power Save Mode for Light Load Efficiency

• 100% Duty Cycle for Lowest Dropout

• Hiccup Short-Circuit Protection

• Output Discharge

• Power Good Output

• Thermal Shutdown Protection

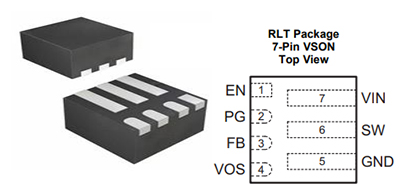

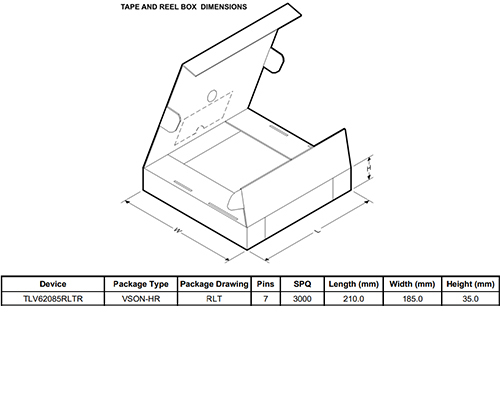

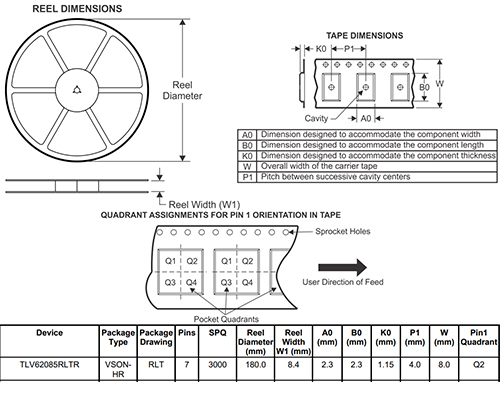

• Available in 2-mm × 2-mm VSON Package

The TLV62085 produces a good amount of power. When the output voltage exceeds 95% of the nominal voltage, the power good becomes a high impedance, and when the output voltage drops below 90% of the nominal voltage, it'll become a low impedance.

The PG pin is an open-drain output with a maximum current sink of 1 mA. A pull-up is required for the power excellent output.

Any voltage rail less than 6 V is connected to a resistor. Multiple rails can be sequenced using the PG signal by attaching it to other converters' EN pins When not in use, leave the PG pin unattached.

NA TLV62085RLTR technical specifications, attributes, parameters and parts with similar specifications to NA TLV62085RLTR.

• Battery-Powered Applications

• Point-of-Load

• Processor Supplies

• Hard Disk Drives (HDD) / Solid State Drives(SSD)
