TLV62130ARGTR: 16-VFQFN, 3A, 5V, Pinout

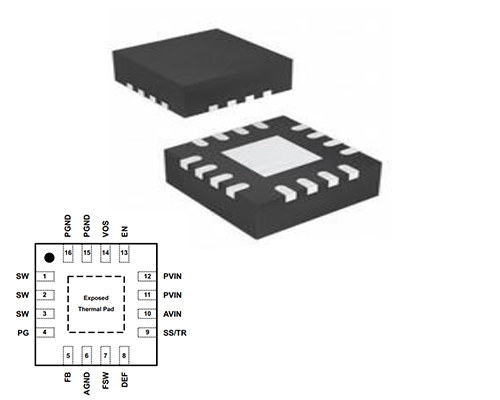

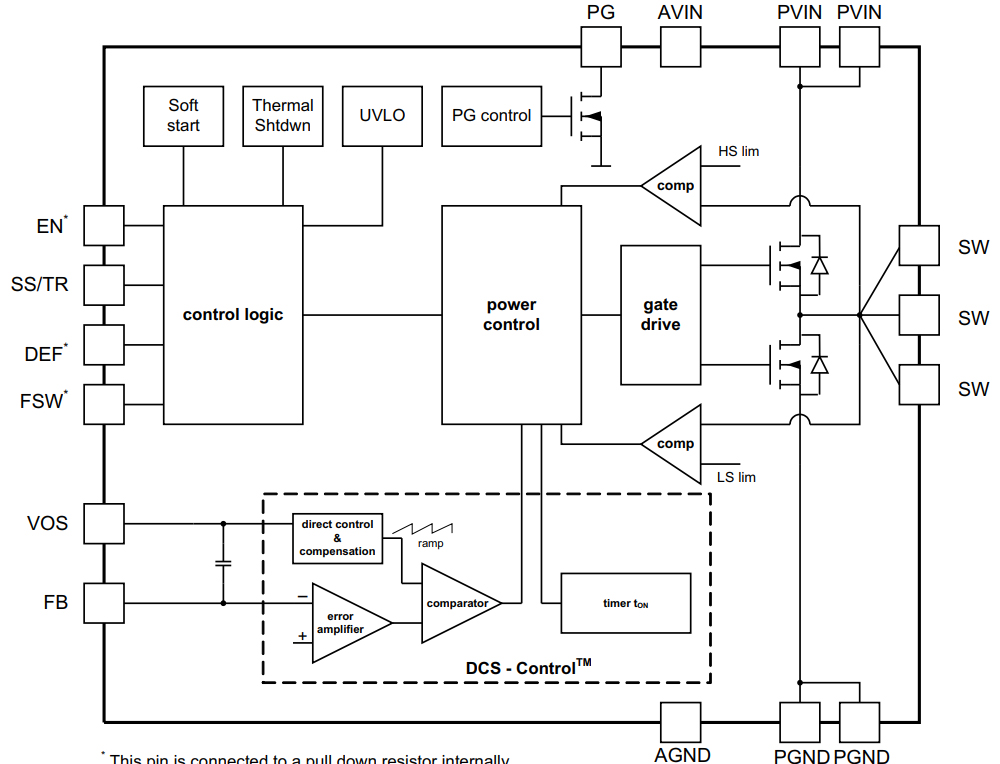

The TLV62130ARGTR synchronous switched-mode power converters use DCS-ControlTM (Direct Control with Seamless Transition into Power Save Mode), an advanced regulation topology that combines the benefits of hysteretic, voltage mode, and current mode control, as well as an AC loop directly associated with the output voltage.

This control loop immediately transmits information about output voltage changes to a rapid comparator stage.

It determines the switching frequency, which is constant under steady-state conditions, and offers immediate reaction to variations in dynamic load. A voltage feedback loop is utilized to provide accurate DC load regulation. With few external components and low ESR capacitors, the internally compensated regulation network ensures rapid and reliable operation.

Symbol

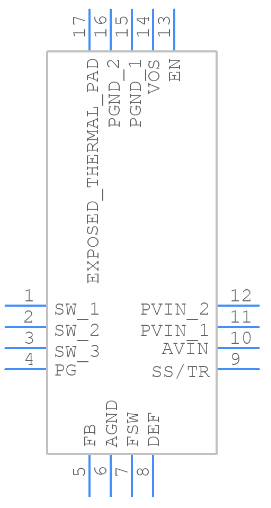

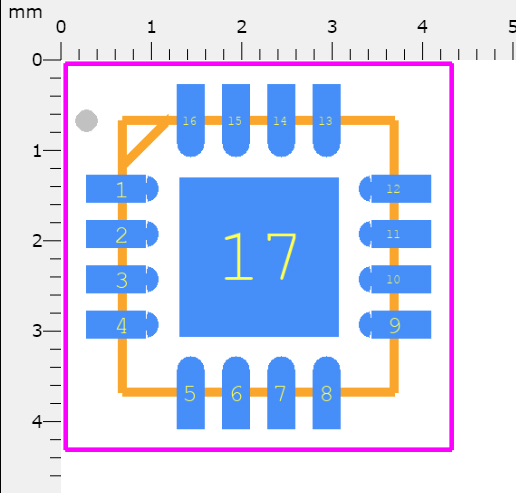

Footprint

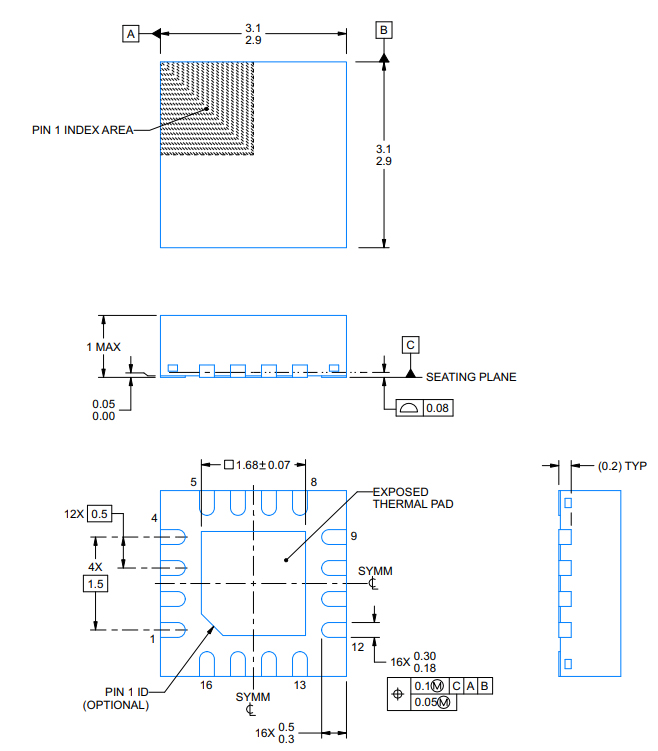

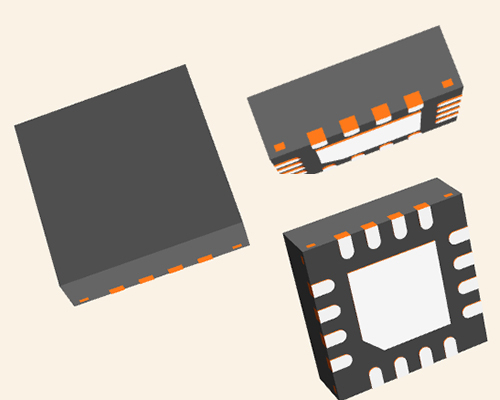

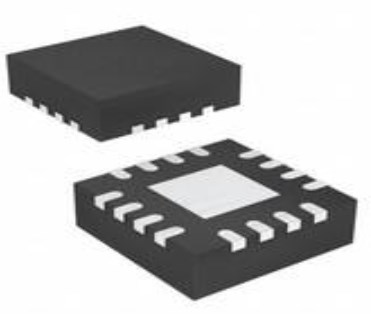

3D Model

• DCS-Control™ Topology

• Input Voltage Range: 3 V to 17 V

• Up to 3-A Output Current

• Adjustable Output Voltage From 0.9 V to 5 V

• Pin-Selectable Output Voltage (Nominal, + 5%)

• Programmable Soft Start and Tracking

• Seamless Power Save Mode Transition

• Quiescent Current of 19 µA (Typical)

• Selectable Operating Frequency

• Power Good Output

• 100% Duty Cycle Mode

• Short-Circuit Protection

• Over Temperature Protection

• For Improved Feature Set, see TPS62130

• Pin to Pin compatible with TLV62150

• Available in a 3-mm × 3-mm, VQFN-16 Package

• Create a Custom Design Using the TLV62130 With the WEBENCH® Power Designer

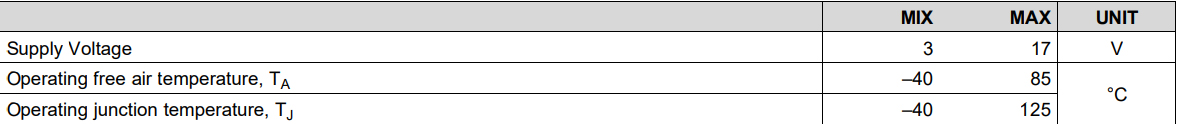

NA TLV62130ARGTR technical specifications, attributes, parameters and parts with similar specifications to NA TLV62130ARGTR.

• Standard 12-V Rail Supplies

• POL Supplies from Single or Multiple Li-Ion Batteries

• Motor Drives, Electronic Point of Sales

• Mobile PC's, Tablets, Modems, Cameras

• TV, Set-top Boxes, Audio

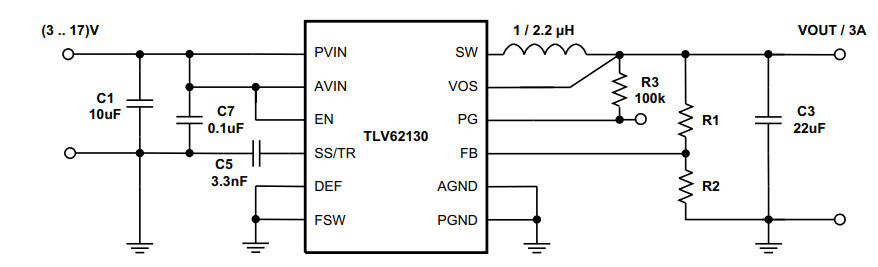

TLV62130ARGTR Typical Application Circuit
