TLV62568DRLT: Datasheet, Pinout, Step-down

The TLV62568DRLT is a high-efficiency synchronous step-down buck DC-DC converter with a small solution size. Switches with a current output of up to 1 A are included in the device. The gadget operates in pulse width modulation (PWM) mode with a 1.5-MHz switching frequency at medium to heavy loads. The device enters Power Save Mode (PSM) at a low load to maintain high efficiency across the whole load current range. The current consumption is lowered to less than 2 A when the device is turned off.

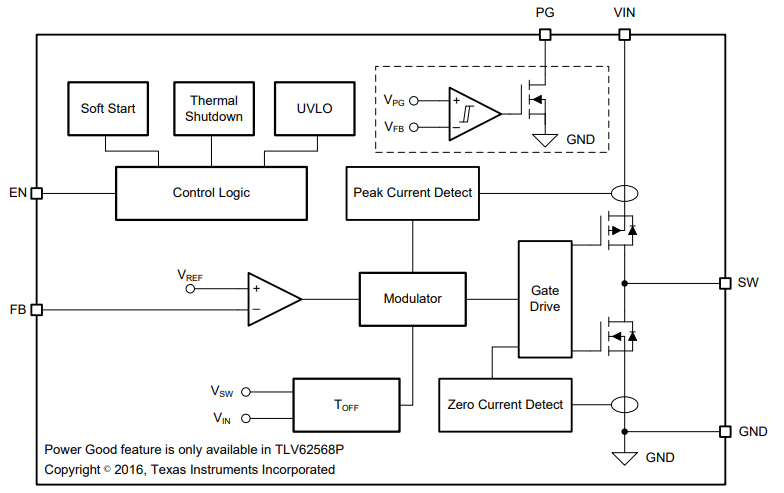

The TLV62568DRLT uses an external resistor divider to generate a variable output voltage. During startup, an inbuilt soft-start circuit reduces the inrush current. Over-current protection, thermal shutdown protection, and power good are all built-in features. SOT23 and SOT563 packages are available for the device.

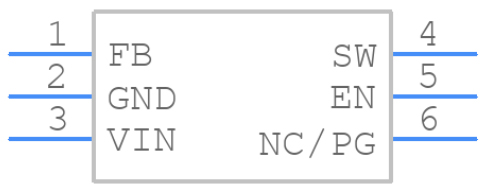

Symbol

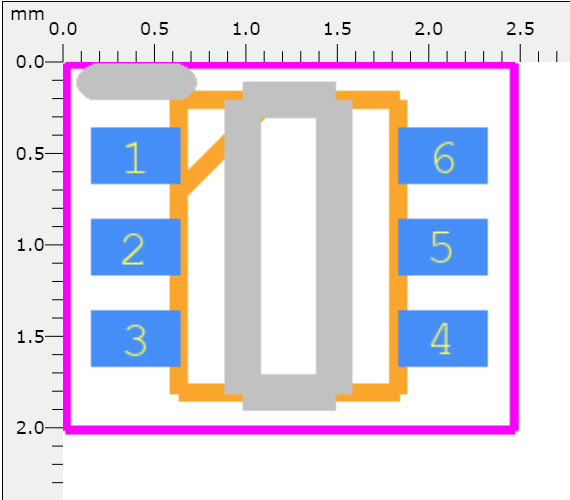

Footprint

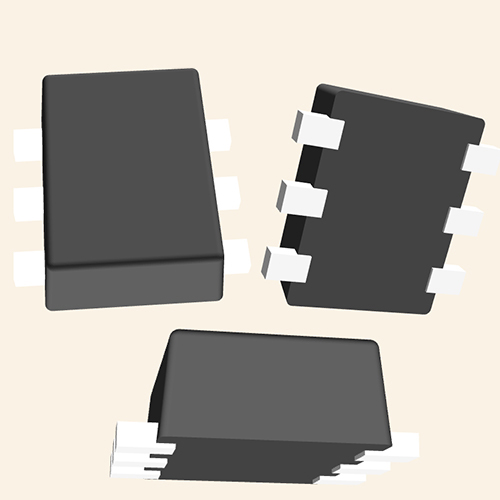

3D Model

• Up to 95% Efficiency

• Low RDS(ON) Switches 150 mΩ / 100 mΩ

• 2.5-V to 5.5-V Input Voltage Range

• Adjustable Output Voltage from 0.6 V to VIN

• Power Save Mode for Light Load Efficiency

• 100% Duty Cycle for Lowest Dropout

• 35-µA Operating Quiescent Current

• 1.5-MHz Switching Frequency

• Power Good Output

• Over Current Protection

• Internal Soft Startup

• Thermal Shutdown Protection

• Available in SOT Package

• Pin-to-Pin Compatible with TLV62569

• Create a Custom Design Using the TLV62568

With the WEBENCH® Power Designer

• General Purpose POL Supply

• Network Video Camera

• Set Top Box

• Wireless Router

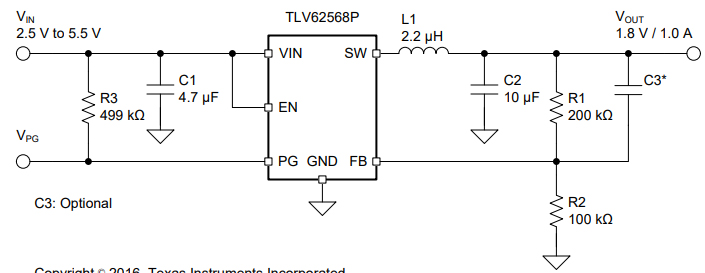

Typical Application

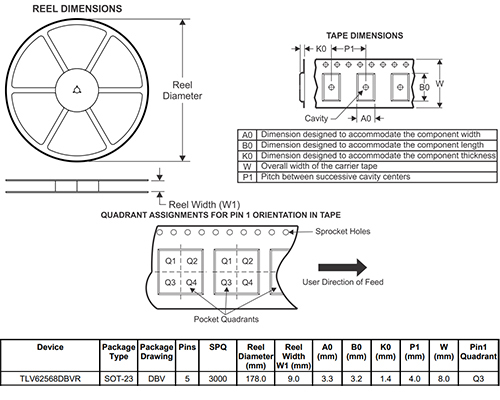

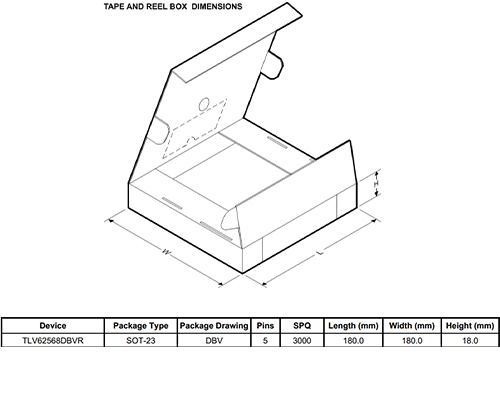

NA TLV62568DRLT technical specifications, attributes, parameters and parts with similar specifications to NA TLV62568DRLT.
