TLV70033DDCR: Low Quiescent, Pinout, Datasheet

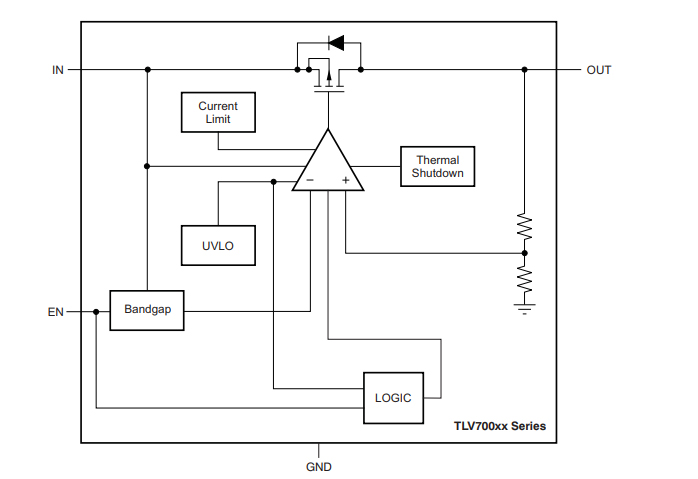

The low-dropout (LDO) linear 234regulators of the TLV70033DDCR series have a low quiescent current and outstanding line and load transient performance. These LDOs are intended for low-power applications. A precision bandgap and error amplifier give total accuracy of 2%. This class of devices is appropriate for most battery-powered handheld equipment due to its low output noise, very high power-supply rejection ratio (PSRR), and low dropout voltage. For safety, all device models have a thermal shutdown and a current limit.

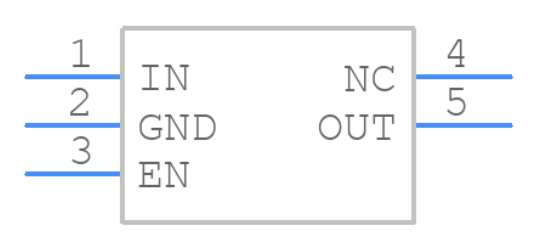

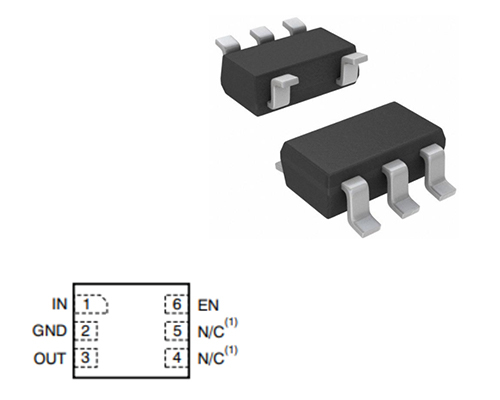

Symbol

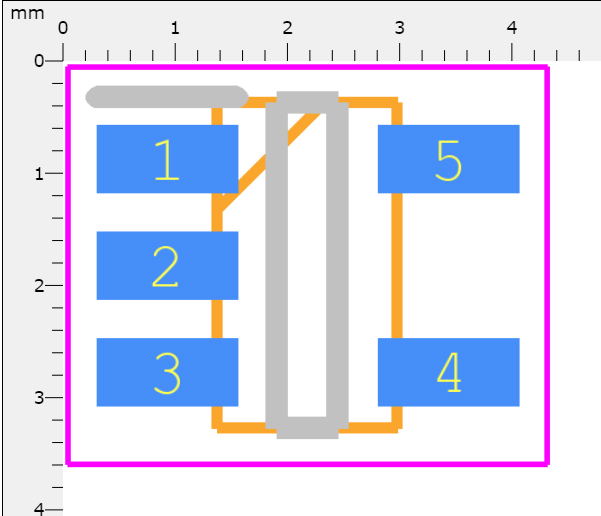

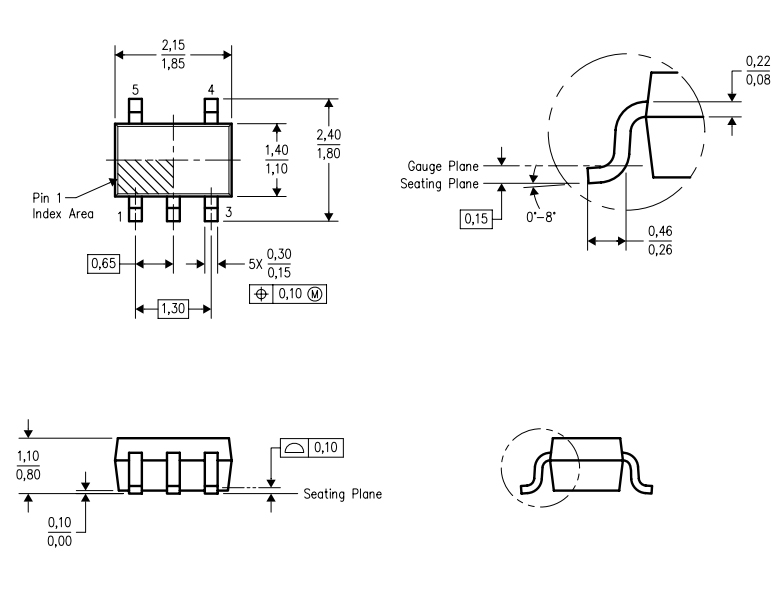

Footprint

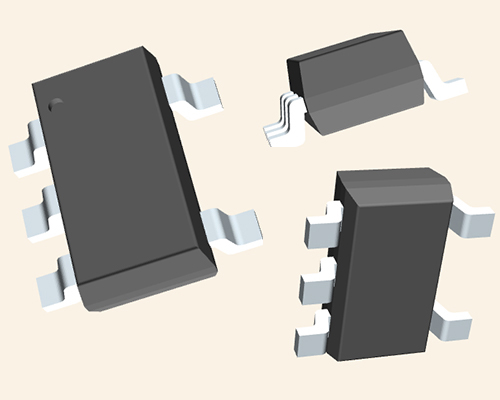

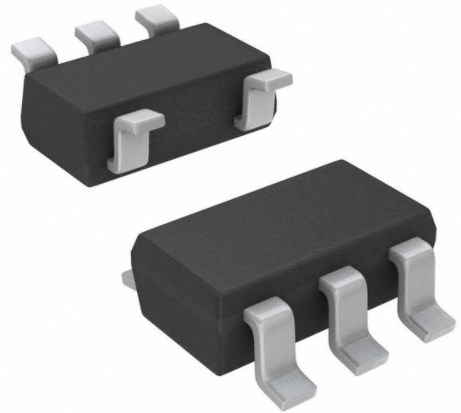

3D Model

• Very Low Dropout:

– 43 mV at IOUT = 50 mA, VOUT = 2.8 V

– 85 mV at IOUT = 100 mA, VOUT = 2.8 V

– 175 mV at IOUT = 200 mA, VOUT = 2.35 V

• 2% Accuracy

• Low IQ: 31 μA

• Available in Fixed-Output Voltages from 1.2 V to 4.8 V

• High PSRR: 68 dB at 1 kHz

• Stable with Effective Capacitance of 0.1 μF

• Thermal Shutdown and Overcurrent Protection

• Available in 1,5-mm × 1,5-mm SON-6, SOT23-5, and SC-70 Packages

• Wireless Handsets

• Smart Phones, PDAs

• MP3 Players

• ZigBee® Networks

• Bluetooth® Devices
• Li-Ion Operated Handheld Products

• WLAN and Other PC Add-on Cards

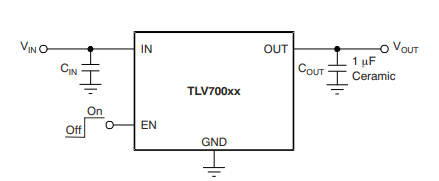

TLV70033DDCR Typical Application Circuit
