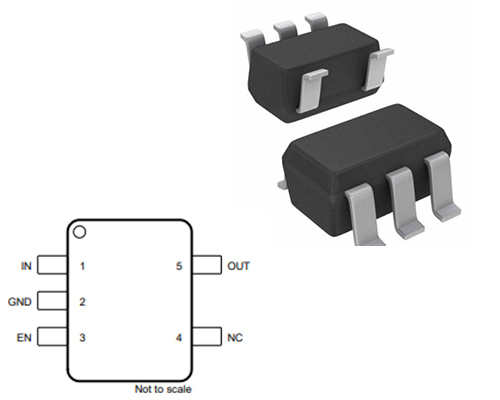

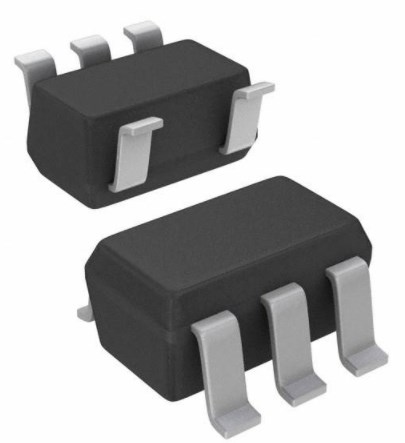

TLV75533PDBVR: Low-Dropout Regulator, Pinout, Circuit

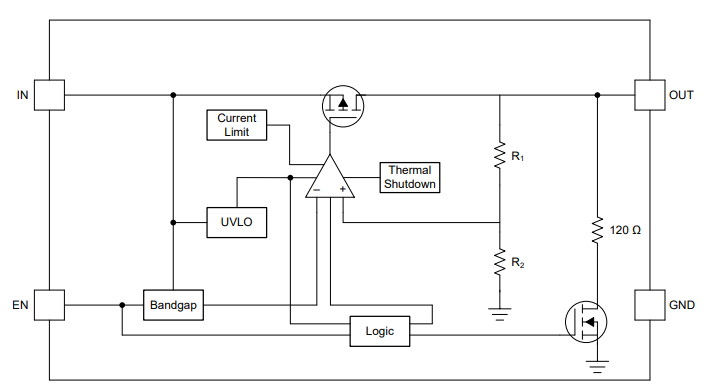

The TLV755P is a low-dropout regulator (LDO) with an ultra-small quiescent current and good line and load transient performance. The TLV755P is designed for a wide range of applications, with an input voltage range of 1.45 V to 5.5 V. The device is available in fixed output voltages ranging from 0.6 V to 5 V to support the lower core voltages of current microcontrollers, reducing cost and solution size (MCUs). Furthermore, the TLV755P has a low IQ and enable functionality to reduce standby power.

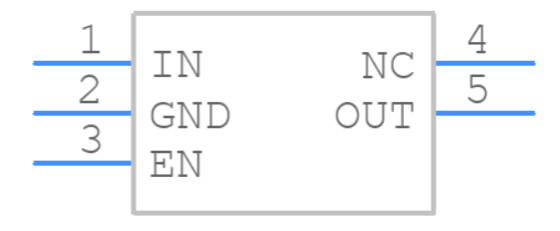

Symbol

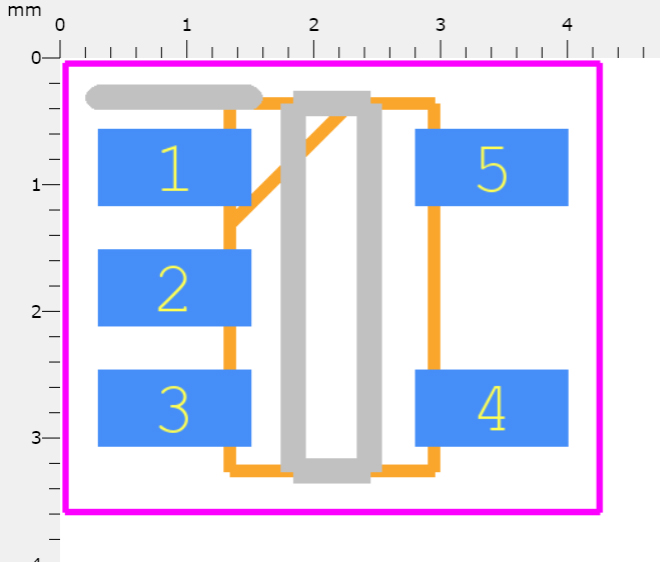

Footprint

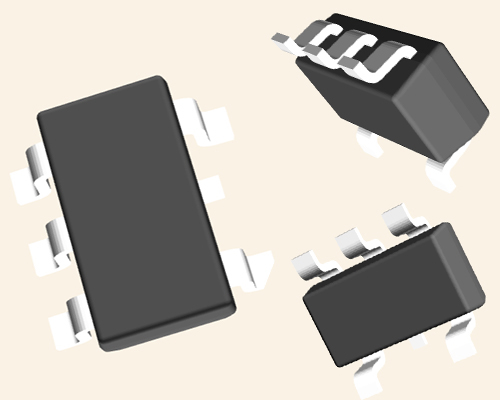

3D Model

• Input Voltage Range: 1.45 V to 5.5 V

• Low IQ: 25 µA (Typical)

• Low Dropout:

– 238 mV (Maximum) at 500 mA (3.3 VOUT)

• Output Accuracy: 1% (Maximum at 85°C)

• Built-In Soft-Start With Monotonic VOUT Rise

• Foldback Current Limit

• Active Output Discharge

• High PSRR: 46 dB at 100 kHz

• Stable With a 1-µF Ceramic Output Capacitor

• Packages:

– 2.9-mm × 1.6-mm SOT-23-5

– 1-mm x 1-mm X2SON-4

– 2 mm × 2 mm WSON-6

• Set-Top Boxes, TV, and Gaming Consoles

• Portable and Battery-Powered Equipment

• Desktop, Notebooks, and Ultrabooks

• Tablets and Remote Controls

• White Goods and Appliances

• Grid Infrastructure and Protection Relays

• Camera Modules and Image Sensors

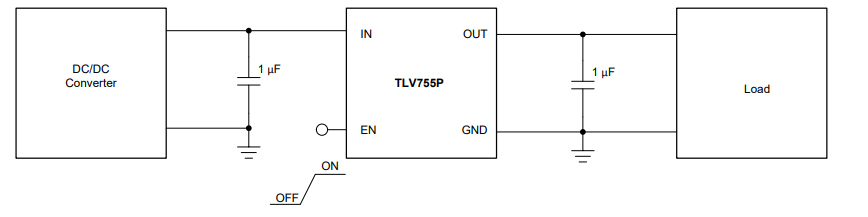

TLV75533PDBVR Typical Application Circuit
