TMC2208 guide - Stepper driver upgrades part 2
IC STEPPER MOTOR DRIVER 28QFN
The TMC2208 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. This blog covers pinout, datasheet, circuit and other information about TMC2208.
TMC2208-LA-T
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $3.67436 | $3.67 |
| 10+ | $3.46638 | $34.66 |
| 100+ | $3.27017 | $327.02 |
| 500+ | $3.08506 | $1542.53 |
| 1000+ | $2.91044 | $2910.44 |

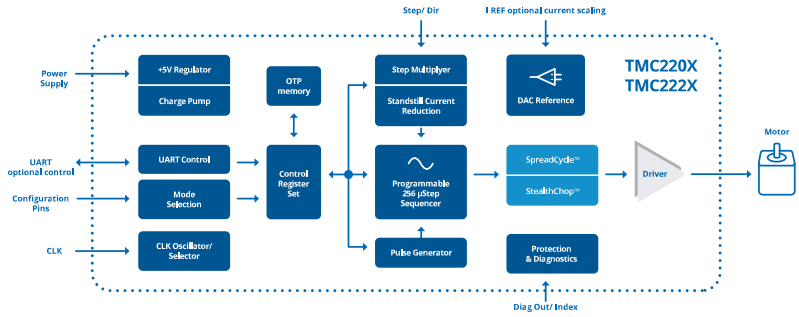

The TMC2208 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop2™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2208 is capable of driving up to 2A of current from each output (with proper heatsinking). TMC2208 is designed for a supply voltage of 5...36V. The device has a step and direction interface and can be configured with digital pins.
Symbol

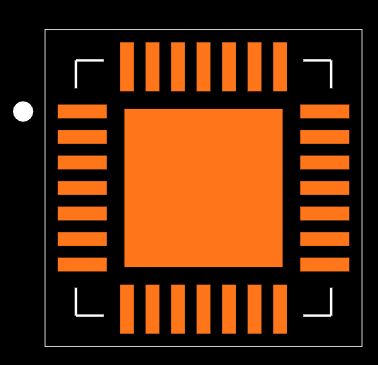

Footprint
Trinamic Motion Control GmbH TMC2208-LA-T technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMC2208-LA-T.
Trinamic Motion Control GmbH TMC2208-LA-T technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMC2208-LA-T.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 28-VFQFN Exposed Pad | |
| Surface Mount | YES | |
| Manufacturer Package Identifier | TMC2208-LA-T | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2016 | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 28Terminations | |
| Terminal Finish | Matte Tin (Sn) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Applications | General Purpose | |
| Additional Feature | ALSO REQUIRES 3.3V TO 5.25V IO SUPPLY VOLTAGE | |
| Max Power Dissipation | 2.5W | |
| Voltage - Supply | 5.5V~36V | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 24V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| JESD-30 Code | S-XQCC-N28 | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Number of Outputs | 1Output | |
| Output Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage-Max (Vsup) | 36V | |
| Interface | Logic, UART | |
| Output Configuration | Half Bridge (4) | |
| Voltage - Load | 5.5V~36V | |
| Max Junction Temperature (Tj) | 125°C | |
| Motor Type | Stepper | |
| Motor Type - Stepper | Bipolar | |
| Step Resolution | 1 ~ 1/256 | |
| Height | 900μm | |
| Length | 5mm | |
| Width | 5mm | |
| RoHS Status | ROHS3 Compliant |
2-phase stepper motors up to 2A coil current (peak)
STEP/DIR Interface with 2, 4, 8, 16 or 32 microstep pin setting
Smooth Running 256 microsteps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
SpreadCycle™ highly dynamic motor control chopper
Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)
Voltage Range 4.75… 36V DC
Automatic Standby current reduction (option)
Internal Sense Resistor option (no sense resistors required)
Passive Braking and Freewheeling
Single Wire UART & OTP for advanced configuration options
Integrated Pulse Generator for standalone motion
Full Protection & Diagnostics
Choice of QFN and wettable QFN packages for best fit
Compatible Design Upgrade
3D Printers
Printers, POS
Office and home automation
Textile, Sewing Machines
CCTV, Security
ATM, Cash recycler
HVAC
TRINAMIC Motion Control GmbH provides integrated circuitsand modules for motor and motion control to customers all over the world, most of them leaders in their industry. TRINAMIC products are used in leading-edge industries such as biotechnology, lab automation, semiconductor handling equipment, CCTV, factory automation, and control all kinds of embedded motion control systems.
Download datasheets and manufacturer documentation for Trinamic Motion Control GmbH TMC2208-LA-T.
Download datasheets and manufacturer documentation for TMC2208-LA-T
