The TMC5160 breakout board is a development board with the dedicated TMC5160 chip. This article mainly introduces pinout, datasheet, features and other details about TMC5160.
TMC5160 Breakout Boards: Pinout, Datasheet and Schematic
BREAKOUTBOARD WITH TMC5160 The TMC5160 breakout board is a development board with the dedicated TMC5160 chip.
1288
Jul 10, 2021
Nora Bruno
TMC5160-BOB
123In Stock
Min.: 1 Mult.: 1
Quick Links
TMC5160 Description

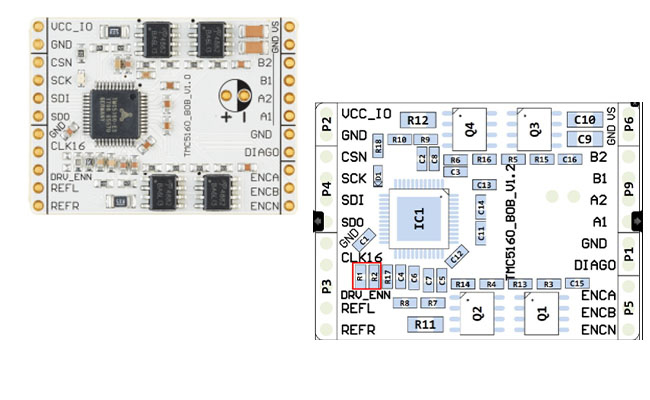

The TMC5160 breakout board is a development board with the dedicated TMC5160 chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
TMC5160 Pinout
Specifications
Trinamic Motion Control GmbH TMC5160-BOB technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMC5160-BOB.
TMC5160-BOB Tech Specifications
TMC5160-BOB Tech Specifications
Trinamic Motion Control GmbH TMC5160-BOB technical specifications, attributes, parameters and parts with similar specifications to Trinamic Motion Control GmbH TMC5160-BOB.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 8 Weeks | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Type | Power Management |
| Product Attribute | Attribute Value | |
|---|---|---|
| Function | Motor Controller/Driver, Stepper | |
| Utilized IC / Part | TMC5160 | |
| Supplied Contents | Board(s) | |
| Primary Attributes | Motors (Stepper) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Secondary Attributes | SPI Interface | |
| RoHS Status | ROHS3 Compliant |
TMC5160 Schematics
TMC5160 Features
-
TMC5160-TA stepper controller
-
Supply voltage 9-36V (limited by the MOSFETs)
-
Iphase,RMS 2.8A continuous / 3.1A peak
-
Configuration & Control via SPI
-
S/D mode selectable via solder option
-
Use with optional lowESR ELCO, ca. 150uF
-
Board width 1.5", board height 1.1"
-
2x11 pin 0.1" header rows for pins/connectors
-
Link to additional information and IC data sheet
-
Link to evaluation kit
TMC5160 Applications
-
Robots and industrial drives
-
Textile and sewing machine
-
Packaging machinery
-
Factory and laboratory automation
-
High-speed 3D printer
-
Liquid handling
-
Medical
-
Office automation
-
Cable closed-circuit television
-
Automated teller machines, cash recycling
-
Pumps and valves
TMC5160 Circuit
TMC5160 Manufacturer
TRINAMIC Motion Control GmbH provides integrated circuits and modules for motor and motion control to customers all over the world, most of them leaders in their industry. TRINAMIC products are used in leading-edge industries such as biotechnology, lab automation, semiconductor handling equipment, CCTV, factory automation, and control all kinds of embedded motion control systems.
