TEXAS INSTRUMENTS - TMP100NA/250 . - Temperature Sensor IC, Digital, ± 0.5°C, -55 °C, +125 °C, SOT-23, 6 Pins
284
Jul 4, 2021
Rose Jenny
TEXAS INSTRUMENTS - TMP100NA/250 . - Temperature Sensor IC, Digital, ± 0.5°C, -55 °C, 125 °C, SOT-23, 6 Pins
TMP100 and TMP101 are digital temperature sensors manufactured by Texas Instruments. This article will compare TMP100 with TMP101 in different angles.
TMP100NA/250
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.73105 | $0.73 |
| 10+ | $0.68967 | $6.9 |
| 100+ | $0.65063 | $65.06 |
| 500+ | $0.6138 | $306.9 |
| 1000+ | $0.57906 | $579.06 |

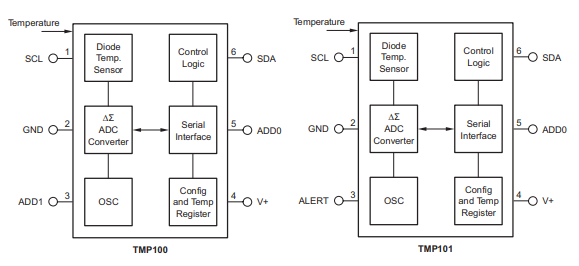

The TMP100 and TMP101 devices are digital temperature sensors ideal for NTC and PTC Interface Compatibility thermistor replacement. The devices offer a typical accuracy of ±1°C without requiring calibration or external component signal conditioning. IC temperature sensors are highly linear and do not require complex calculations or look-up tables to derive the temperature. The on-chip 12-bit ADC offers resolutions down to 0.0625°C. The devices are available in 6-Pin SOT-23 Package.
The TMP100 and TMP101 devices feature SMBus, Two-Wire, and I2C interface compatibility. The and an TMP100 device allows up to eight devices on one bus. The TMP101 device offers SMBus Alert function with up to three devices per bus.
The TMP100 and TMP101 devices are ideal for 2 Applications extended temperature measurement in a variety of communication, computer, consumer, environmental, industrial, and instrumentation applications.
The TMP100 and TMP101 devices are specified for operation over a temperature range of −55°C to +125°C.
.jpg)

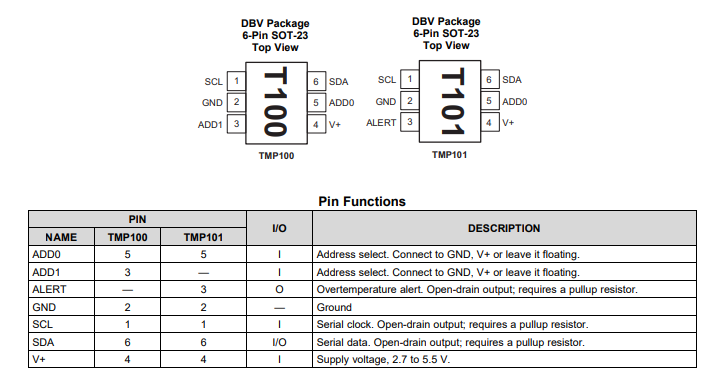

• Digital Output: SMBus™ Two-Wire™, and I2C Interface Compatibility
• Resolution: 9 to 12 Bits, User-Selectable
accuracy of ±1°C without requiring calibration or
• Accuracy:
– ±1°C (Typical) from –55°C to +125°C
– ±2°C (Maximum) from –55°C to +125°C
• Low Quiescent Current: 45-μA, 0.1-μA Standby
• Wide Supply Range: 2.7 V to 5.5 V
• TMP100 Features Two Address Pins
• TMP101 Features One Address Pin
• 6-Pin SOT-23 Package
Texas Instruments TMP100NA/250 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TMP100NA/250.
Texas Instruments TMP100NA/250 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TMP100NA/250.

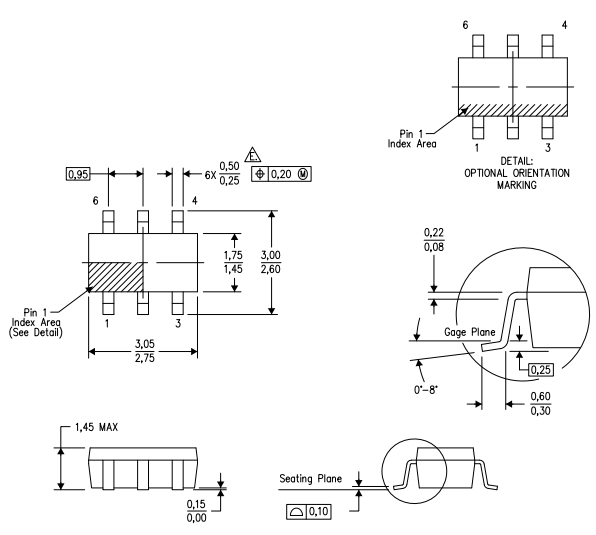

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-6 | |
| Number of Pins | 6Pins | |
| Test Conditions | -25°C ~ 85°C (-55°C ~ 125°C) | |
| Operating Temperature | -55°C~125°C | |
| Packaging | Cut Tape (CT) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 6Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Additional Feature | SEATED HG-MAX | |
| HTS Code | 8542.39.00.01 | |
| Voltage - Supply | 2.7V~5.5V | |
| Base Part Number | TMP100 | |
| Output Type | I2C/SMBus | |
| Power Supplies | 3/5V | |
| Interface | 2-Wire, I2C, SMBus | |
| Operating Supply Current | 75μA | |
| Nominal Supply Current | 150μA | |
| Output Current | 4mA | |
| Number of Bits | 12Bits | |
| Quiescent Current | 45μA | |
| Resolution | 11 b | |
| Sensor Type | Digital, Local | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL | |
| Max Supply Voltage (DC) | 5.5V | |
| Min Supply Voltage (DC) | 2.7V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Housing | PLASTIC | |
| Max Junction Temperature (Tj) | 150°C | |
| Ambient Temperature Range High | 125°C | |
| Accuracy - Highest (Lowest) | ±2°C (±3°C) | |
| Sensing Temperature - Local | -55°C~125°C | |
| Accuracy-Max | 2 Cel | |
| Features | One-Shot, Output Switch, Programmable Resolution, Shutdown Mode, Standby Mode | |
| Height | 1.45mm | |
| Length | 2.9mm | |
| Width | 1.6mm | |
| Thickness | 1.2mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
.jpg)

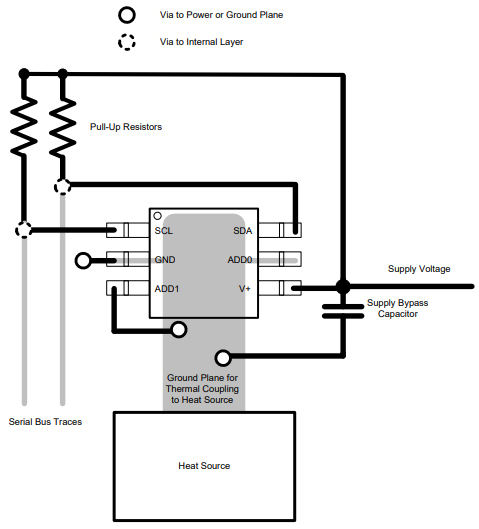

Layout Example of TMP100

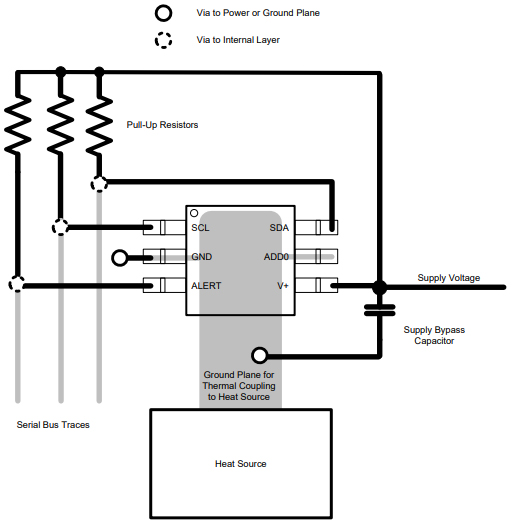

Layout Example of TMP101

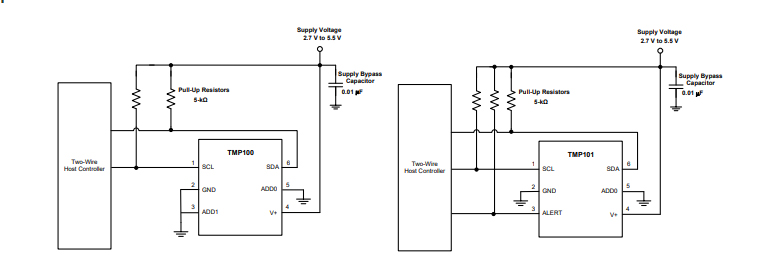

• Power-Supply Temperature Monitoring
• Computer Peripheral Thermal Protection
• Notebook Computers
• Cell Phones
• Battery Management
• Office Machines
• Thermostat Controls
• Environmental Monitoring and HVAC
• Electromechanical Device Temperature
Texas Instruments (TI) is an American technology company headquartered in Dallas, Texas, which designs and manufactures semiconductors and various integrated circuits, and sells them to electronic designers and manufacturers worldwide. It is one of the top 10 semiconductor companies in global sales. The company focuses on the development of analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and educational technology products, including calculators, microcontrollers and multi-core processors. As of 2016, the company has 45,000 patents worldwide.
Download datasheets and manufacturer documentation for Texas Instruments TMP100NA/250.
Download datasheets and manufacturer documentation for TMP100NA/250
