Temp Sensor Analog(Voltage) Serial (2-Wire) 3-Pin TO-92 Tray
TMP36 is a temperature sensor chip which generates an analog voltage at the output which is linearly proportional to the Celsius temperature. This article mainly covers pinot, datasheet, applications, features and other details about TMP36.
TMP36GT9
The TMP36 is a low voltage, precision centigrade temperature sensor. It provides a voltage output that is linearly proportional to the Celsius (centigrade) temperature. The TMP36 do not require any external calibration to provide typical accuracies of ±1°C at +25°C and ±2°C over the −40°C to +125°C temperature range.
Symbol
Footprint
Analog Devices Inc. TMP36GT9 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. TMP36GT9.
Analog Devices Inc. TMP36GT9 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. TMP36GT9.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Through Hole | |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) | |
| Surface Mount | NO | |
| Number of Pins | 3Pins | |
| Packaging | Tube | |
| JESD-609 Code | e0 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Temperature Coefficient | POSITIVE ppm/°C | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -40°C | |
| Base Part Number | TMP36 | |
| Pin Count | 3 | |
| Interface | Analog | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 2.7V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Termination Type | SOLDER | |
| Operating Supply Current | 50μA | |
| Nominal Supply Current | 50μA | |
| Linearity | 0.5 Cel | |
| Output Voltage-Max | 2V | |
| Output Voltage-Min | 0.1V | |
| Housing | PLASTIC | |
| Accuracy-Max | 4 Cel | |
| Radiation Hardening | No | |
| RoHS Status | Non-RoHS Compliant | |
| Lead Free | Contains Lead |
Low voltage operation (2.7 V to 5.5 V)
Calibrated directly in °C
10 mV/°C scale factor (20 mV/°C on TMP37)
±2°C accuracy over temperature (typ)
±0.5°C linearity (typ)
Stable with large capacitive loads
Specified −40°C to +125°C, operation to +150°C
Less than 50 µA quiescent current
Shutdown current 0.5 µA max
Low self-heating
Qualified for automotive applications
LM35, LM45, MCP9700, MCP9700A, TC1046, TC1047, MCP9701, MCP9701A, DHT11
Environmental control systems
Thermal protection
Industrial process control
Fire alarms
Power system monitors
CPU thermal management
TMP36 IC is mainly used for thermostat and temperature measurement applications. It has low output impedance and produces linear output. It does not require external calibration, so you do not need any external components. These devices can handle temperature ranges from -40°C to 150°C. The chip has all these features and is suitable for various temperature measurement applications. These devices provide stable operation under capacitive loads and drive 10,000 pF loads without oscillation.

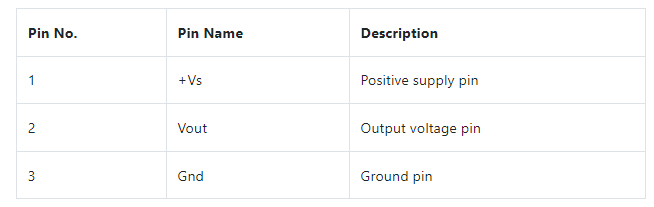

Simply connect the left pin to power (2.7-5.5V) and the right pin to ground. Then the middle pin will have an analog voltage that is directly proportional (linear) to the temperature. The analog voltage is independent of the power supply.
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Download datasheets and manufacturer documentation for Analog Devices Inc. TMP36GT9.
Download datasheets and manufacturer documentation for TMP36GT9
