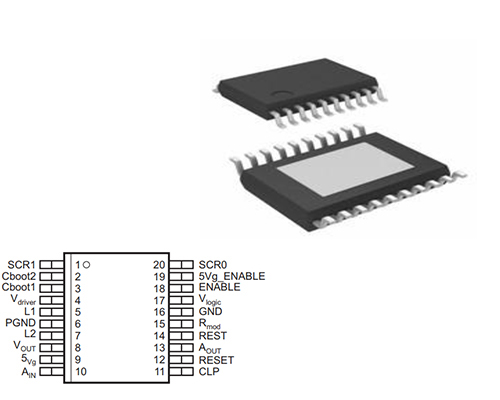

TPIC74100QPWPRQ1: 5-V, Pinout, LC, CAD Model

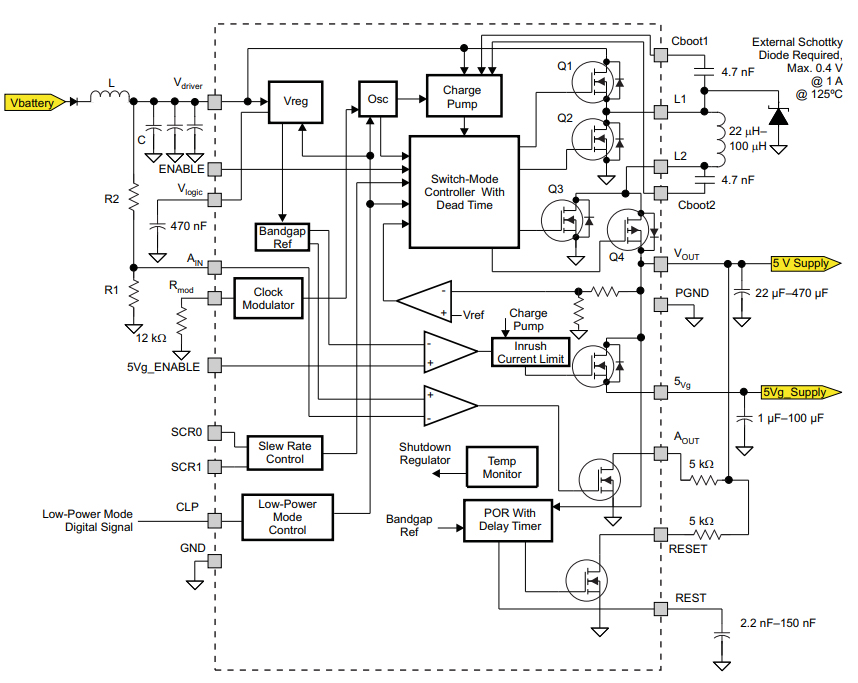

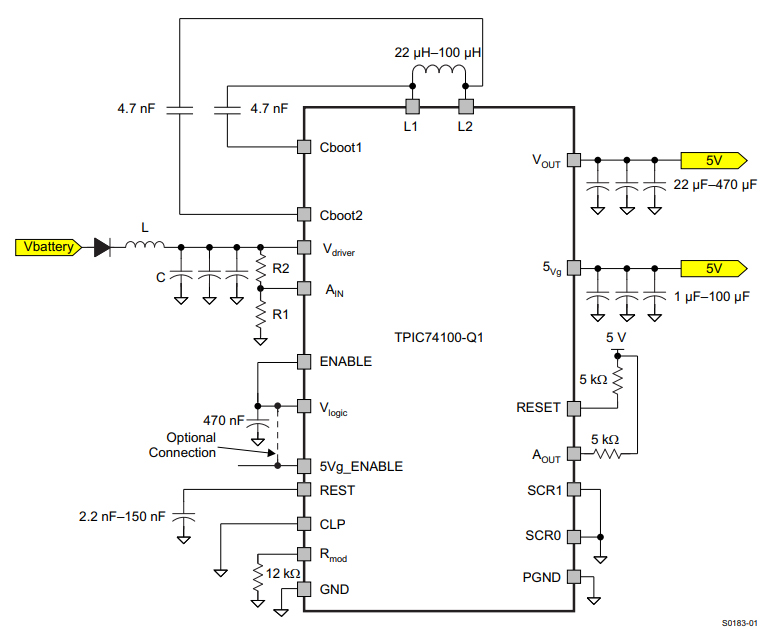

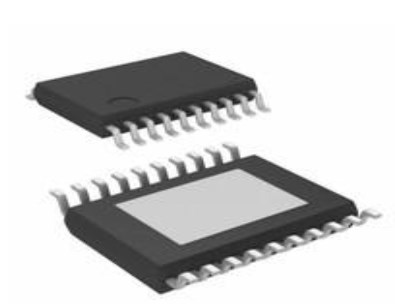

The TPIC74100QPWPRQ1 is a voltage-mode switch-mode regulator containing integrated switches. The gadget regulates the output to 5 V 3% for a large input-voltage range using external components (LC combo).

 When the 5-V output rail is outside of the specified tolerance, the TPIC74100QPWPRQ1 has a reset function that detects and indicates it. An external timing capacitor on the REST pin can be used to program the reset delay. When the input supply rail Vdriver falls below a prescaled preset value, an alert (AOUT) feature is activated (set by the AIN pin).

To reduce EMI, the TPIC74100QPWPRQ1 utilizes a frequency-modulation technique. The clock modulator allows the switching frequency to be modulated in order to reduce interference energy in the frequency band.

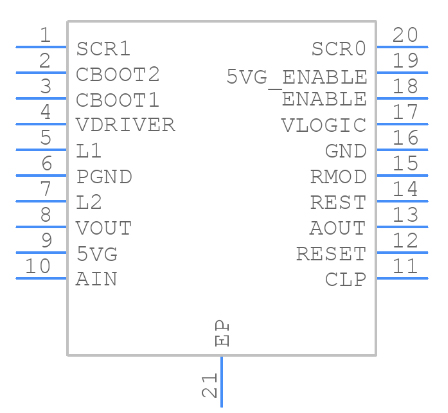

Symbol

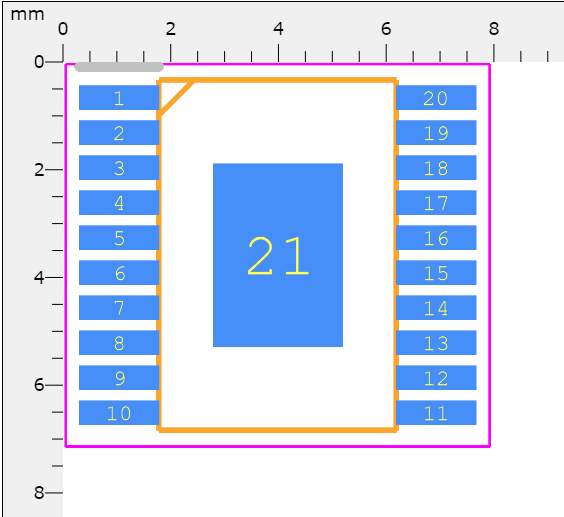

Footprint

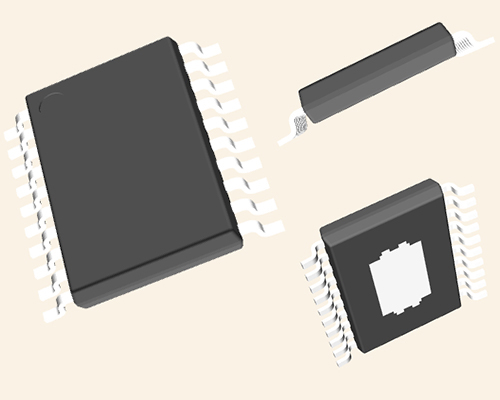

3D Model

– Device HBM ESD Classification Level 1B for pin 7 (L2), pin 8 (VOUT), pin 9 (5Vg)

– Device HBM ESD Classification 2 for pins 1–6 and 10–20

– Device CDM ESD Classification Level C4B

• Switch-Mode Regulator

– 5 V ±2%, Normal Mode

– 5 V ±3%, Low-Power or Crossover Mode

• Switching Frequency, 440 kHz (typical)

• Input Operating Range, 1.5 V to 40 V, (Vdriver)

– 1-A Load-Current Capability

– 200-mA Load-Current Capability Down to 2-V Input (Vdriver)

– 120-mA Load-Current Capability Down to the 1.5-V Input (Vdriver)

• Enable Function

• Low-Power Operation Mode

• Switched 5-V Regulated Output on 5Vg With Current Limit

• Programmable Slew Rate and Frequency Modulation for EMI Consideration

• Reset Function With Deglitch Timer and Programmable Delay

• Alarm Function for Undervoltage Detection and Indication

• Thermally Enhanced Package for Efficient Heat Management

NA TPIC74100QPWPRQ1 technical specifications, attributes, parameters and parts with similar specifications to NA TPIC74100QPWPRQ1.

• Automotive Infotainment & Cluster

• Body Electronics
