TPL5110: From Soldering, Datasheet and Breadboard to Oscilloscope
IC TIMER W/WATCHDOG 6-SOT
The TPL5110 Nano Timer is a low power timer with an integrated MOSFET driver ideal for power gating in duty cycled or battery powered applications.
TPL5110DDCT Programmable Timer: Pinout, Layout, Datasheet
IC TIMER W/WATCHDOG 6-SOT The TPL5110 Nano Timer is a low power timer with an integrated MOSFET driver ideal for power gating in duty cycled or battery powered applications.
306
Mar 4, 2021
Yedda
TPL5110DDCT
6230In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.54217 | $1.54 |
| 10+ | $1.45488 | $14.55 |
| 100+ | $1.37253 | $137.25 |
| 500+ | $1.29484 | $647.42 |
| 1000+ | $1.22154 | $1221.54 |
Unit Price:$1.54217
Subtotal: $1.54
Quick Links

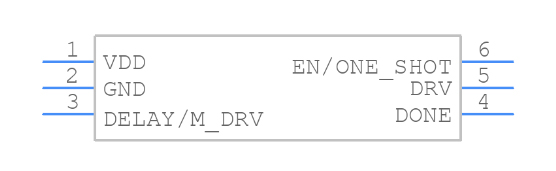

TPL5110DDCT Pinout
TPL5110DDCT CAD Model
Symbol

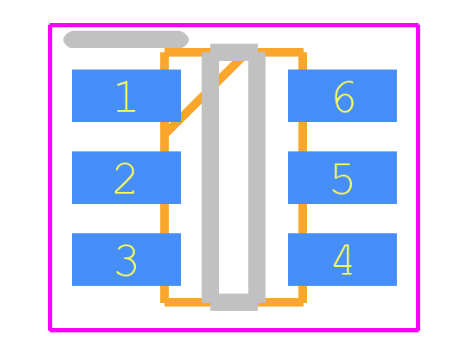

Footprint
3D Model
TPL5110DDCT Features
•Supply voltage from 1.8V to 5.5V
•Current consumption at 2.5V 35nA (typical)
•Selectable time intervals 100ms to 7200s
•Timer accuracy 1% (typical)
•Resistor selectable time interval
•Manual MOSFET time interval
•One-shot feature
TPL5110DDCT Advantages
Consuming only 35nA, the TPL5110 can enable the power supply line and drastically reduce the overall system stand-by-current during sleep time. Such power savings enable the use of significantly smaller batteries making them well suited for energy harvesting or wireless sensor applications. The TPL5110 provides selectable timing intervals from 100ms to 7200s and is designed for power gating applications. In addition, the TPL5110 has a unique One-shot feature where the timer will only power the MOSFET for one cycle. The TPL5110 is available in a 6-pin SOT23 package.
Specifications
Texas Instruments TPL5110DDCT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPL5110DDCT.
TPL5110DDCT Tech Specifications
TPL5110DDCT Tech Specifications
Texas Instruments TPL5110DDCT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPL5110DDCT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 2 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | |
| Number of Pins | 6Pins | |
| Weight | 29.993795mg | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 6Terminations | |
| Type | Programmable Timer | |
| Voltage - Supply | 1.8V~5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Number of Functions | 1Function | |
| Supply Voltage | 2.5V | |
| Terminal Pitch | 0.95mm | |
| Base Part Number | TPL5110 | |
| Supply Voltage-Max (Vsup) | 5.5V | |
| Number of Channels | 1Channel | |
| Operating Supply Current | 35nA | |
| Nominal Supply Current | 35nA | |
| Adjustable Threshold | NO |
| Product Attribute | Attribute Value | |
|---|---|---|
| Quiescent Current | 35nA | |
| Number of Timers/Counters | 1Timers/Counter | |
| Supply Current-Max (Isup) | 0.00005mA | |
| High Level Output Current | -1mA | |
| Low Level Output Current | 1mA | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1.1mm | |
| Length | 2.9mm | |
| Width | 1.6mm | |
| Thickness | 870μm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

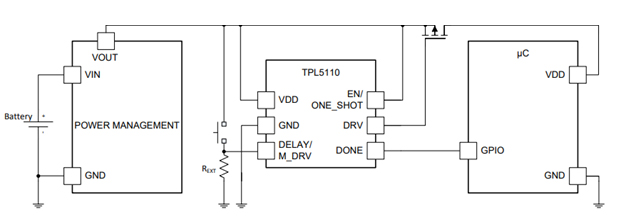

TPL5110DDCT Simplified Application Schematic

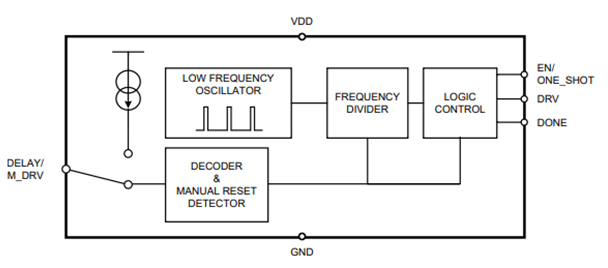

TPL5110DDCT Functional Block Diagram

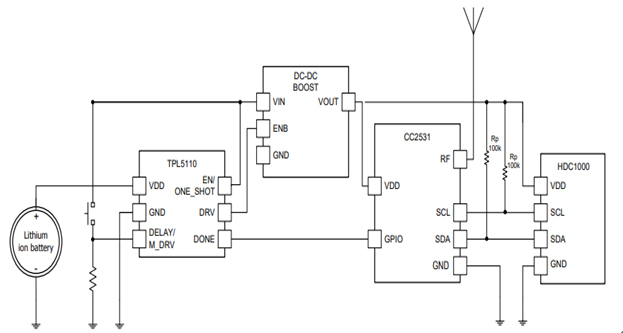

TPL5110DDCT Typical Application
Figure: Sensor Node

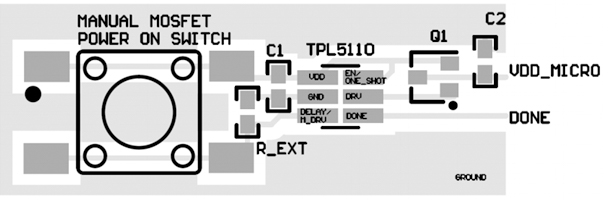

TPL5110DDCT Layout
TPL5110DDCT Manufacturer
As a global semiconductor company operating in 35 countries, Texas Instruments (TI) is first and foremost a reflection of its people. From the TIer who unveiled the first working integrated circuit in 1958 to the more than 30,000 TIers around the world today who design, manufacture, and sell analog and embedded processing chips, we are problem-solvers collaborating to change the world through technology.
Datasheet PDF
Download datasheets and manufacturer documentation for Texas Instruments TPL5110DDCT.
TPL5110DDCT Documents
TPL5110DDCT Documents
Download datasheets and manufacturer documentation for TPL5110DDCT
Frequently Asked Questions
1.How does a TPL work?
Basically, the TPL will turn on periodically, adjustable by potentiometer or resistor, and turn on your project's power. It will then wait until a signal is received from the project to tell the TPL that it can safely turn off the power. If the TPL does not receive a signal by the set time-out, it will reset the device like a watchdog timer.
2.Which is tpl5110 nano power system timer for power gating datasheet?
TPL5110 Nano-Power System Timer for Power Gating datasheet (Rev. A) for additional terms or required resources, click any title below to view the detail page where available.
3.How is the current draw on the tpl5110?
While the TPL5110 is running (but the remainder of the project is de-powered) the current draw is about 20uA (according to our Monsoon Power Meter) If you want to turn the device on by hand, you can also activate the TPL by pressing the onboard tactile switch (or wire your own switch to the Delay pin).
4.What can I do with a tpl5110 battery?
Consuming only 35 nA, the TPL5110 can enable the power supply line and drastically reduce the overall system stand by current during the sleep time. Such power savings enable the use of significantly smaller batteries for energy harvesting or wireless sensor applications.
5.Can tpl5110 turn off DRV?
DRV - this is the Drive output pin, the TPL5110 will power this pin with the same voltage as from VDD when the timer activates Done - This is the signal pin from the driven electronics back to the TPL5110 to let it know that it is 'done' with whatever it had to do, and the TPL5110 can turn it off There is also an 'active' LED in the top right.
FAQ
1.How does a TPL work?
Basically, the TPL will turn on periodically, adjustable by potentiometer or resistor, and turn on your project's power. It will then wait until a signal is received from the project to tell the TPL that it can safely turn off the power. If the TPL does not receive a signal by the set time-out, it will reset the device like a watchdog timer.
2.Which is tpl5110 nano power system timer for power gating datasheet?
TPL5110 Nano-Power System Timer for Power Gating datasheet (Rev. A) for additional terms or required resources, click any title below to view the detail page where available.
3.How is the current draw on the tpl5110?
While the TPL5110 is running (but the remainder of the project is de-powered) the current draw is about 20uA (according to our Monsoon Power Meter) If you want to turn the device on by hand, you can also activate the TPL by pressing the onboard tactile switch (or wire your own switch to the Delay pin).
4.What can I do with a tpl5110 battery?
Consuming only 35 nA, the TPL5110 can enable the power supply line and drastically reduce the overall system stand by current during the sleep time. Such power savings enable the use of significantly smaller batteries for energy harvesting or wireless sensor applications.
5.Can tpl5110 turn off DRV?
DRV - this is the Drive output pin, the TPL5110 will power this pin with the same voltage as from VDD when the timer activates Done - This is the signal pin from the driven electronics back to the TPL5110 to let it know that it is 'done' with whatever it had to do, and the TPL5110 can turn it off There is also an 'active' LED in the top right.
