TPS1H200AQDGNRQ1 Description

The TPS1H200AQDGNRQ1 is a single-channel high-side power switch with an inbuilt 200-m  NMOS  power FET that is fully shielded.

By restricting the inrush or overload current, an adjustable current limit increases system reliability. The current limit's excellent accuracy increases overload protection while simplifying the front-stage power architecture. Aside from the current limit, configurable features allow design freedom in terms of functionality, cost, and thermal dissipation.

With the digital status output, the gadget offers complete diagnostics. In both the ON and OFF settings, open-load detection is provided. The gadget can be used with or without an MCU. Isolated systems can use the device in stand-alone mode.

TPS1H200AQDGNRQ1 Pinout

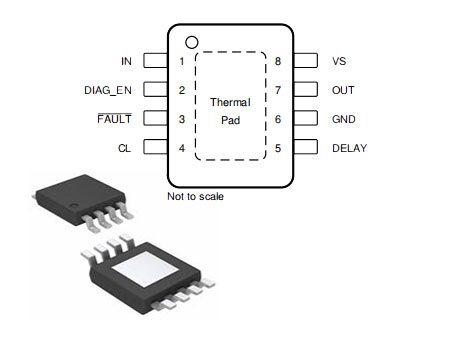

The TPS1H200AQDGNRQ1 Pinout is shown as follows.

Pinout



Pin Number Pin Name Description
4 CL Adjustable current limit. Connect to device GND if external current limit is not used.
5 DELAY Function configuration when current limit; internal pullup
2 DIAG_EN Enable the diagnostic function
3 FAULT Open-drain diagnostic status output. Leave floating if not used
6 GND Ground
1 IN Input control for output activation; internal pulldown
7 OUT Output, source of the high-side switch, connected to the load
8 VS Power supply, drain for the high-side switch
  Thermal pad Thermal pad. Connect to device GND or leave floating

TPS1H200AQDGNRQ1 CAD Model

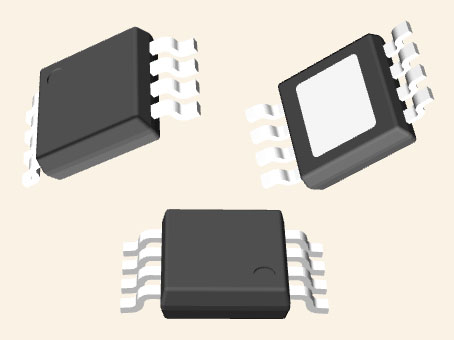

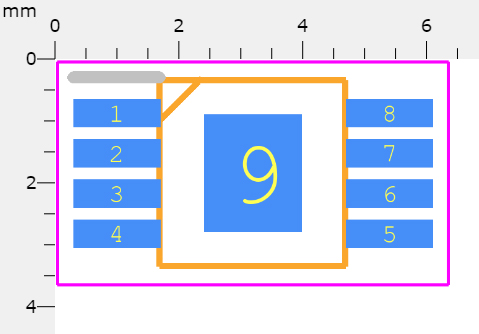

The following figure is TPS1H200AQDGNRQ1 CAD Model.

Symbol

Footprint

3D Model

TPS1H200AQDGNRQ1 Features

• Qualified for automotive applications

• AEC-Q100 qualified with the following results:

– Device temperature grade 1: –40°C to +125°C  ambient operating temperature range

– Device HBM ESD Classification Level H2

– Device CDM ESD Classification Level C4B

• Functional Safety-Capable

– Documentation available to aid functional safety system design

• Single-channel 200-mω smart high-side switch

• Wide operating voltage: 3.4 V to 40 V

• Ultra-low standby current, < 500 nA

• Adjustable current limit with external resistor

– ±15% when ≥ 500 mA

– ±10% when ≥ 1.5 A

• Configurable behavior after current limit

– Holding mode

– Latch-off mode with adjustable delay time

– Auto-retry mode

• Supports stand-alone operation without an MCU

• Protection:

– Short-to-GND and overload protection

– Thermal shutdown and thermal swing

– Negative voltage clamp for inductive loads

– Loss of GND and loss of battery protection

• Diagnostics:

– Overload and short-to-GND detection

– Open-load and short-to-battery detection in ON or OFF state

– Thermal shutdown and thermal swing



Specifications

TPS1H200AQDGNRQ1 Tech Specifications

Texas Instruments TPS1H200AQDGNRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS1H200AQDGNRQ1.

Product Attribute Attribute Value
Factory Lead Time12 Weeks
Mounting TypeSurface Mount
Package / Case8-TSSOP, 8-MSOP (0.118, 3.00mm Width) Exposed Pad
Surface MountYES
Operating Temperature-40°C~125°C
PackagingTape & Reel (TR)
SeriesAutomotive, AEC-Q100
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)2 (1 Year)
Number of Terminations8Terminations
ECCN CodeEAR99
Terminal PositionDUAL
Product Attribute Attribute Value
Terminal FormGULL WING
Number of Functions1Function
Terminal Pitch0.65mm
Base Part NumberTPS1H200
JESD-30 CodeS-PDSO-G8
Number of Outputs1Output
Output TypeN-Channel
Supply Voltage-Max (Vsup)40V
Supply Voltage-Min (Vsup)4V
InterfaceOn/Off
Output ConfigurationHigh Side
Voltage - Supply (Vcc/Vdd)4V~40V
Input TypeNon-Inverting
Product Attribute Attribute Value
Switch TypeRelay, Solenoid Driver
Ratio - Input:Output1:1
Fault ProtectionCurrent Limiting (Adjustable), Open Load Detect, Over Load, Over Temperature, Reverse Current, Short Circuit, UVLO
Turn On Time90 µs
Output Peak Current Limit-Nom4.8A
Rds On (Typ)200m Ω
Turn Off Time90 µs
Built-in ProtectionsTRANSIENT; OVER CURRENT; THERMAL
Output Current Flow DirectionSINK
FeaturesAuto Restart
Length3mm
Width3mm
RoHS StatusROHS3 Compliant
0 Products View Similar

TPS1H200AQDGNRQ1 Typical Block Diagram

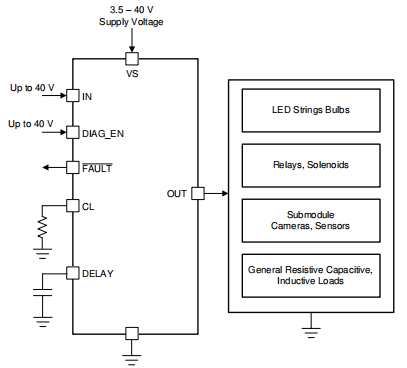

The TPS1H200AQDGNRQ1 Typical Block Diagram is shown as follows.

Typical Block Diagram

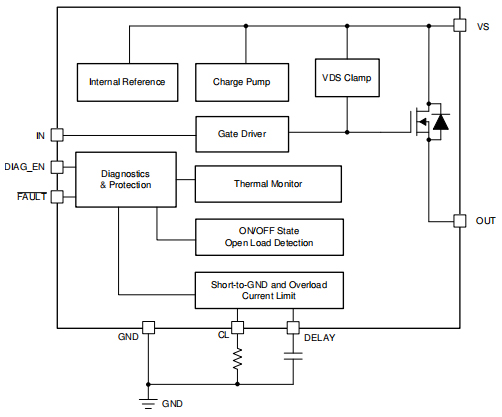

The TPS1H200AQDGNRQ1 Functional Block Diagram is shown as follows.

Functional Block Diagram

TPS1H200AQDGNRQ1 Typical Application

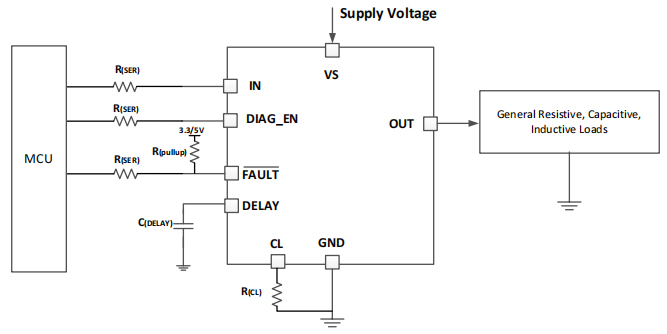

The following figure shows an example of how to design the external circuitry parameters.

Typical Application Circuitry

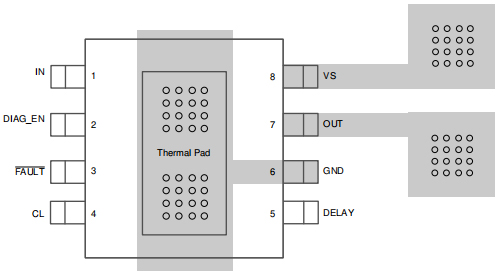

TPS1H200AQDGNRQ1 Layout

TJ must be less than 175°C to avoid a thermal shutdown. The power dissipation can be significant if the output current is high. The PCB layout, on the other hand, is critical. A good PCB design improves heat transfer, which is critical for the device's long-term durability.

• Increase the heat conductivity of the board by increasing the copper covering on the PCB. The copper on the PCB is the primary heat-flow channel from the package to the ambient. When no heat sinks are mounted to the PCB on the opposite side of the board from the package, maximum copper is critical.

• To improve the board's thermal conductivity, place as many thermal vias as feasible directly beneath the package ground pad.

• To prevent solder voids, all thermal vias must be plated shut or plugged and sealed on both sides of the board. Solder coverage must be at least 85% to assure reliability and performance.

Layout

TPS1H200AQDGNRQ1 Applications

• Body Lighting

• Infotainment System

• Advanced Driver Assistance Systems (ADAS)

• Single-channel High-side Switch for Submodules

• General Resistive, Inductive, and Capacitive Loads



TPS1H200AQDGNRQ1 Package

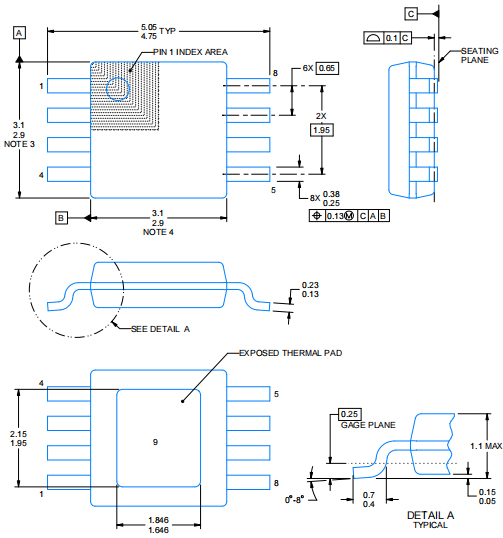

The following shows TPS1H200AQDGNRQ1 Package.

Package
