TPS22965DSGT Load Switch: Layout, Pinout, and Datasheet

The TPS22965DSGT is a single-channel load switch with adjustable rise time to reduce inrush current. An N-channel MOSFET is included in the device, which can function between 0.8 and 5.7 V and handle a maximum continuous current of 6 A. An on/off input (ON) controls the switch and is capable of interacting directly with low-voltage control signals. A 225-ohm on-chip load resistor is included in the TPS22965DSGT, allowing for rapid output discharge when the switch is switched off.

The TPS22965DSGT is supplied in a 2-mm*2-mm 8-pin SON package ( DSG ) with an integrated thermal pad for high power dissipation. The gadget is designed to operate in a temperature range of –40°C to +105°C in free air.

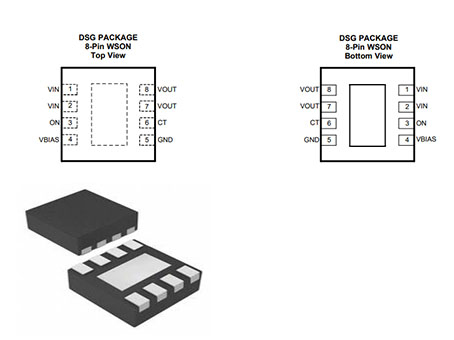

The following shows TPS22965DSGT Pinout.

Pinout

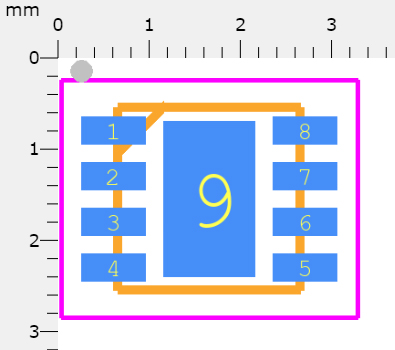

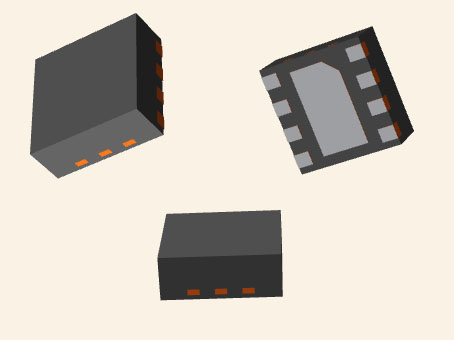

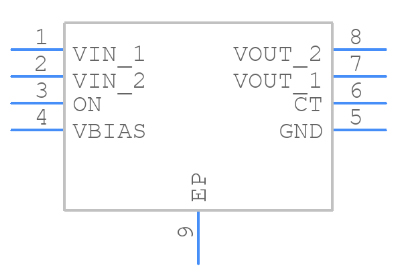

The following figures are TPS22965DSGT Symbol, Footprint and 3D Model.

Symbol

Footprint

3D Model

• Integrated Single Channel Load Switch

• Input Voltage Range: 0.8 V to 5.7 V

• Ultra-Low On Resistance (RON)

– RON = 16 mΩ at  VIN  = 5 V (VBIAS = 5 V)

– RON = 16 mΩ at  VIN = 3.6 V (VBIAS = 5 V)

– RON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V)

• 6-A Maximum Continuous Switch Current

• Low Quiescent Current (50 µA)

• Low Control Input Threshold Enables Use of 1.2-, 1.8-, 2.5-, and 3.3-V Logic

• Configurable  Rise Time

• Quick Output Discharge (QOD) (Optional)

• SON 8-pin Package With Thermal Pad

• ESD Performance Tested per JESD 22

– 2000-V HBM and 1000-V CDM

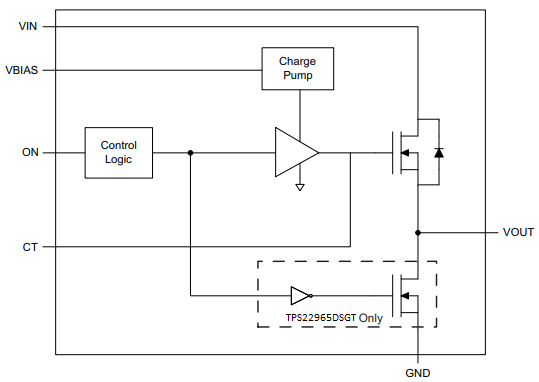

The following figure is TPS22965DSGT Functional Block Diagram.

Functional Block Diagram

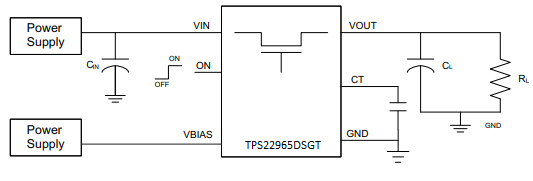

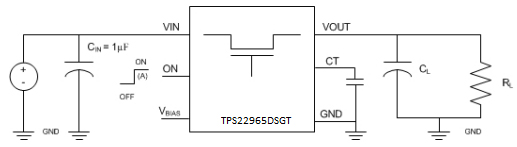

The following figure is TPS22965DSGT Test Circuit.

Test Circuit

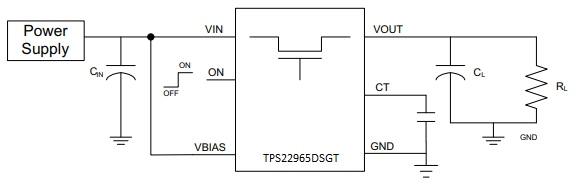

The following figure is TPS22965DSGT Simplified Schematic.

Simplified Schematic

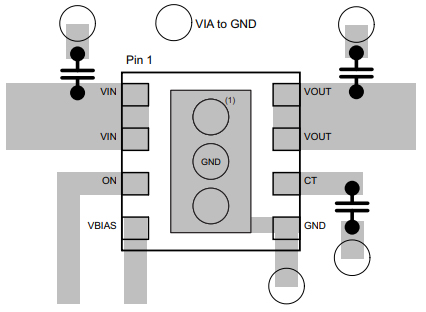

All traces must be as brief as possible for optimal performance. In order to reduce the impacts of parasitic trace inductances on normal operation, the input and output capacitors must be located close to the device. The use of large traces for VIN, VOUT, and GND reduces parasitic electrical effects while also lowering case-to-ambient thermal impedance. To avoid parasitic capacitance, the CT trace must be as short as feasible.

Layout

This application demonstrates how the TPS22965DSGT can be used to power downstream modules.

Powering a Downstream Module

• Ultrabook™

• Notebooks and Netbooks

• Tablet PC

• Consumer Electronics

• Set-top Boxes and Residential Gateways

• Telecom Systems

• Solid State Drives (SSDs)

• Power Management

The following shows TPS22965DSGT Package.

Package
