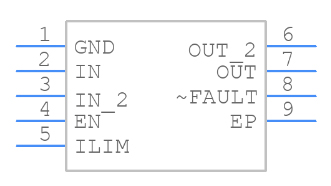

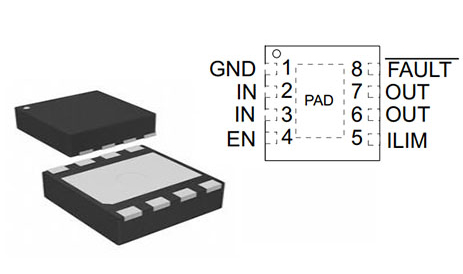

TPS2556DRBR Switch: 8-VDFN 5V, Pinout and Datasheet

The TPS2556DRBR power-distribution switches are intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered. These devices offer a programmable current-limit threshold between 500 mA and 5.0 A (typ) via an external resistor. The power-switch rise and fall times are controlled to minimize current surges during turn on/off.

• Meets USB Current-Limiting Requirements

• Adjustable Current Limit, 500 mA to 5 A (Typical)

• ±6.5% Current-Limit Accuracy at 4.5 A

• Fast Overcurrent Response: 3.5-µs (Typical)

• 22-mΩ High-Side MOSFET

• Operating Voltage: 2.5 V to 6.5 V

• 2-µA Maximum Standby Supply Current

• Built-in Soft Start

• 15-kV and 8-kV System-Level ESD Capable

• UL Listed: File No. E169910 and CB IEC60950-1-am2 ed2.0

• USB Ports and Hubs

• Digital TVs

• Set-Top Boxes

• VOIP Phones

Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips  and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers  , and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.

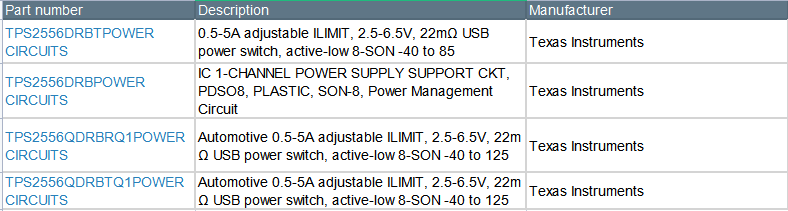

NA TPS2556DRBR technical specifications, attributes, parameters and parts with similar specifications to NA TPS2556DRBR.
