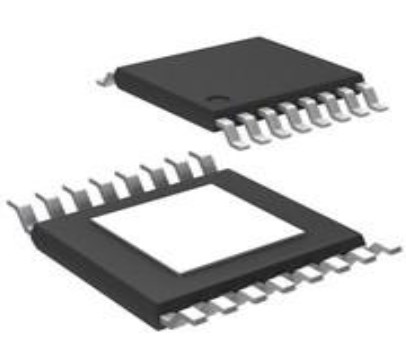

The TPS2H160AQPWPRQ1 series is a fully protected dual-channel smart high-side switch with integrated 160-m NMOS power FETs. The following article is going to introduce its Pinout, features, applications, and other details.
TPS2H160AQPWPRQ1

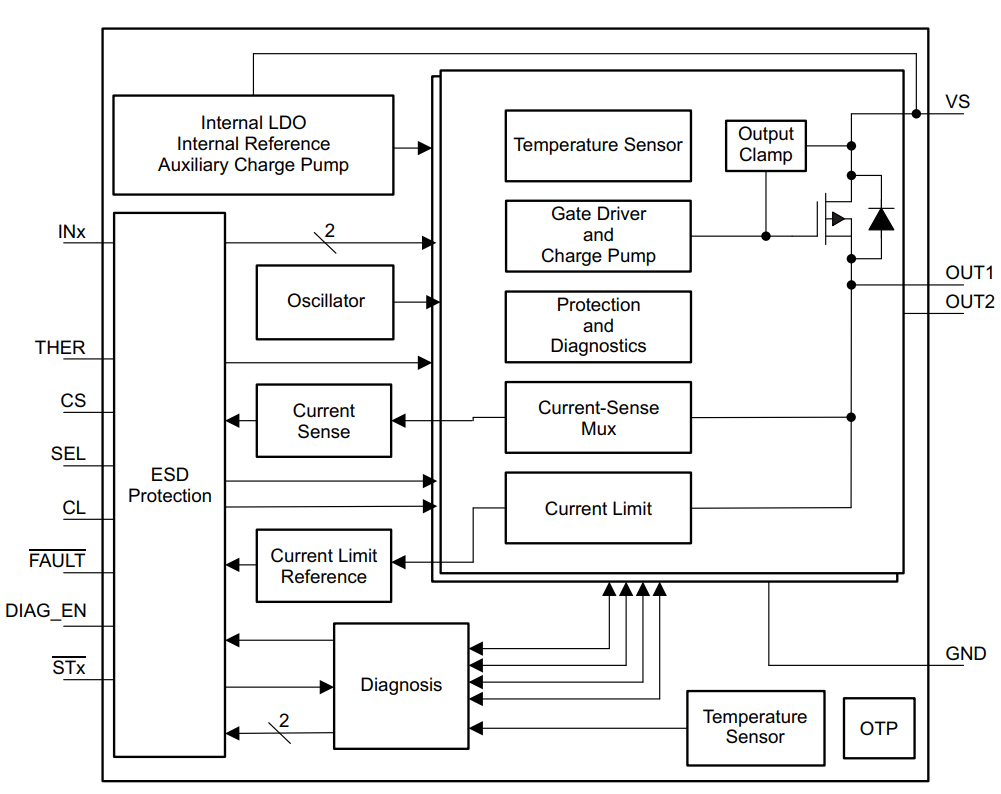

The TPS2H160AQPWPRQ1 series is a dual-channel smart high-side switch with integrated 160-m NMOS power FETs that is fully protected. The load may be intelligently controlled thanks to full diagnostics and high-accuracy current-sense features. By restricting the inrush or overload current, an externally adjustable current limit increases the overall system's reliability.

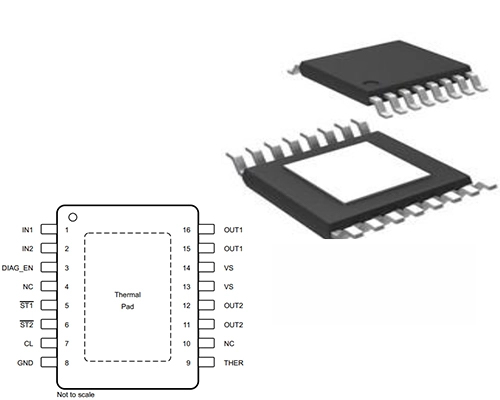

Symbol

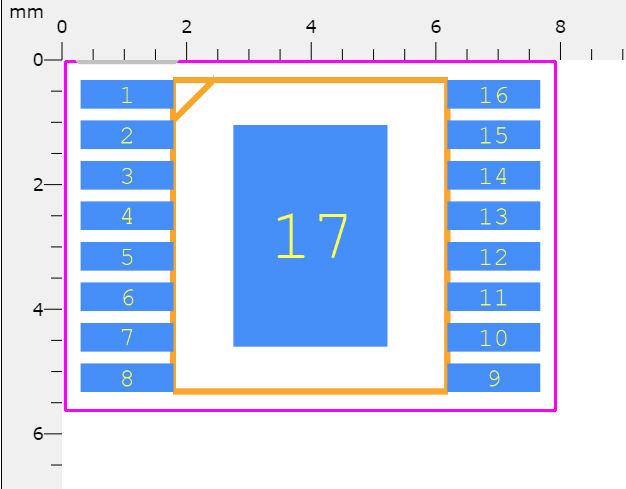

Foorprint

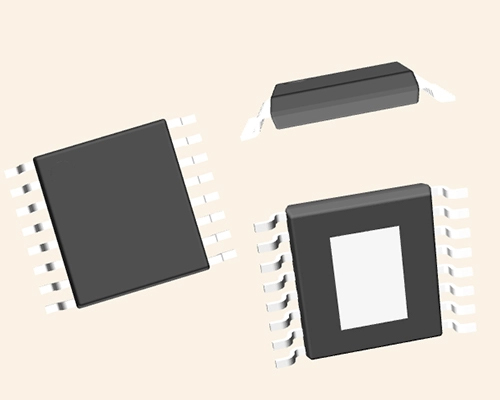

3D Model
• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
– Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature Range
– Device HBM ESD Classification Level H2
– Device CDM ESD Classification Level C4B
• Functional safety capable
– Documentation available to aid functional safety system design
• Dual-Channel 160-mΩ Smart High-Side Switch With Full Diagnostics
– Version A: Open-Drain Status Output
– Version B: Current-Sense Analog Output
• Wide Operating Voltage 3.4 to 40 V
• Ultralow Standby Current, < 500 nA
• High-Accuracy Current Sense:
– ±17% Under >25-mA Load
• Adjustable Current Limit With External Resistor
±15% Under >500-mA Load
• Protection:
– Short-to-GND Protection by Current Limit
(Internal or External)
– Thermal Shutdown With Latch-Off Option and Thermal Swing
– Inductive Load Negative Voltage Clamp With Optimized Slew Rate
– Loss of GND and Loss of Battery Protection
NA TPS2H160AQPWPRQ1 technical specifications, attributes, parameters and parts with similar specifications to NA TPS2H160AQPWPRQ1.
Texas Instruments TPS2H160AQPWPRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS2H160AQPWPRQ1.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-PowerTSSOP (0.173, 4.40mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 16Pins | |
| Operating Temperature | -40°C~125°C TA | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q100 | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Number of Functions | 2Functions | |
| Supply Voltage | 13.5V | |
| Base Part Number | TPS2H160 | |
| Number of Outputs | 2Outputs | |
| Output Type | N-Channel | |
| Supply Voltage-Min (Vsup) | 4V | |
| Interface | On/Off | |
| Output Configuration | High Side | |
| Voltage - Supply (Vcc/Vdd) | Not Required | |
| Switch Type | General Purpose | |
| Nominal Input Voltage | 40V | |
| Ratio - Input:Output | 1:1 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Load | 3.4V~40V | |
| Fault Protection | Current Limiting (Adjustable), Over Temperature | |
| Turn On Time | 90 µs | |
| Output Peak Current Limit-Nom | 2.5A | |
| Rds On (Typ) | 155m Ω | |
| Turn Off Time | 90 µs | |
| Built-in Protections | TRANSIENT; OVER CURRENT; THERMAL; UNDER VOLTAGE | |
| Output Current Flow Direction | SOURCE | |
| Features | Status Flag | |
| Height | 1.2mm | |
| Length | 5mm | |
| Width | 4.4mm | |
| Thickness | 1mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Dual-Channel LED Drivers, Bulb Drivers
• Dual-Channel High-Side Switches for Sub-Modules
• Dual-Channel High-Side Relay, Solenoid Drivers

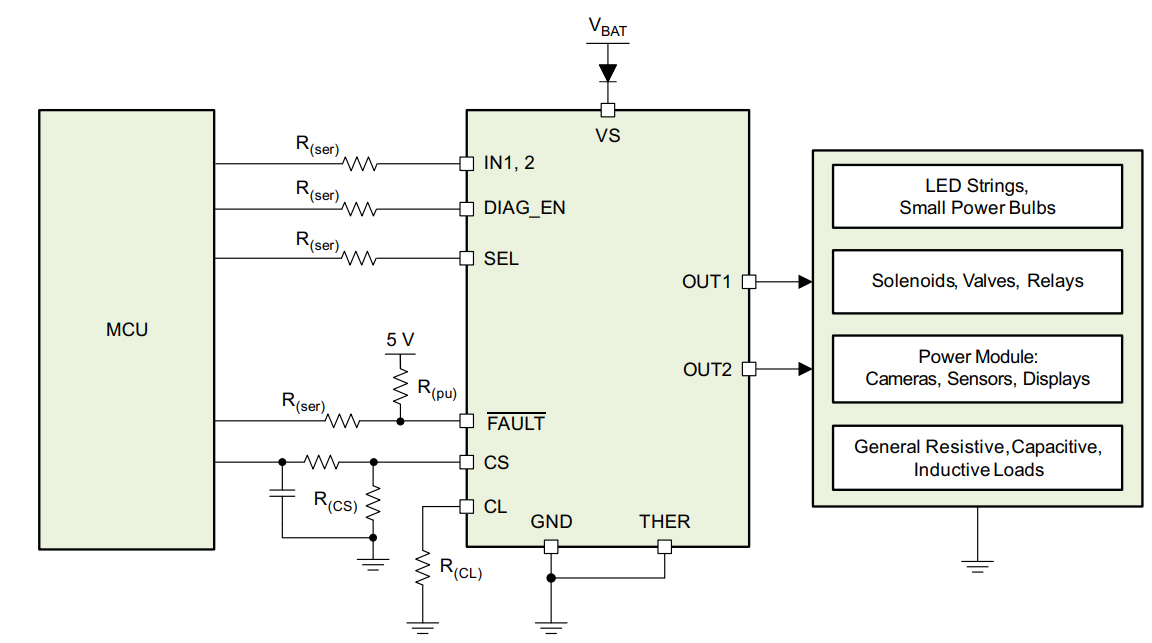

TPS2H160AQPWPRQ1 Typical Application Circuit
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, microcontrollers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
