TPS3700DDCR: Pinout, Datasheet

For overvoltage and undervoltage detection, the TPS3700DDCR gadget combines two comparators. The TPS3700DDCR is a device with a wide supply voltage range (1.8 V to 18 V) and built-in hysteresis that has a high-accuracy increasing input threshold of 400 mV (1 percent above temperature). The outputs are also rated at 18 volts and can sink up to 40 milliamperes.

Symbol

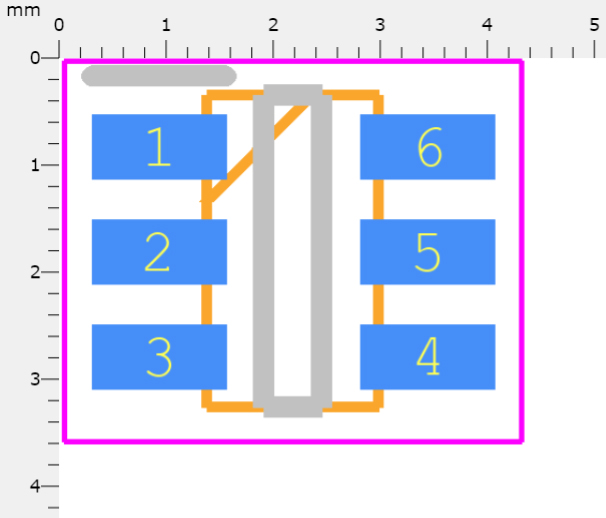

Footprint

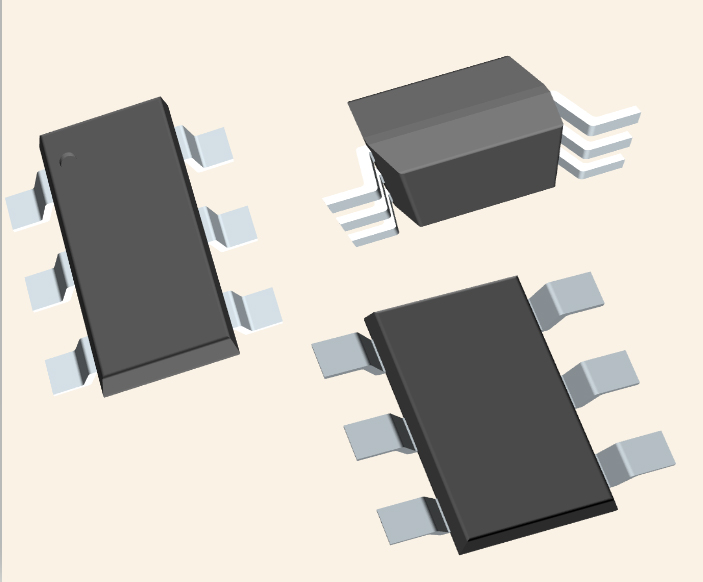

3D Model

• Wide Supply Voltage Range: 1.8 V to 18 V

• Adjustable Threshold: Down to 400 mV

• High Threshold Accuracy:

– 1.0% Over Temperature

– 0.25% (Typical)

• Low Quiescent Current: 5.5 µA (Typical)

•Open-Drain Outputs for Overvoltage and Undervoltage Detection

• Internal Hysteresis: 5.5 mV (Typ)

• Temperature Range: –40°C to 125°C

• Packages:

– SOT-6

– 1.5-mm × 1.5-mm WSON-6

• Industrial Control Systems

• Automotive Systems

• Embedded Computing Modules

• DSP, Microcontroller, or Microprocessor Applications

• Notebook and Desktop Computers

• Portable- and Battery-Powered Products

• FPGA and ASIC Applications

TPS3700DDCR Typical Application Circuit
