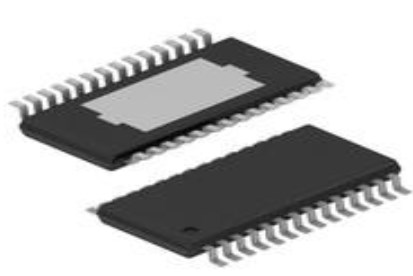

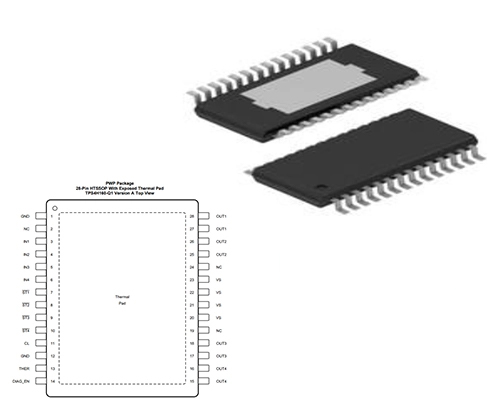

TPS4H160BQPWPRQ1: 28-PowerTSSOP Package, High-Side Switch, FETs

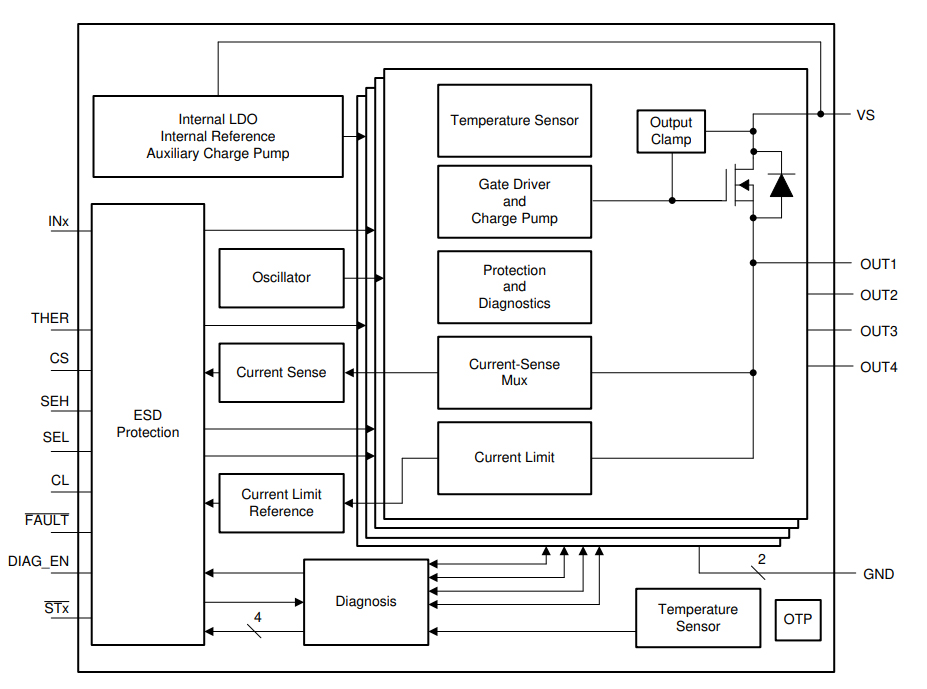

The TPS4H160BQPWPRQ1 is a smart high-side switch with an integrated charge pump and quad-channel NMOS power FETs. Full diagnostics and high-accuracy current-sense features allow for intelligent load control. The configurable current-limit function considerably improves the overall system reliability. The device comes in two flavors, each with its own set of diagnostics: open-drain digital output and current-sense analog output.

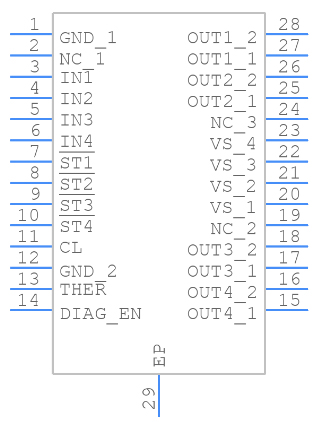

Symbol

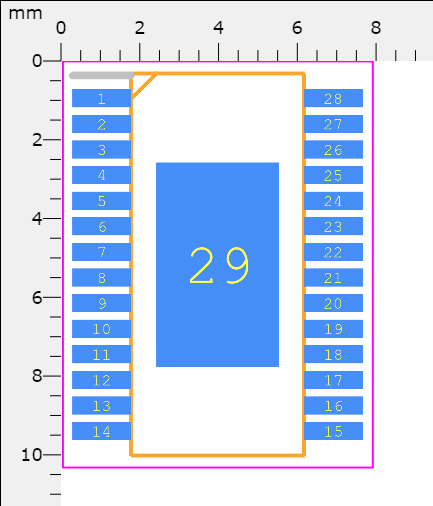

Footprint

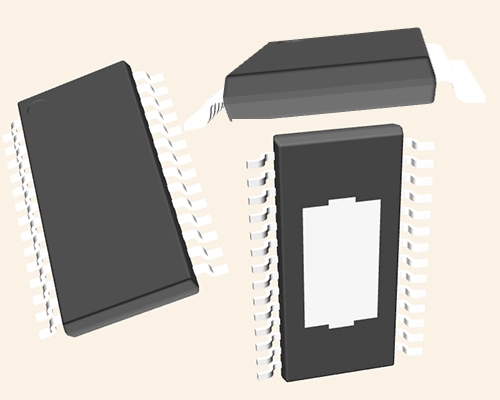

3D Model

• Qualified for Automotive Applications

• AEC-Q100 Qualified With the Following Results:

– Device Temperature Grade 1: –40°C to asd

125°C Ambient Operating Temperature Range

– Device HBM ESD Classification Level H3A

– Device CDM ESD Classification Level C4B

• Functional safety capable

– Documentation available to aid functional safety system design

• Quad-Channel 160-mΩ Smart High-Side Switch With Full Diagnostics

– Version A: Open-Drain Digital Output

– Version B: Current-Sense Analog Output

• Wide Operating Voltage 3.4 V to 40 V

• Ultralow Standby Current, < 500 nA

• High-Accuracy Current Sense: ±15% Under >25-mA Load

• Adjustable Current Limit With External Resistor, ±15% Under >500 mA Load

• Protection

– Short-to-GND Protection by Current Limit (Internal or External)

– Thermal Shutdown With Latch Off Option and Thermal Swing

– Inductive Load Negative Voltage Clamp With Optimized Slew Rate

NA TPS4H160BQPWPRQ1 technical specifications, attributes, parameters and parts with similar specifications to NA TPS4H160BQPWPRQ1.

• Multichannel LED Drivers, Bulb Drivers

• Multichannel High-Side Switches for Sub-Modules

• Multichannel High-Side Relay, Solenoid Drivers

• PLC Digital Output Drivers

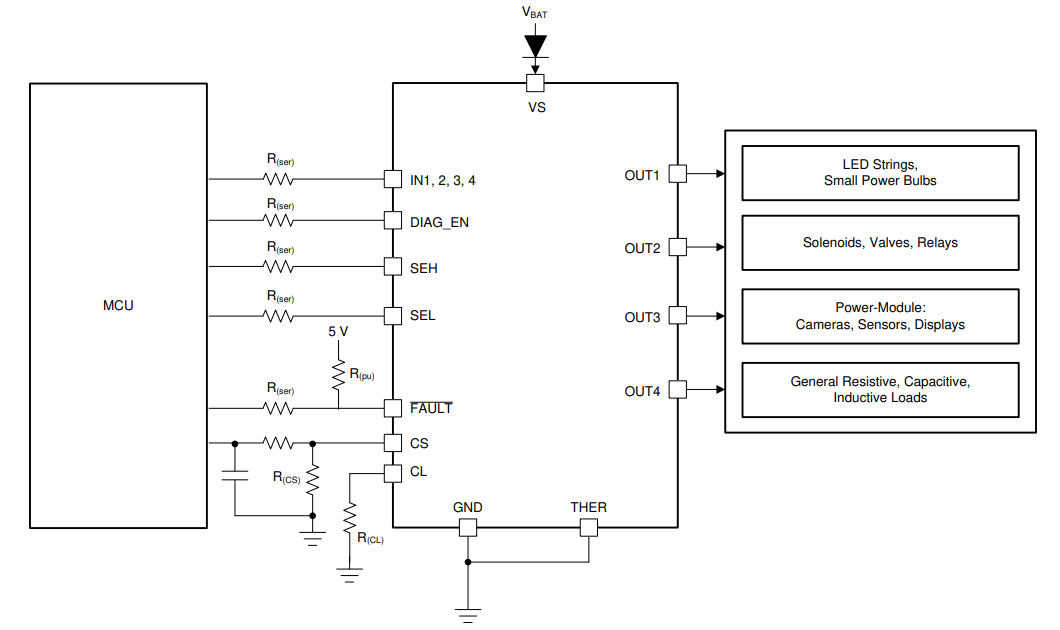

TPS4H160BQPWPRQ1 Typical Application Circuit
