Switching Controllers High Perf,Sgl Sync Step-Down Controller
TPS51219RTER is a high performance, single-synchronous step-down controller with differential voltage feedback. This article mainly covers its datasheet, pinout, application, circuit and more details about TPS51219RTER.
TPS51219RTER
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $27.4 | $27.4 |
| 10+ | $20.42 | $204.2 |
| 25+ | $18.668 | $466.7 |
| 100+ | $16.749 | $1674.9 |
| 250+ | $15.834 | $3958.5 |
| 500+ | $15.282 | $7641 |
| 1000+ | $14.8277 | $14827.7 |

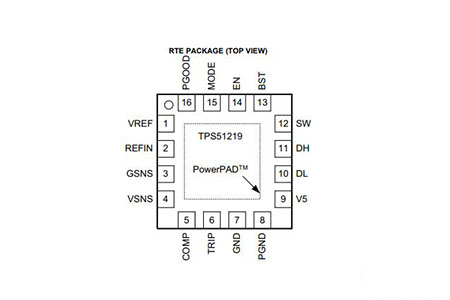

TPS51219RTER Pinout

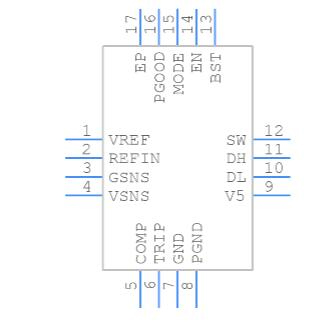

TPS51219RTER Symbol

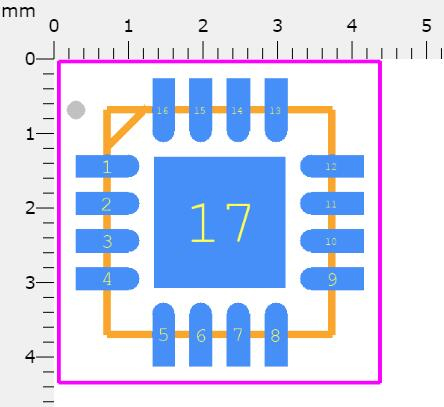

TPS51219RTER Footprint

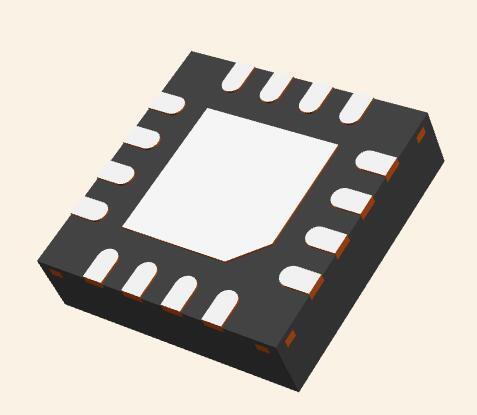

TPS51219RTER 3D Model
The TPS51219RTER is a small-sized single buck controller with adaptive on-time control. It provides a choice of control modes (D-CAPTM or D-CAP2TM ) to meet a wide range of system requirements. It is designed for tight DC regulation requirements such as the VCCIO application for IntelP notebooks. The performance and flexibility of the TPS51219RTER make it suitable for low output voltage, high current, PC system power rails and similar point-of-load (POL) power supplies. Differential voltage feedback and the voltage compensation function combine to provide high precision power to load devices.
The TPS51219RTER is available in a 16 -pin, QFN package and is specified for ambient temperature from -40 °C to 85 °C
Differential Voltage Feedback
DC Compensation for Accurate Regulation
Wide Input Voltage Range: 3 V to 28 V
Output Voltage Range: 0.5 V to 2.0 V with Fixed Options of 1.05 V and 1.00 V
Wide Output Load Range: 0 A to 20 A+
Adaptive On-Time Modulation with Selectable Control Architecture and Frequency
-D-CAPTM Mode at 300 kHz/400 kHz for Fast Transient Response
-D-CAP2 TM Mode at 500 kHz/670 kHz for Ceramic Output Capacitor
4700 ppm/C, Low-Side Ros(on) Current Sensing
Rsense Accurate Current Sense Option
Internal, 1-ms Voltage Servo Softstart
Built-In Output Discharge
Power Good Output
Integrated Boost Switch
Built-In OVP/UVP/OCP
Thermal Shutdown (Non-latched)
3 mm x 3 mm, 16-Pin, QFN (RTE) Package
The functional block diagram of TPS51219RTER is given below

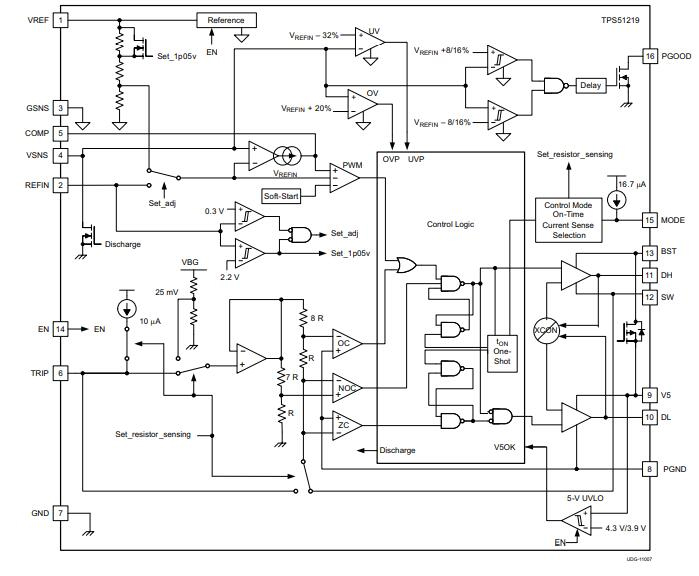

TPS51219RTER Functional Block Diagram

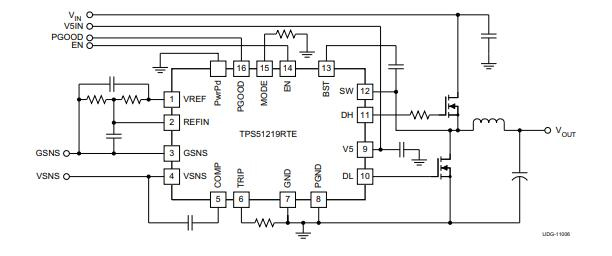

This figure shows a simple application circuit of TPS51219RTER
TPS51219RTER Application Circuit

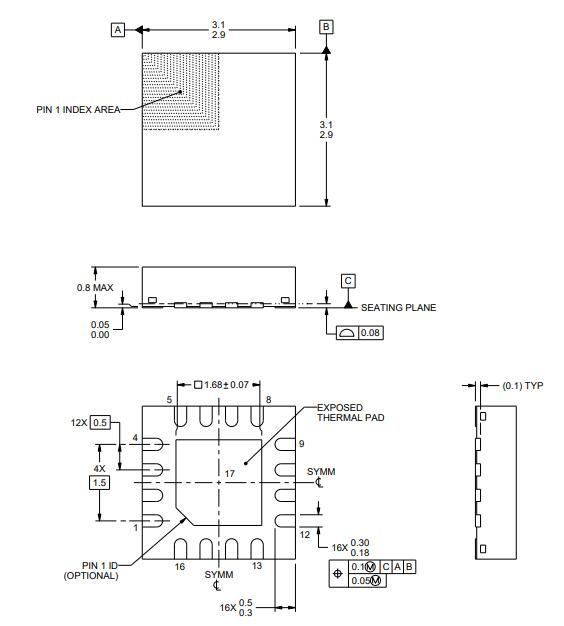

TPS51219RTER Package
Texas Instruments TPS51219RTER technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS51219RTER.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 6 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-WFQFN Exposed Pad | |
| Number of Pins | 16Pins | |
| SwitchingFrequency | 400kHz | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Series | D-CAP™, D-CAP2™ | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 16Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Terminal Position | QUAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 5V | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | TPS51219 | |
| Function | Step-Down | |
| Number of Outputs | 1Output | |
| Output Voltage | 2V | |
| Output Type | Transistor Driver | |
| Operating Supply Voltage | 5.5V | |
| Input Voltage-Nom | 5V | |
| Analog IC - Other Type | SWITCHING CONTROLLER | |
| Output Configuration | Positive | |
| Output Current | 20A | |
| Voltage - Supply (Vcc/Vdd) | 3V~28V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Quiescent Current | 560μA | |
| Control Features | Enable, Power Good | |
| Input Voltage (Min) | 4.5V | |
| Topology | Buck | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | Yes | |
| Switcher Configuration | PUSH-PULL | |
| Max Frequency | 670kHz | |
| Clock Sync | No | |
| Height | 800μm | |
| Length | 3mm | |
| Width | 3mm | |
| Thickness | 750μm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Download datasheets and manufacturer documentation for TPS51219RTER
