Conv DC-DC Single Step Down 4.7V to 60V 8-Pin VSON EP
The TPS54061DRBT is a 60-volt, 200-milliampere step-down (buck) regulator with integrated high-side and low-side n-channel MOSFETs. The article is going to introduce the CAD Model, features and other details of the component.
TPS54061DRBT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $30.8 | $30.8 |
| 10+ | $23.07 | $230.7 |
| 25+ | $21.128 | $528.2 |
| 100+ | $18.995 | $1899.5 |

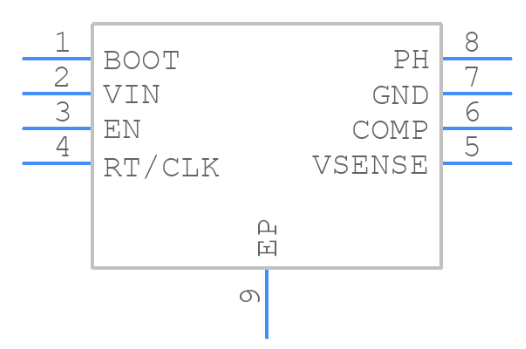

Symbol

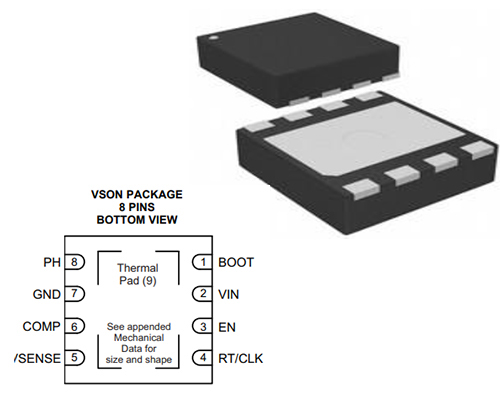

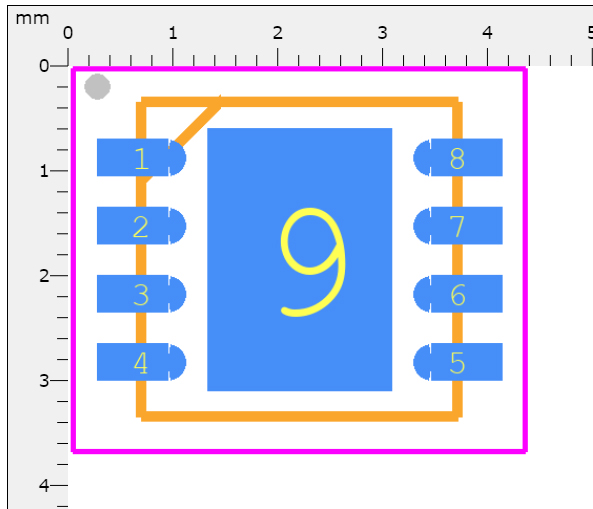

Footprint

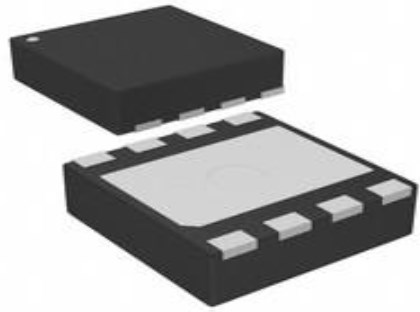

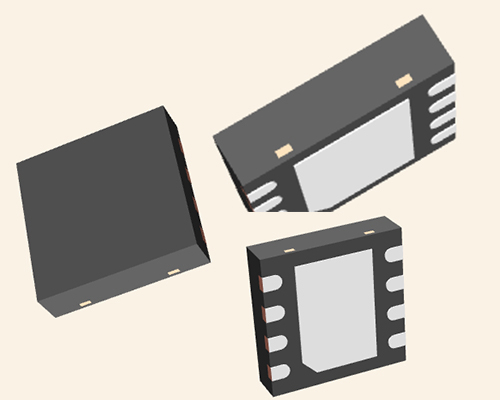

3D Model

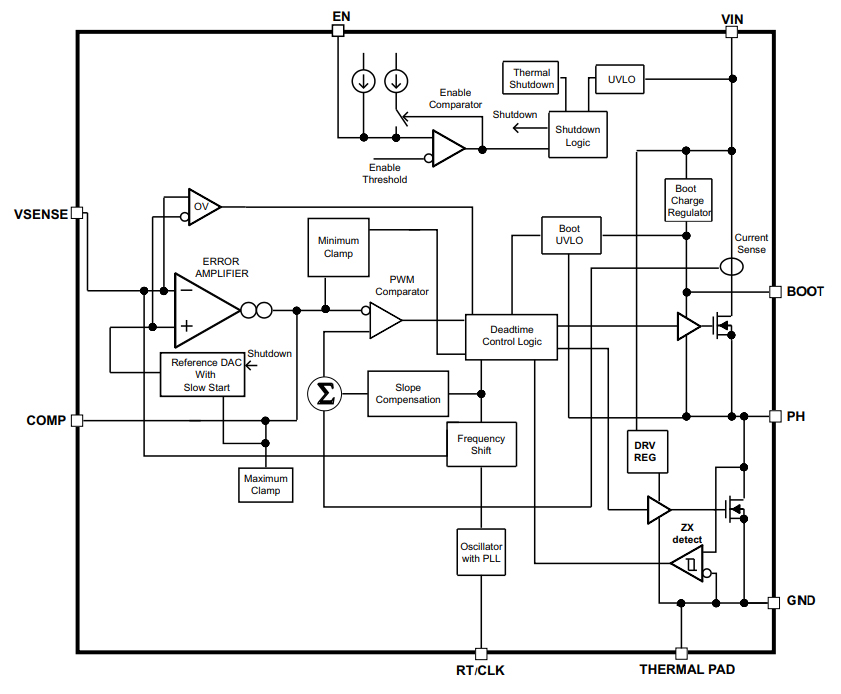

• Integrated High-Side and Low-Side MOSFET
• Diode Emulation for Improved Light Load integrated high-side and low-side MOSFETs. Current Efficiency
• Peak Current Mode Control
• 90-µA Operating Quiescent Current
• 1.4-µA Shutdown Supply Current
• 50-kHz to 1100-kHz Adjustable Switching Frequency
• Synchronizes to External Clock
• Internal Slow-Start
• 0.8 V ±1% Voltage Reference
• Stable With Ceramic Output Capacitors or Low-Cost Aluminum Electrolytic
• Cycle-by-Cycle Current Limit, Thermal, OVP and Frequency Foldback Protection
• VSON-8 Package, 3 mm × 3 mm With Thermal Pad
• –40°C to 150°C Operating Junction Temperature
Texas Instruments TPS54061DRBT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS54061DRBT.

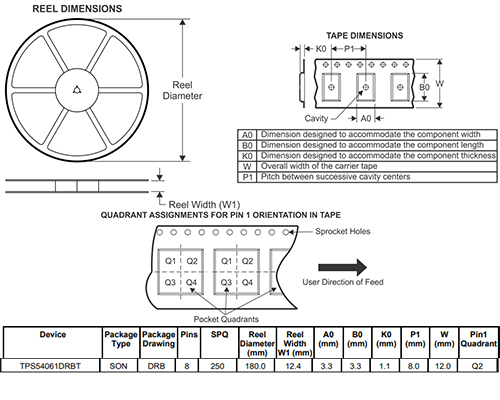

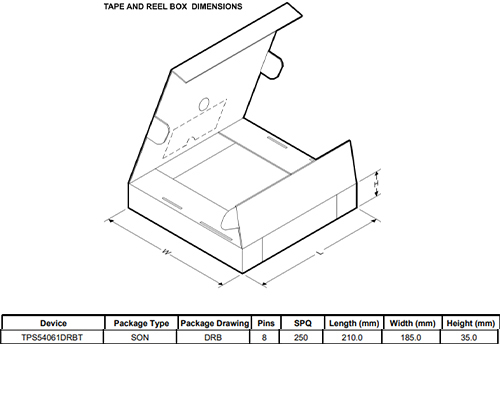

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-VDFN Exposed Pad | |
| Number of Pins | 8Pins | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Pitch | 0.65mm | |
| Base Part Number | TPS54061 | |
| Function | Step-Down | |
| Number of Outputs | 1Output | |
| Output Voltage | 58V | |
| Output Type | Adjustable | |
| Max Output Current | 200mA | |
| Operating Supply Voltage | 60V | |
| Input Voltage-Nom | 12V | |
| Max Supply Voltage | 60V | |
| Min Supply Voltage | 4.7V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Nominal Supply Current | 90μA | |
| Output Configuration | Positive | |
| Quiescent Current | 90μA | |
| Max Output Voltage | 58V | |
| Voltage - Output (Min/Fixed) | 0.8V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Topology | Buck | |
| Control Mode | CURRENT-MODE | |
| Frequency - Switching | 50kHz~1.1MHz | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | Yes | |
| Min Output Voltage | 800mV | |
| Max Duty Cycle | 98 % | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1mm | |
| Length | 3mm | |
| Width | 3mm | |
| Thickness | 880μm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• 4 to 20-mA Current-Loop Powered Sensors
• Low Power Standby or Bias Voltage Supplies
• Industrial Process Control, Metering, and Security Systems
• High Efficiency Replacement for High Voltage Linear Regulators

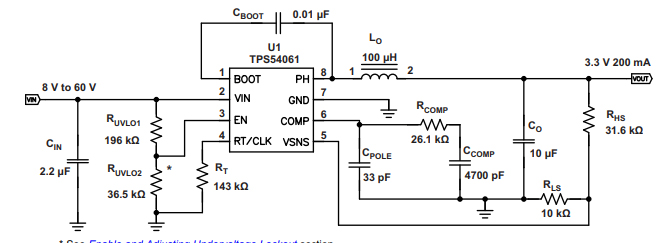

TPS54061DRBT Typical Application Circuit
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Download datasheets and manufacturer documentation for TPS54061DRBT
