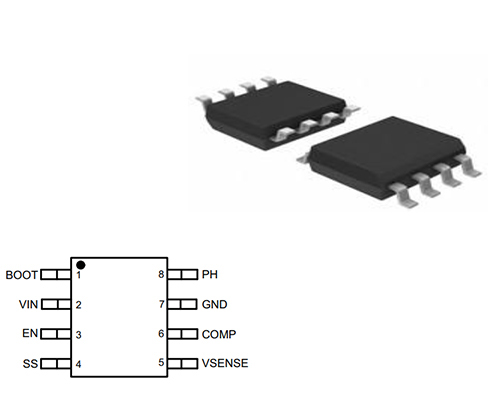

TPS54232DR: MOSFET, Pinout, Datasheet

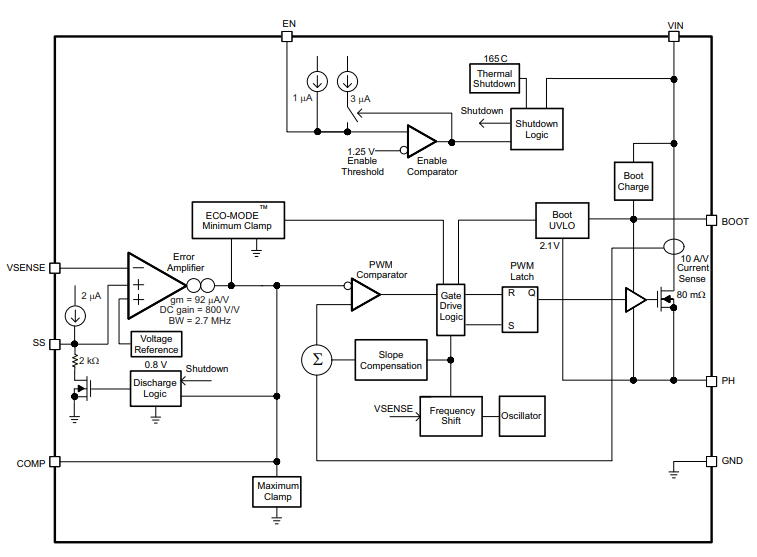

The TPS54232DR is a nonsynchronous buck converter with a low RDS(on) high-side MOSFET that functions at 28 V. A pulse-skipping Eco-Mode feature is automatically enabled to optimize efficiency at light loads. The device can also be used in battery-powered applications because to the 1-A shutdown supply current. Current mode control with internal slope compensation minimizes component count and simplifies external compensation calculations while permitting the use of ceramic output. The hysteresis of the input undervoltage lockout is programmed using a resistor divider. During startup and transient conditions, an overvoltage transient protection circuit prevents voltage overshoots. In the event of an overload condition, the device and the load are protected by a cycle-by-cycle current restriction mechanism, frequency fold back, and thermal shutdown. In an 8-pin SOIC package, the TPS54232DR is available.

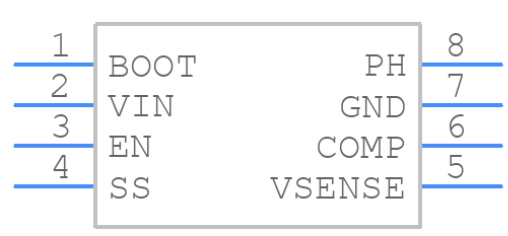

Symbol

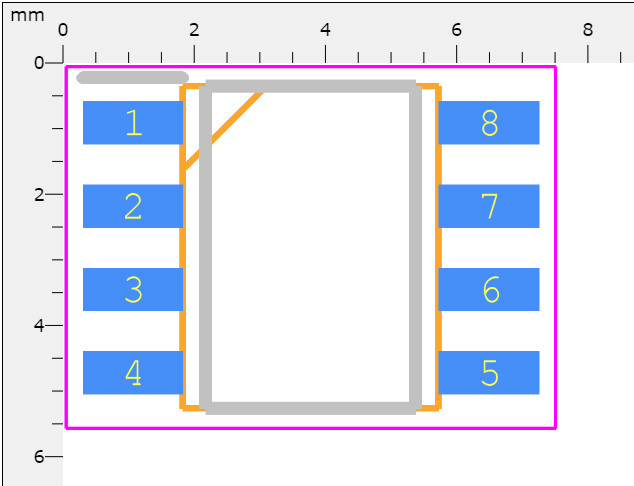

Footprint

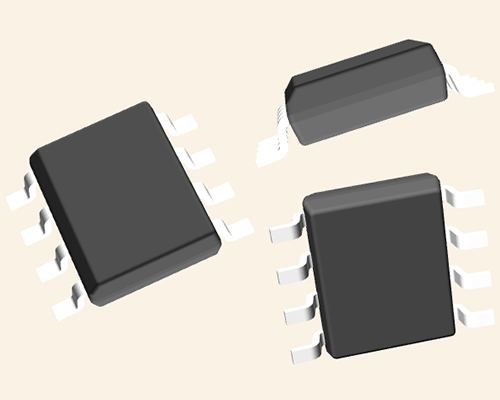

3D Model

• 3.5-V to 28-V Input Voltage Range

• Adjustable Output Voltage Down to 0.8 V

• Integrated 80-mΩHigh-Side MOSFET Supports up to 2-A Continuous Output Current

• High Efficiency at Light Loads with a Pulse-Skipping Eco-Mode™

• Fixed 1-MHz Switching Frequency

• Typical 1-μA Shutdown Quiescent Current

• Programmable UVLO Threshold

• Overvoltage Transient Protection

• Cycle-by-Cycle Current Limit, Frequency Fold, Back and Thermal Shutdown Protection

• Available in 8-Pin SOIC Package

• Supported by WEBENCH® Software Tool

NA TPS54232DR technical specifications, attributes, parameters and parts with similar specifications to NA TPS54232DR.

• Consumer Applications such as Set-Top Boxes, CPE Equipment, LCD Displays, Peripherals, and Battery Chargers

• Industrial and Car Audio Power Supplies

• 5-V, 12-V, and 24-V Distributed Power Systems

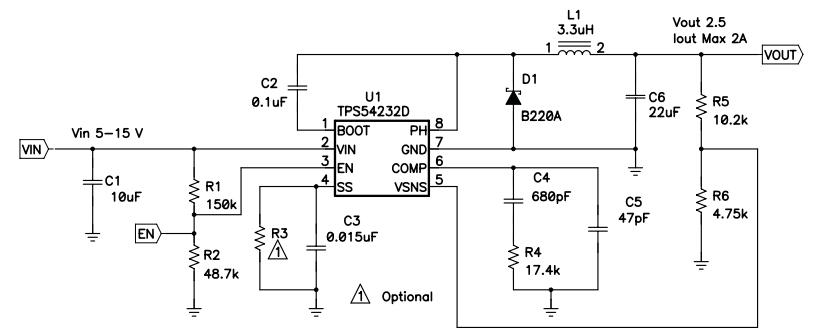

TPS54232DR Typical Application Circuit
