BUCK ADJ 3A 6SOT
The TPS54302DDCR is a 3-A synchronous buck converter with a 4.5 to 28 V input voltage range. The device has two integrated switching FETs, internal loop correction, and a 5-ms internal soft start to reduce component count. The article is going to introduce its pinout, CAD model, features, etc.

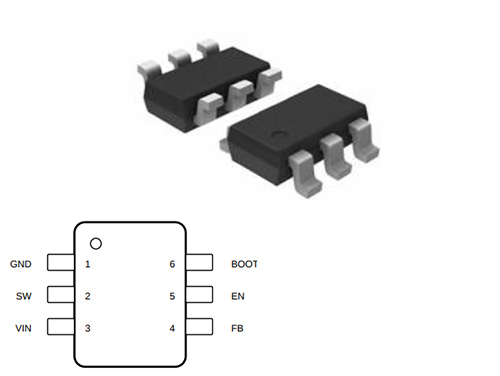

TPS54302DDCR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $13.3 | $13.3 |
| 10+ | $9.68 | $96.8 |
| 25+ | $8.772 | $219.3 |
| 100+ | $7.766 | $776.6 |
| 250+ | $7.2872 | $1821.8 |
| 500+ | $6.998 | $3499 |
| 1000+ | $6.885 | $6885 |
The TPS54302DDCR is a 3-A synchronous buck converter with an input voltage range of 4.5 to 28 V. To reduce component count, the device contains two integrated switching FETs, internal loop correction, and a 5-ms internal soft start.

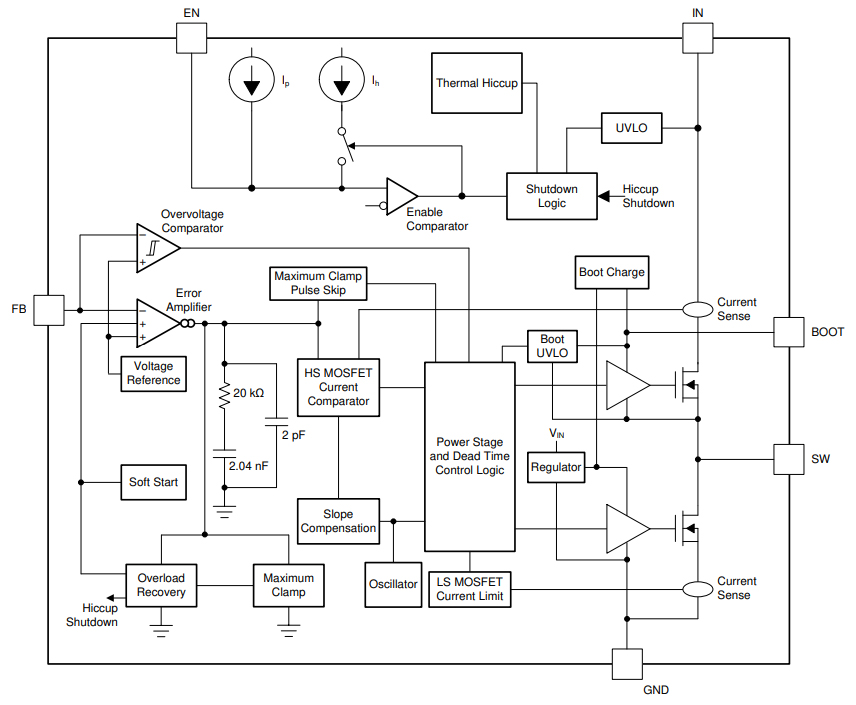

The TPS54302DDCR device provides great power density and a tiny footprint on the PCB by integrating MOSFETs and using the SOT-23 packaging. Advanced Eco-mode implementation increases light load efficiency while decreasing power loss. The frequency spread-spectrum operation is used in the TPS54302 gadget to reduce EMI. A cycle-by-cycle current limit in both high-side MOSFETs safeguards the converter in an overload condition, and this is supplemented by a freewheeling current limit in the low-side MOSFET, which prevents current runaway. If the overcurrent condition persists, hiccup mode protection is activated for longer than the present time.

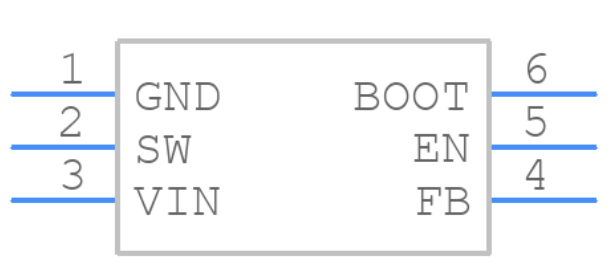

Symbol

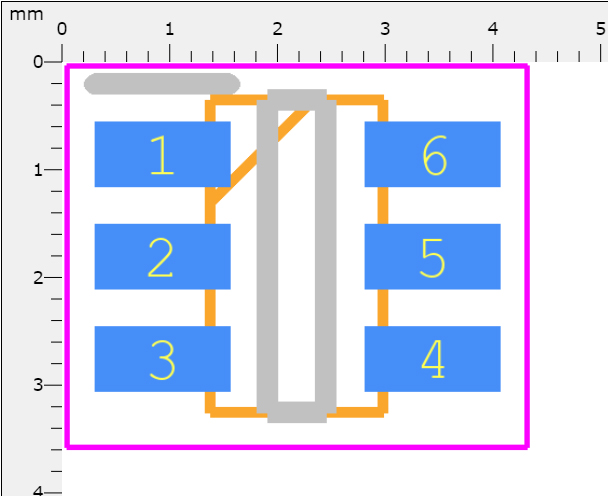

Foorprint

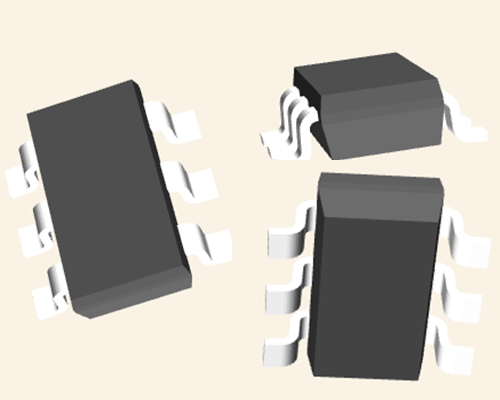

3D Model
• 4.5-V to 28-V wide input voltage range
• Integrated 85-mΩ and 40-mΩ MOSFETs for 3-A,
continuous output current
• Low 2-μA shutdown, 45-μA quiescent current
• Internal 5-ms soft start
• Fixed 400-kHz switching frequency
• Frequency spread spectrum to reduce EMI
• Advanced Eco-mode™ pulse skip
• Peak current-mode control
• Internal loop compensation
• Overcurrent protection for both MOSFETs with
hiccup mode protection
• Overvoltage protection
• Thermal shutdown
• SOT-23 (6) package

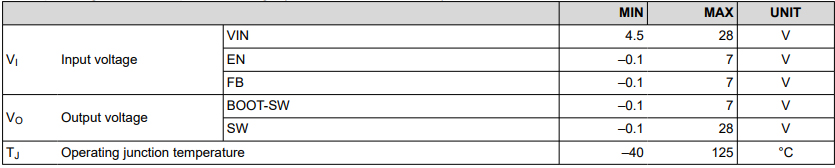

Texas Instruments TPS54302DDCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS54302DDCR.

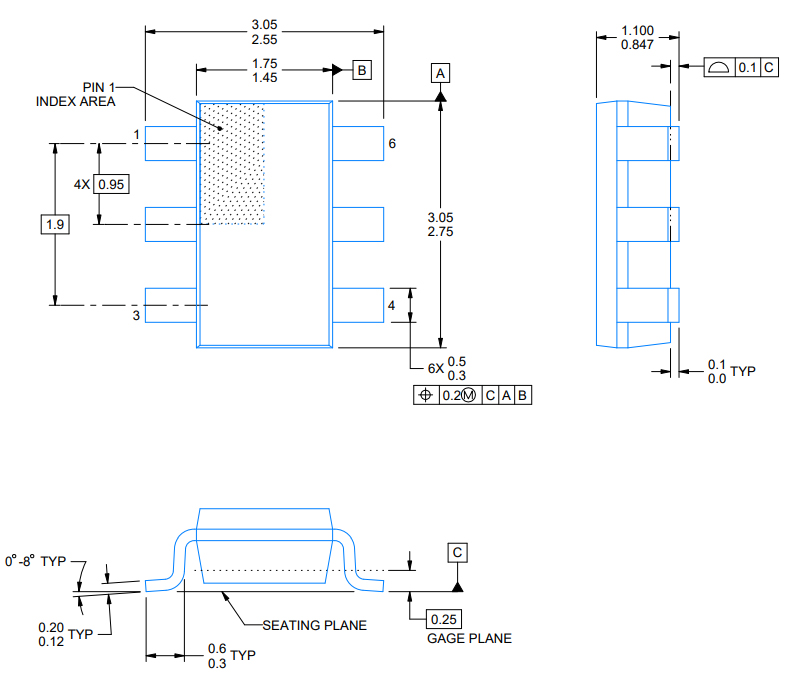

| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 | |
| Surface Mount | YES | |
| Number of Pins | 6Pins | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95mm | |
| Base Part Number | TPS54302 | |
| Function | Step-Down | |
| Number of Outputs | 1Output | |
| Output Type | Adjustable | |
| Voltage - Input (Min) | 4.5V | |
| Input Voltage-Nom | 12V | |
| Max Supply Voltage | 28V | |
| Min Supply Voltage | 4.5V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Nominal Supply Current | 45μA | |
| Output Configuration | Positive | |
| Quiescent Current | 40μA | |
| Voltage - Output (Min/Fixed) | 0.596V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Topology | Buck | |
| Control Mode | CURRENT-MODE | |
| Frequency - Switching | 400kHz | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | Yes | |
| Max Duty Cycle | 100 % | |
| Max Junction Temperature (Tj) | 125°C | |
| Height | 1.1mm | |
| Length | 2.9mm | |
| Width | 1.6mm | |
| Thickness | 870μm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• 12-V, 24-V distributed power-bus supply
• Industry application
– White goods
• Consumer application
– Audio
– STB, DTV
– Printer

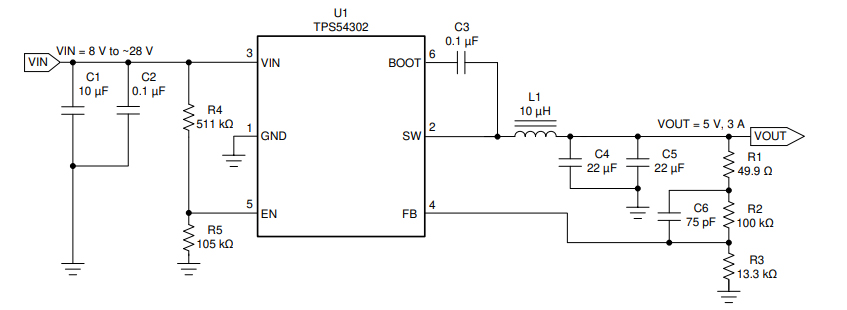

TPS54302DDCR Typical Application Circuit
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Download datasheets and manufacturer documentation for TPS54302DDCR
