IC REG BUCK ADJ 8A 18VQFN The TPS54824RNVR is a 17-V, 8-A synchronous step-down converter in a 3.5 mm by 3.5 mm HotRodTM QFN package. The article is going to introduce the features, pinout, and other details of the component.
61
Jan 27, 2022
Rose Gregory
TPS54824RNVR Supplier and TI TPS54824RNVT Distributor in China - Rantle East Electronic
The TPS54824RNVR is a 17-V, 8-A synchronous step-down converter in a 3.5 mm by 3.5 mm HotRodTM QFN package. The article is going to introduce the features, pinout, and other details of the component.
TPS54824RNVR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $53.9 | $53.9 |
| 10+ | $41.12 | $411.2 |
| 25+ | $37.928 | $948.2 |
| 100+ | $34.422 | $3442.2 |
| 250+ | $32.9408 | $8235.2 |

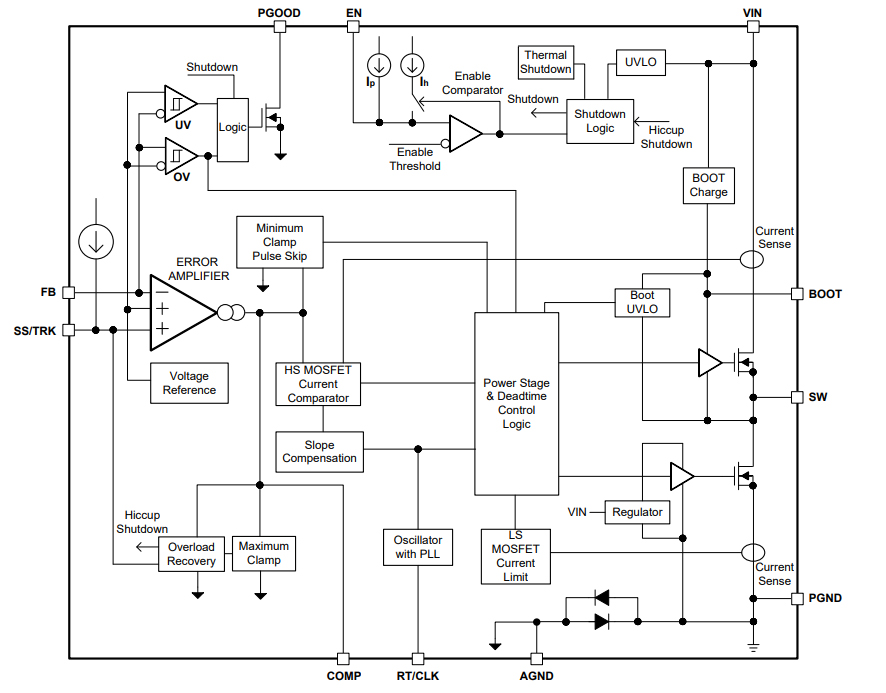

The TPS54824RNVR is a synchronous step-down (buck) converter with two integrated n-channel MOSFETs that operates at 17 V and 8 A. The device employs a constant frequency, peak current mode control to increase performance during line and load transients, while also simplifying external frequency adjustment. When selecting the output filter components, the switching frequency range of 200 kHz to 1600 kHz enables for efficiency and size optimization. A resistor to ground on the RT/CLK pin is used to alter the switching frequency. In addition, the TPS54824 contains an internal phase lock loop (PLL) attached to the RT/CLK pin, which can be used to synchronize the switching cycle to the falling edge of an external system clock.

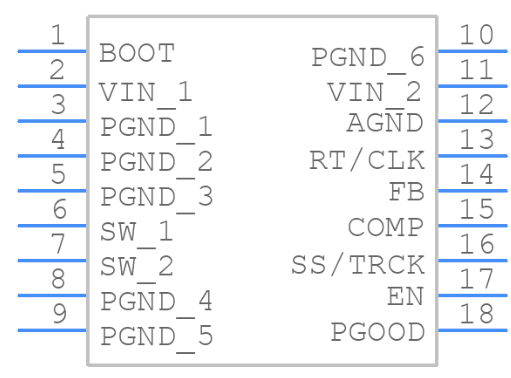

Symbol

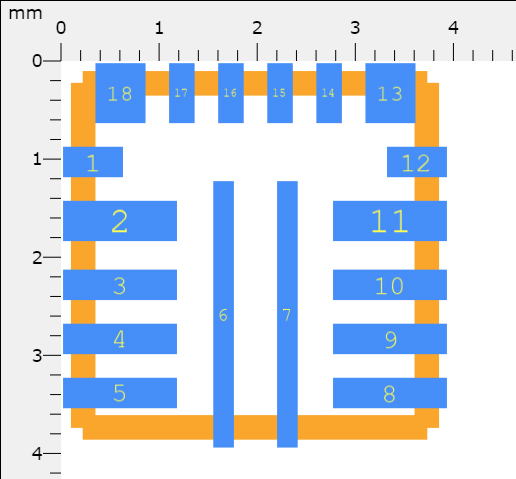

Footprint

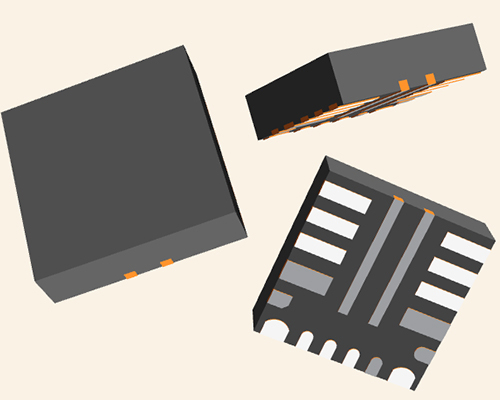

3D Model
• Small 3.5-mm x 3.5-mm HotRod™ QFN Package
• Integrated 14.1-mΩ and 6.1-mΩ MOSFETs
• Peak Current Mode Control with Fast Transient Response
• 200-kHz to 1.6-MHz Fixed Switching Frequency
• Synchronizes to External Clock
• 0.6-V Voltage Reference ±0.85% Over Temperature
• 0.6-V to 12-V Output Voltage Range
• Hiccup Current Limit
• Safe Startup into Pre-Biased Output Voltage
• Adjustable Soft-start and Power Sequencing
• Adjustable Input Under Voltage Lockout
• 3-µA Shutdown Current
• Power Good Output Monitor for Undervoltage and Overvoltage
• Output Overvoltage Protection
• Non-latch Thermal Shutdown Protection
• –40°C to 150°C Operating Junction Temperature
• Supported at the WEBENCH® Design Center
Texas Instruments TPS54824RNVR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS54824RNVR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 18-VFQFN | |
| Surface Mount | YES | |
| Number of Pins | 18Pins | |
| Operating Temperature | -40°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | SWIFT™ | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 18Terminations | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | QUAD | |
| Terminal Form | NO LEAD | |
| Base Part Number | TPS54824 | |
| Function | Step-Down | |
| Number of Outputs | 1Output | |
| Output Voltage | 12V | |
| Output Type | Adjustable | |
| Voltage - Input (Min) | 4.5V | |
| Input Voltage-Nom | 12V | |
| Max Supply Voltage | 17V | |
| Min Supply Voltage | 4.5V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Nominal Supply Current | 580μA | |
| Output Configuration | Positive |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Output (Min/Fixed) | 0.6V | |
| Topology | Buck | |
| Control Mode | CURRENT-MODE | |
| Frequency - Switching | 200kHz~1.6MHz | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | Yes | |
| Max Duty Cycle | 98 % | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1mm | |
| Length | 3.5mm | |
| Width | 900μm | |
| Thickness | 3.5mm | |
| RoHS Status | ROHS3 Compliant |
• Telecom and Wireless Infrastructure
• Industrial Automated Test Equipment
• Enterprise Switching and Storage Applications
• High-Density Distributed Power Systems

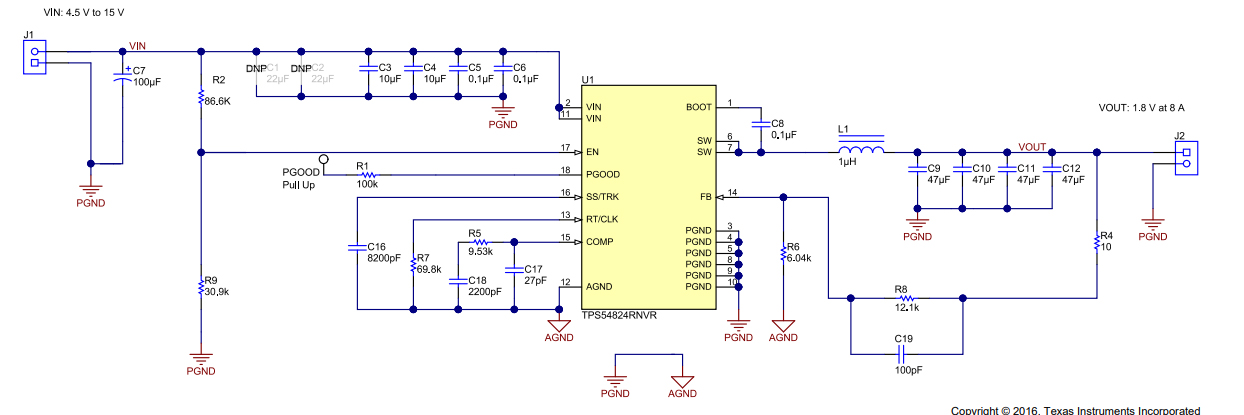

TPS54824RNVR Typical Application Circuit
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
