TPS62130RGTR：DC-DC Converters, Pinout, Step-Down

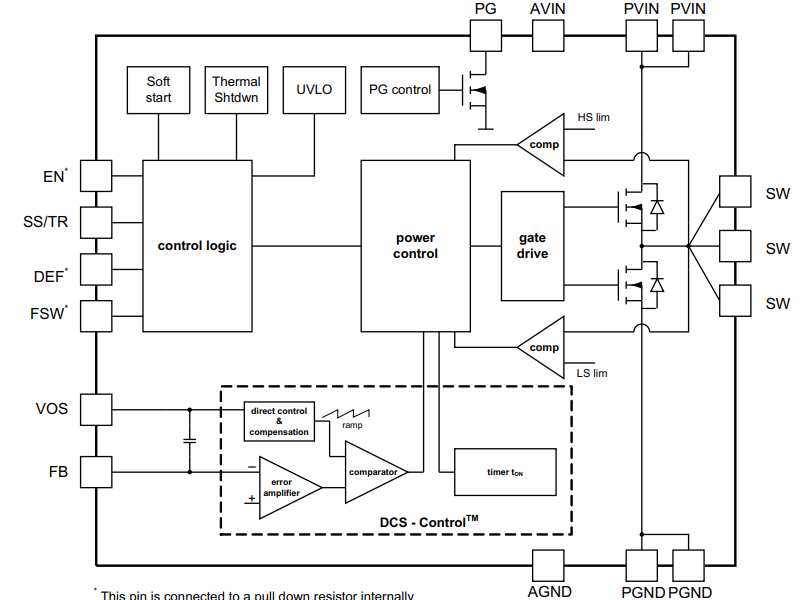

The TPS62130RGTR of synchronous step-down DC-DC converters is designed for high power density applications. By using the DCSControl topology, a high switching frequency of generally 2.5 MHz permits the use of small inductors and delivers fast transient response as well as good output voltage accuracy.

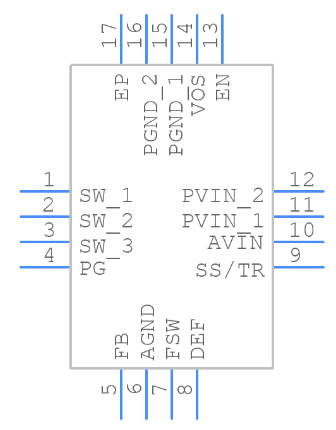

Symbol

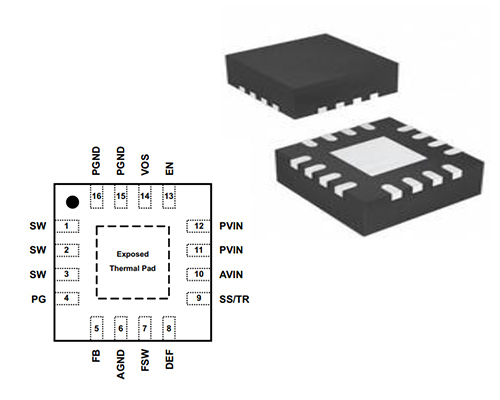

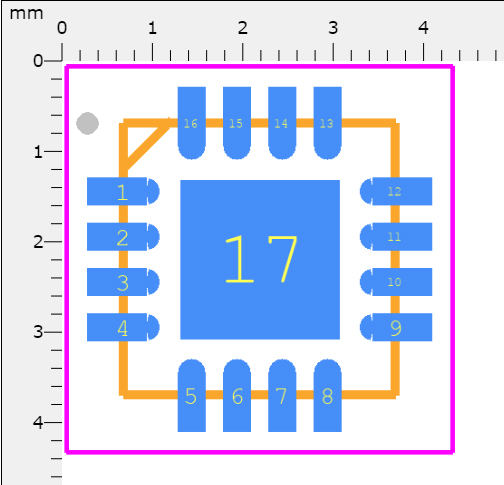

Footprint

3D Model

• DCS-Control™ topology

• Input voltage range: 3 V to 17 V

• Up to 3-A output current

• Adjustable output voltage from 0.9 V to 6 V

• Pin-selectable output voltage (nominal, + 5%)

• Programmable soft start and tracking

• Seamless power save mode transition

• Quiescent current of 17 µA (typical)

• Selectable operating frequency

• Power-good output

• 100% duty cycle mode

• Short circuit protection

• Overtemperature protection

• Pin-to-pin compatible with the TPS62140 and TPS62150

• Available in a 3-mm × 3-mm, QFN-16 package

• Use the TPS82130 for faster designs

NA TPS62130RGTR technical specifications, attributes, parameters and parts with similar specifications to NA TPS62130RGTR.

• Standard 12-V rail supplies

• POL supply from single or multiple Li-ion battery

• Solid-state drives

• Embedded systems

• LDO replacement

• Mobile PCs, tablets, modems, cameras

• Server, microserver

• Data terminal, point of sales (ePOS)

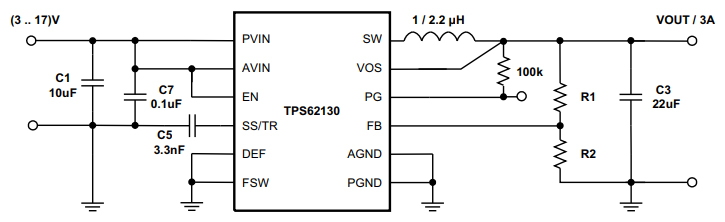

TPS62130RGTR Typical Application Circuits
