Based on the DCS-ControlTM topology, the TPS6217x is a high efficiency synchronous step-down DC/DC converter. The article is going to introduce its features, applications, etc.
70
Jan 31, 2022
Winston Ann
TPS62175DQCR(62175) Supplier and TI TPS62175DQCT Distributor in China - Rantle East Electronic
Based on the DCS-ControlTM topology, the TPS6217x is a high efficiency synchronous step-down DC/DC converter. The article is going to introduce its features, applications, etc.
TPS62175DQCR
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $17.1 | $17.1 |
| 10+ | $12.51 | $125.1 |
| 25+ | $11.372 | $284.3 |
| 100+ | $10.116 | $1011.6 |
| 250+ | $9.5168 | $2379.2 |
| 500+ | $9.1556 | $4577.8 |
| 1000+ | $9.1035 | $9103.5 |

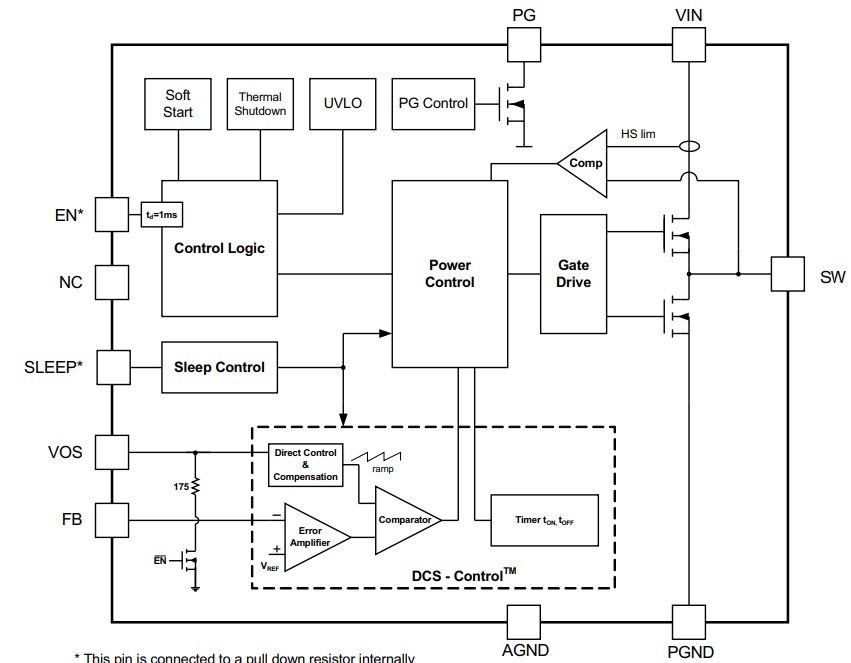

The TPS62175DQCR synchronous switch mode power converters use DCS-ControlTM (Direct Control with Seamless Transition into Power Save Mode), an advanced regulation topology that combines the benefits of hysteretic, voltage mode, and current mode control, as well as an AC loop directly associated with the output voltage. This control loop immediately transmits information about output voltage changes to a rapid comparator stage. It determines the switching frequency, which is constant under steady-state conditions, and offers immediate reaction to variations in dynamic load.

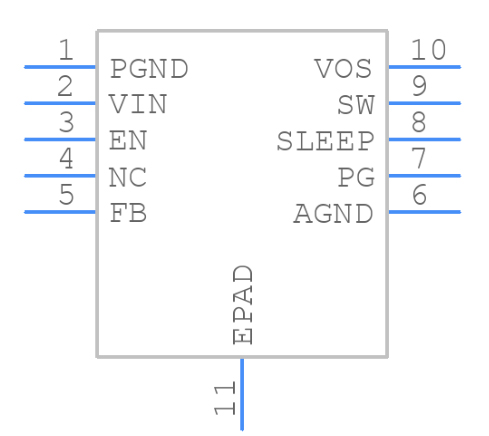

Symbol

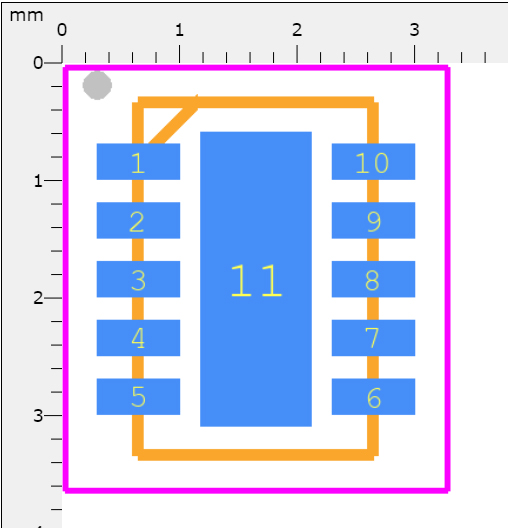

Footprint

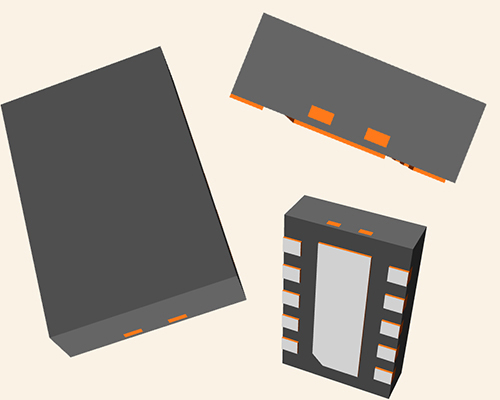

3D Model
• DCS-Control™ Topology

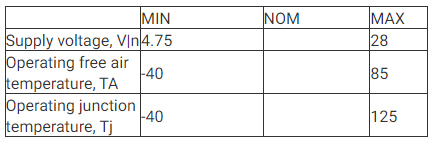

• Input Voltage Range 4.75 V to 28 V
• Quiescent Current Typically 4.8 µA (Sleep Mode)
• 100% Duty Cycle Mode
• Active Output Discharge
• Power Good Output
• Output Current of 500 mA
• Output Voltage Range 1 VDC to 6 V
• Switching Frequency of Typically 1 MHz
• Seamless Power Save Mode Transition
• Undervoltage Lockout
• Short Circuit Protection
• Over Temperature Protection
• Available in 2-mm × 3-mm 10-pin WSON Package
Texas Instruments TPS62175DQCR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS62175DQCR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Gold | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-WFDFN Exposed Pad | |
| Number of Pins | 10Pins | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Series | DCS-Control™ | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 10Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Terminal Form | NO LEAD |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Supply Voltage | 12V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | TPS62175 | |
| Function | Step-Down, Step-Up/Step-Down | |
| Number of Outputs | 1Output | |
| Qualification Status | Not Qualified | |
| Output Voltage | 6V | |
| Output Type | Adjustable | |
| Max Output Current | 500mA | |
| Input Voltage-Nom | 12V | |
| Max Supply Voltage | 28V | |
| Min Supply Voltage | 4.75V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Nominal Supply Current | 22μA | |
| Output Configuration | Positive or Negative | |
| Quiescent Current | 4.8μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Output Voltage | 6V | |
| Voltage - Output (Min/Fixed) | 1V | |
| Topology | Buck, Buck-Boost | |
| Control Mode | CURRENT/VOLTAGE-MODE | |
| Frequency - Switching | 1MHz | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | Yes | |
| Min Output Voltage | 1V | |
| Max Duty Cycle | 100 % | |
| Max Junction Temperature (Tj) | 125°C | |
| Ambient Temperature Range High | 85°C | |
| Height | 800μm | |
| Length | 2mm | |
| Width | 3mm | |
| Thickness | 750μm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• General 12 V / 24 V Point Of Load Supply
• Ultra Mobile PC, Embedded PC
• Low Power Supply for Microprocessor
• High Efficiency LDO Alternative
• Industrial Sensors

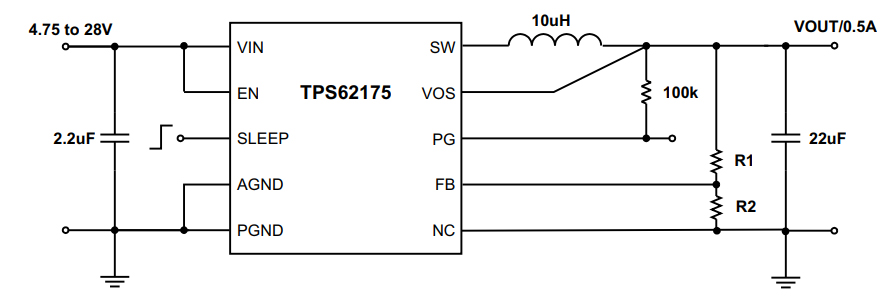

TPS62175DQCR Typical Application Circuit
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.

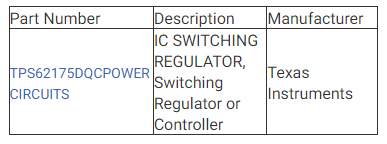

Download datasheets and manufacturer documentation for TPS62175DQCR
