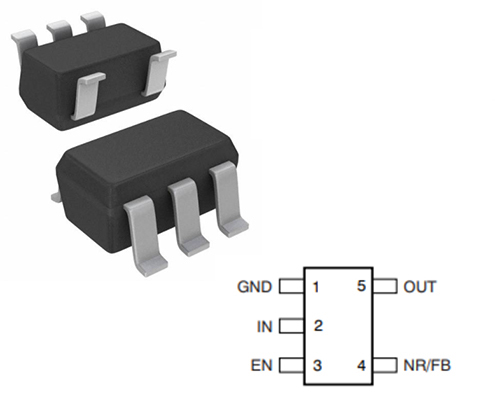

TPS72325DBVR: Regulator, Pinout, Equivalent, Circuit

The TPS72325DBVR is a negative linear voltage regulator with a low dropout and a rated current of 200 mA. It is available with trimmed output voltages ranging from –1.5 V to –5.2 V, as well as an adjustable regulator ranging from –1.2 V to –10 V. It has a low noise floor and a high power-supply rejection ratio (PSRR), making it appropriate for high-sensitivity analog and RF applications. A shutdown option is available, limiting ground current to a maximum of 2 A regardless of temperature or process.

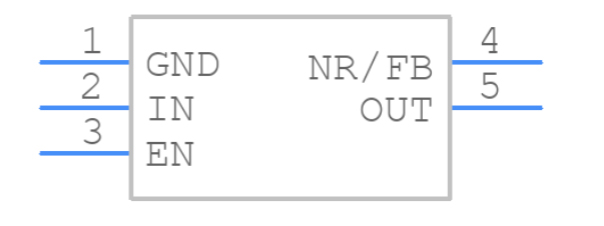

Symbol

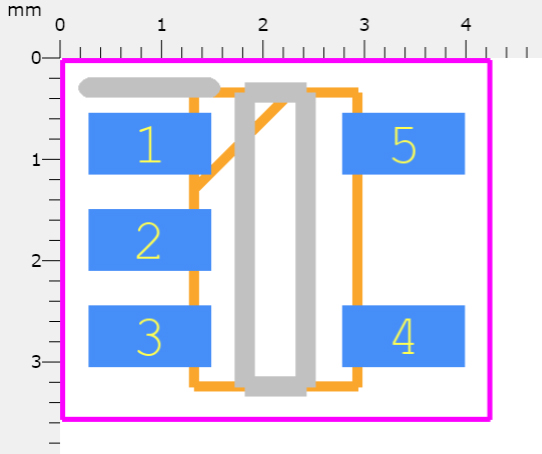

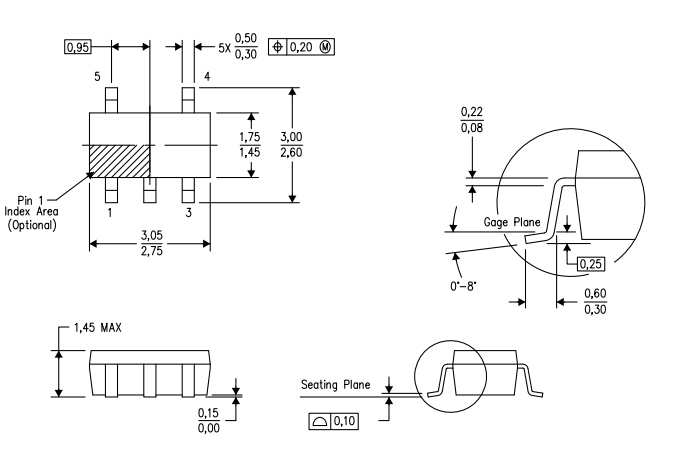

Footprint

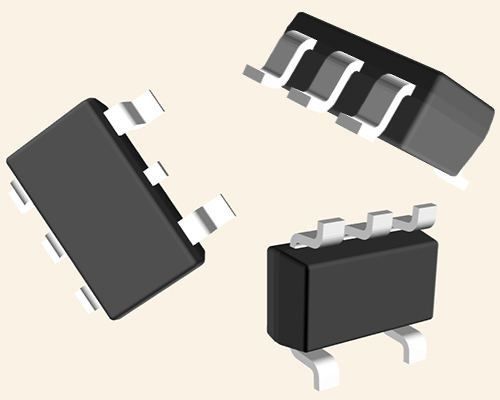

3D Model

• Ultralow Noise: 60 μVRMS Typical

• High PSRR: 65 dB Typical at 1 kHz

• Low Dropout Voltage: 280 mV Typical at 200 mA, 2.5 V

• Available in –2.5-V and Adjustable (–1.2 V to –10 V) Versions

• Stable With a 2.2-μF Ceramic Output Capacitor

• Less Than 2-μA Typical Quiescent Current in Shutdown Mode

• 2% Overall Accuracy (Line, Load, Temperature)

• Thermal and Over-Current Protection

• SOT23-5 (DBV) Package

• SOT-5 (DDC) Package

• Operating Junction Temperature Range: –40°C to 125°C

• Optical Drives

• Optical Networking

• Noise Sensitive Circuitry

• GaAs FET Gate Bias

• Video Amplifiers

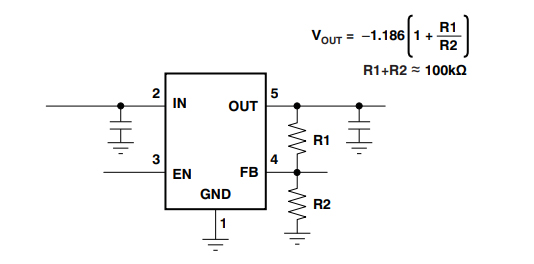

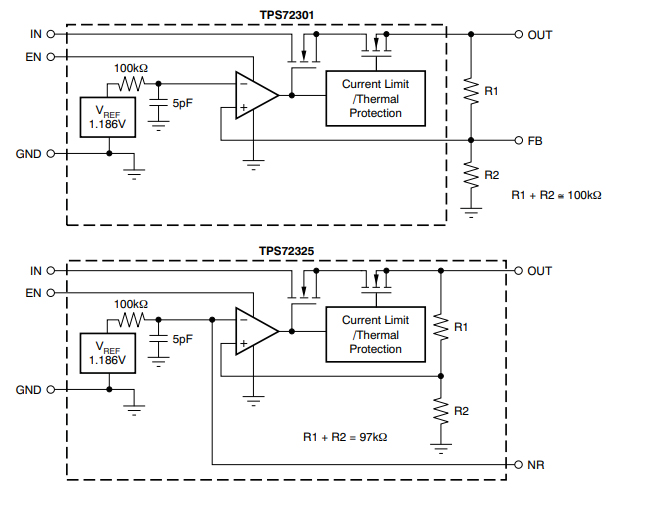

TPS72325DBVR Typical Application Circuit
