TPS74801DRCR Low-Dropout Linear Regulator: Pinout, Datasheet

The TPS74801DRCR low-dropout (LDO) linear regulator is a simple and reliable power management solution for a wide range of applications. User-programmable soft-start reduces capacitive inrush current on startup, minimizing stress on the input power supply. The soft-start is monotonic and suitable for powering a wide range of processors and ASICs. The enable input and power good output make it simple to sequence with external regulators. Because of this comprehensive flexibility, the user can create a solution that matches the sequencing needs of FPGAs, DSPs, and other applications with unique start-up requirements.

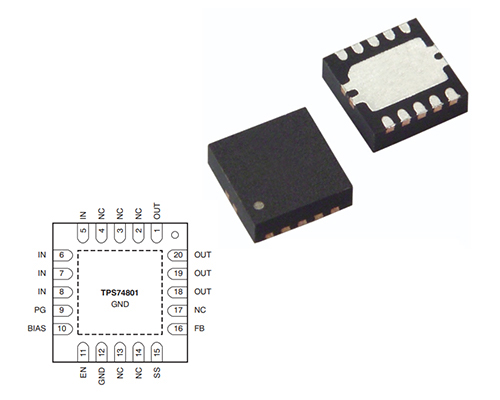

Symbol

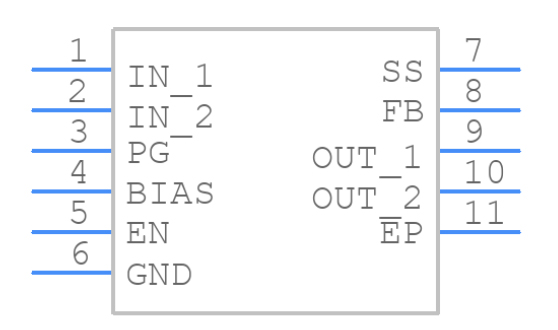

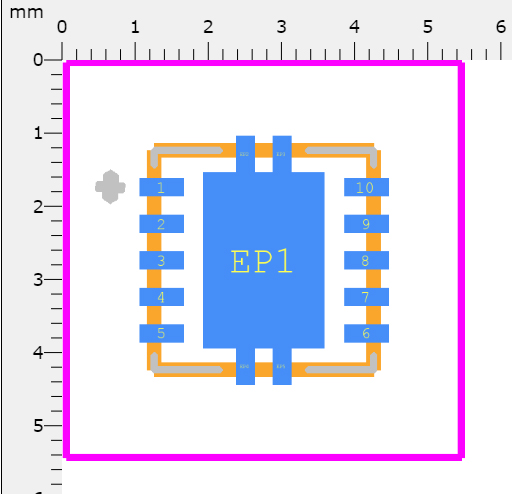

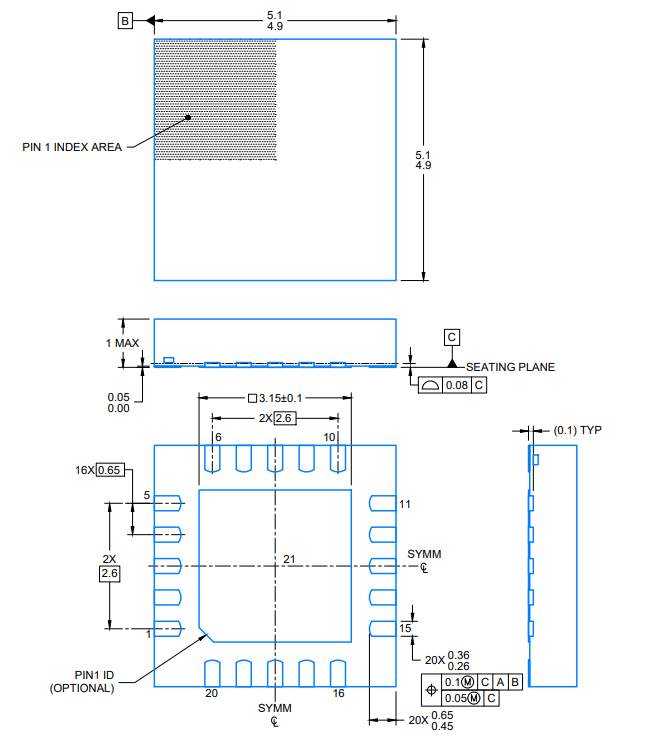

Footprint

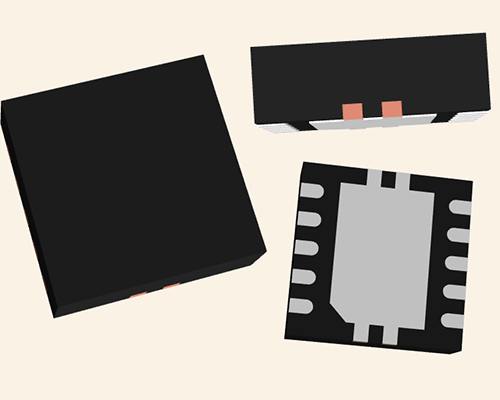

3D Model

• VOUT Range: 0.8 V to 3.6 V

• Ultralow VIN Range: 0.8 V to 5.5 V

• VBIAS Range 2.7 V to 5.5 V

• Low Dropout: 60 mV Typical at 1.5 A, VBIAS = 5 V

• Power Good (PG) Output Allows Supply Monitoring or Provides a Sequencing Signal for Other Supplies

• 2% Accuracy Over Line, Load, and Temperature

• Programmable Soft-Start Provides Linear Voltage Startup

• VBIAS Permits Low VIN Operation With Good Transient Response

• Stable With Any Output Capacitor ≥ 2.2 μF

• Available in a Small, 3-mm × 3-mm × 1-mm VSON-10 and 5 × 5 QFN-20 Packages

• FPGA Applications

• DSP Core and I/O Voltages

• Post-Regulation Applications

• Applications With Special Start-up Time or Sequencing Requirements

• Hot-Swap and Inrush Controls

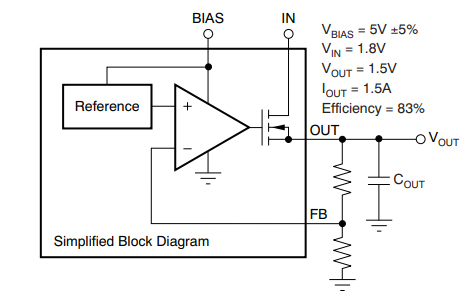

TPS74801DRCR Typical Application Circuit
