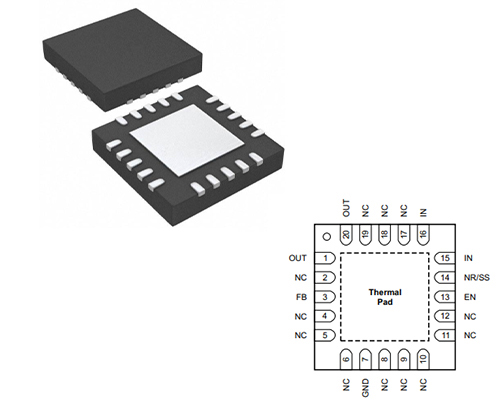

TPS7A33: Regulator, Pinout, Circuit

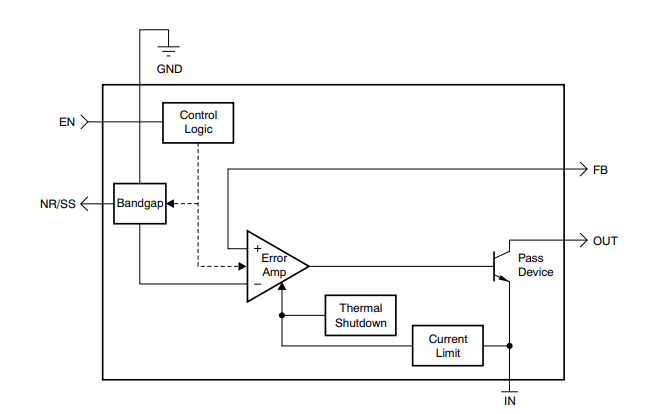

The TPS7A33 is part of a new-generation linear regulator family that employs a novel bipolar technology to provide ultralow noise and very high PSRR levels over a wide input voltage and current range. This device is suited for high-performance analog applications due to these qualities, as well as the external heatsink-capable, high thermal performance TO-220 packaging.

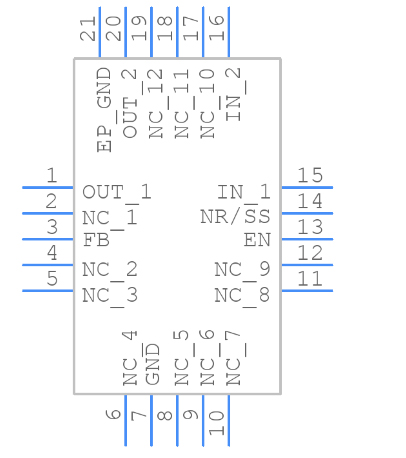

Symbol

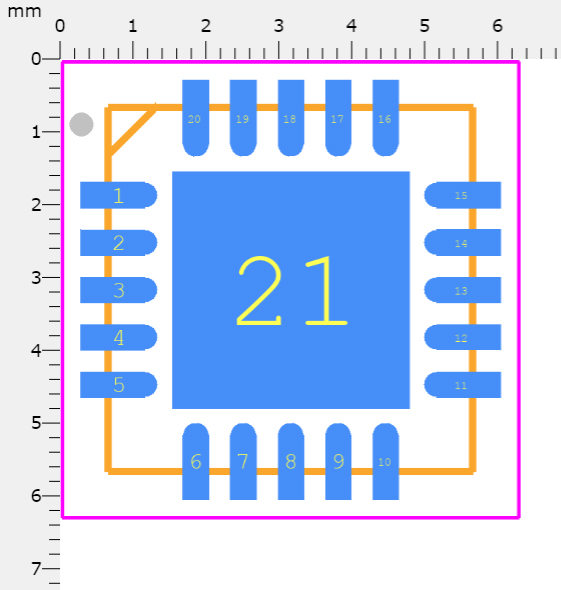

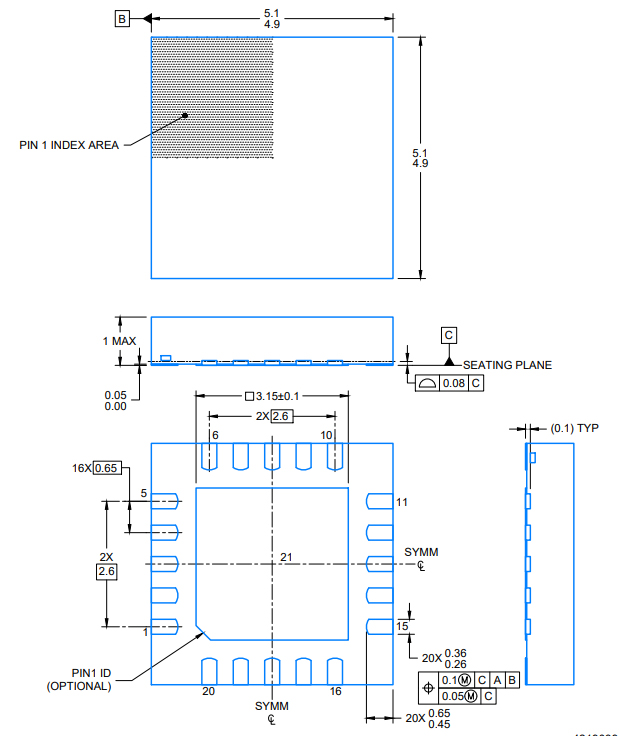

Footprint

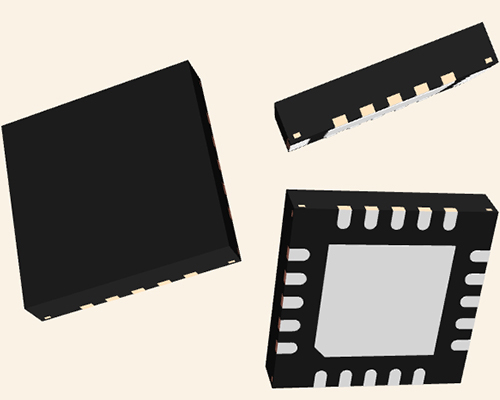

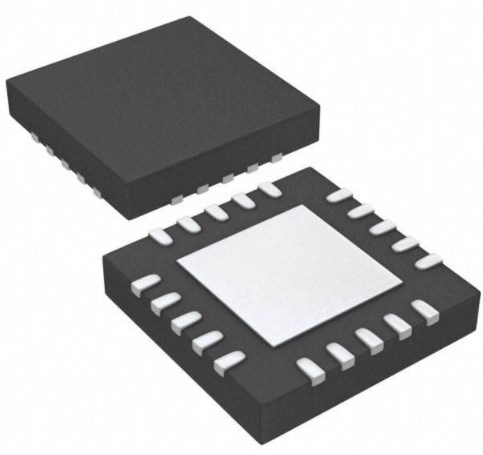

3D Model

• Input Voltage Range: –3 V to –36 V

• Noise:

– 16 μVRMS (10 Hz to 100 kHz)

• Power-Supply Ripple Rejection:

– 72 dB (10 kHz)

• Adjustable Output: –1.18 V to –33 V

• Maximum Output Current: 1 A

• Stable With Ceramic Capacitors ≥ 10 μF

• Built-In Current-Limit and Thermal Shutdown Protection

• Available in an External Heatsink-Capable, High Thermal Performance TO-220 Package

• Operating Temperature Range: –40°C to 125°C

• Supply Rails for Operational Amplifiers, DACs,ADCs, and Other High-Precision Analog Circuitry

• Audio

• Post DC-DC Converter Regulation and Ripple Filtering

• Test and Measurement

• Medical

• Industrial Instrumentation

• Base Stations and Telecom Infrastructure

• 12-V and 24-V Industrial Buses

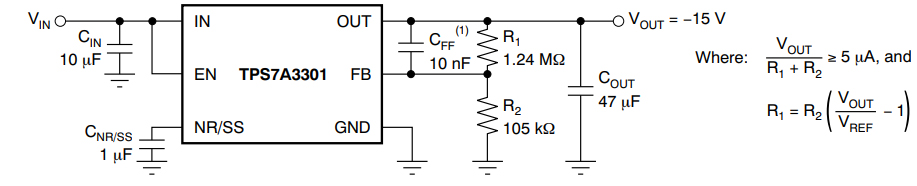

TPS7A33 Typical Application Circuit
