DC DC CONVERTER 0.9-5V
The TPS82130SILT is a MicroSiP power module with a 17-V input and a 3-A step-down converter. The article is going to introduce the features, applications and other details of the device.

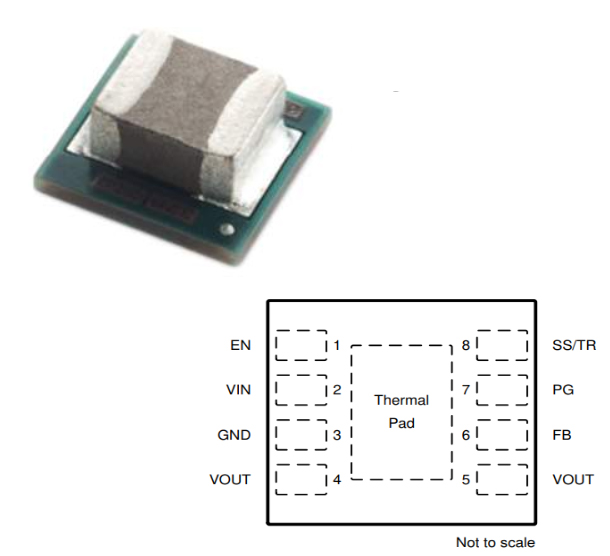

TPS82130SILT
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $71.7 | $71.7 |
| 10+ | $48.37 | $483.7 |
| 100+ | $35.138 | $3513.8 |

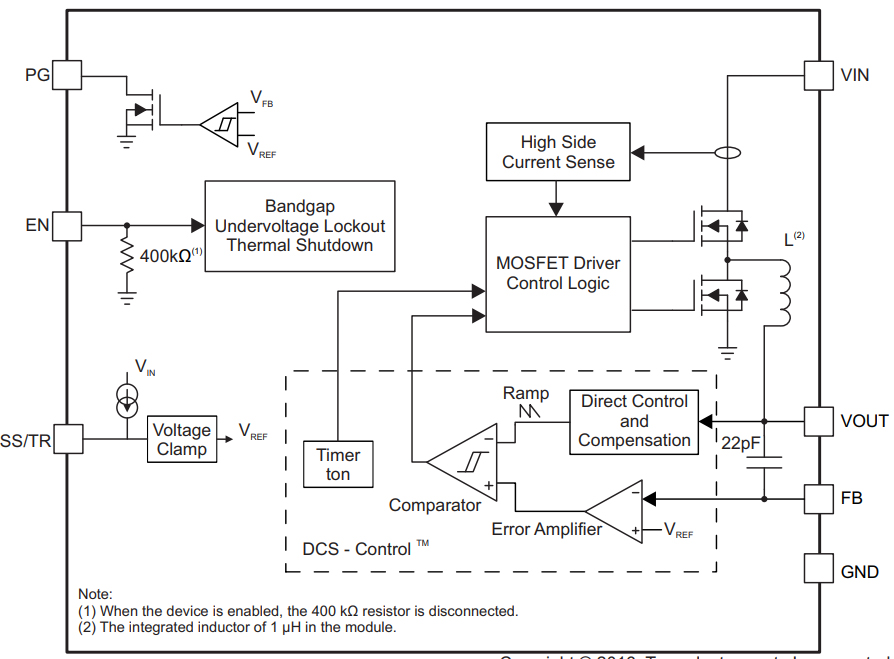

The TPS82130SILT is a MicroSiP power module with a 17-V input and a 3-A step-down converter that is optimized for small solution size and high efficiency. To simplify design, remove external components, and save PCB space, the module incorporates a synchronous step-down converter and an inductor. The low-profile and compact design allows for automated installation using typical surface mount equipment.

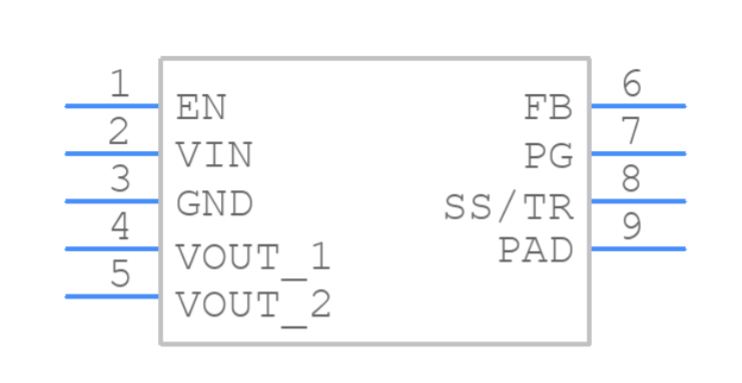

Symbol

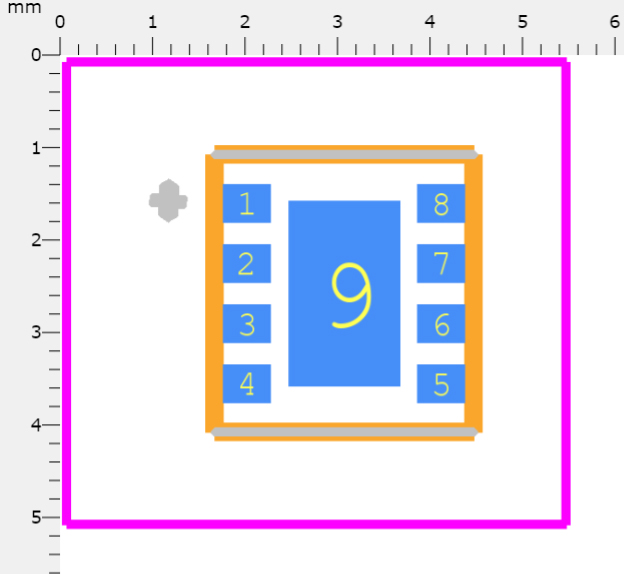

Footprint

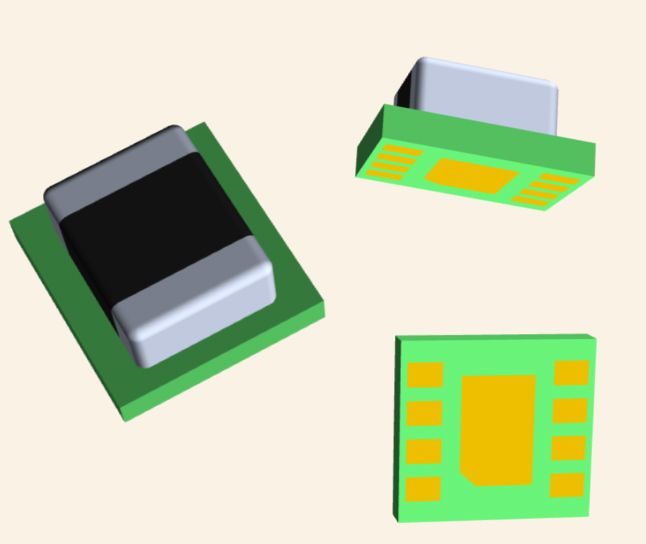

3D Model
• 3-mm × 2.8-mm × 1.5-mm MicroSiP™ package
• 3-V to 17-V input range
• 3-A continuous output current
• DCS-Control™ topology
• Power save mode for light-load efficiency
• 20-µA operating quiescent current
• 0.9-V to 6-V adjustable output voltage
• 100% duty cycle for lowest dropout
• Power-good output
• Programmable soft start-up with tracking
• Thermal shutdown protection
• –40°C to 125°C operating temperature range
• Create a custom design using the TPS82130 with the WEBENCH® Power Design
Texas Instruments TPS82130SILT technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS82130SILT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 16 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SMD Module | |
| Number of Pins | 8Pins | |
| SwitchingFrequency | 2MHz | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Series | MicroSip™ | |
| Size / Dimension | 0.12Lx0.11W x 0.06 H 3.0mmx2.8mmx1.5mm | |
| JESD-609 Code | e1 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 8Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Type | Non-Isolated PoL Module | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Applications | ITE (Commercial) | |
| Additional Feature | ALSO OPERATES IN ADJUSTABLE MODE FROM 0.9 TO 5V | |
| Terminal Position | DUAL | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.65mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | TPS82130 | |
| Number of Outputs | 1Output | |
| Output Voltage | 5V | |
| Max Output Current | 3A | |
| Input Voltage-Nom | 12V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Supply Voltage | 17V | |
| Min Supply Voltage | 3V | |
| Output Current | 3A | |
| Quiescent Current | 20μA | |
| Max Output Voltage | 5V | |
| Control Mode | VOLTAGE-MODE | |
| Control Technique | PULSE WIDTH MODULATION | |
| Min Output Voltage | 900mV | |
| Switcher Configuration | BUCK | |
| Max Duty Cycle | 100 % | |
| Features | OTP | |
| Height | 1.53mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Industrial applications
• Telecom and networking applications
• Solid state drives

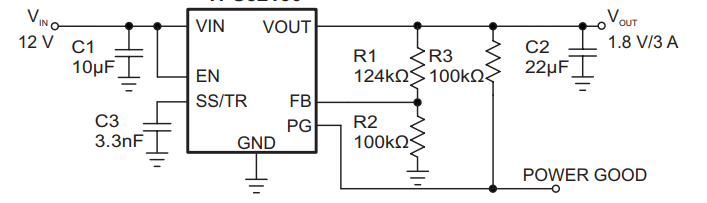

TPS82130SILT Typical Application Circuit
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Download datasheets and manufacturer documentation for TPS82130SILT
