TPS92638QPWPRQ1 LED Lighting Driver: Alternatives, Pinout, Datasheet

TPS92638QPWPRQ1 is a Texas Instruments TPS92638QPWPRQ1 that is distributed by Utmel Electronics. It falls under the category of LED Lighting Drivers.

It is used in a variety of fields, including automotive hybrid, electric, and powertrain systems. Data centers and enterprise computing are examples of enterprise systems. Electronics for personal use Home entertainment and home theater.

And the main parameters of this section are: LED Driver with 24 Segments HTSSOP EP T/R 20-Pin Automotive.

It is also environmentally friendly and RoHS compliant (lead-free / RoHS compliant).

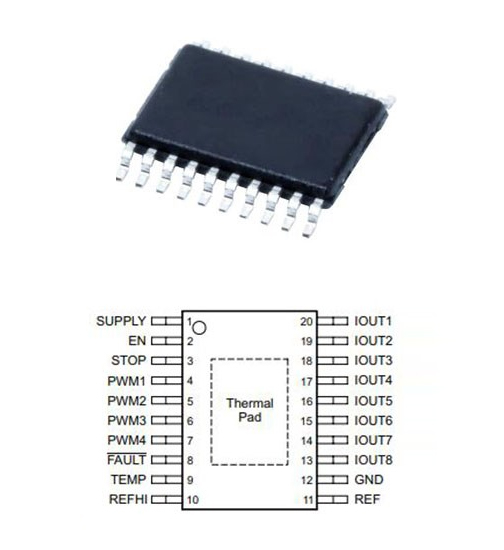

Symbol

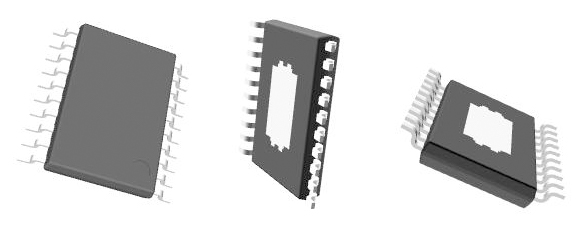

Footprint

3D Models

• Qualified for Automotive Applications

– Device Temperature Grade 1: –40°C to 125°C

Ambient Operating Temperature Range

– Device HBM ESD Classification Level H2

– Device CDM ESD Classification Level C3B

• Functional safety capable

– Documentation available to aid functional safety system design

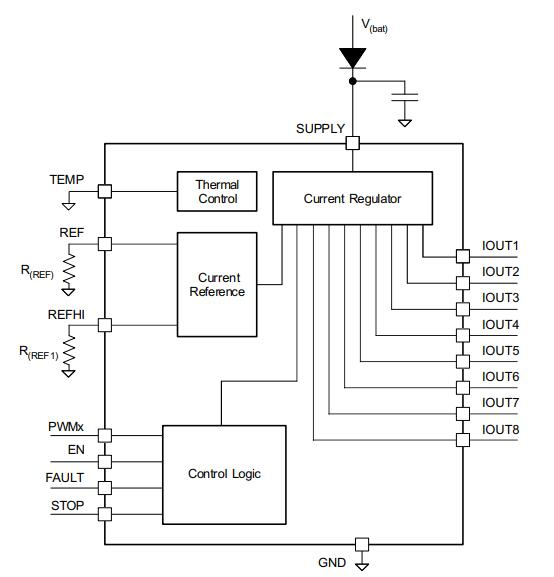

• 8-Channel LED Driver With Analog and PWM Dimming

• Wide Input-Voltage Range: 5 V–40 V

• Adjustable Constant Output Current Set by Reference Resistor

– Maximum Current: 70 mA per Channel

– Maximum Current: 560 mA in Parallel Operation Mode

– Accuracy: ±3% per Channel

– Accuracy: ±4% per Device

• PWM Dimming Input (PWM)

– Turn-ON/OFF Delay Time: 25 µs (Typ.), 45 µs (max.)

• 4-Bank PWM Dimming to Control 8 Channels

• Open- and Shorted-LED Detection With Deglitch

• Fault Pin for Open, Short, and Thermal-Shutdown Failure Reporting, Allowing Parallel Bus Connection of up to 15 Devices

• Temperature-Current Foldback to Prevent Thermal Shutdown, With Programmable

Threshold

• Single Resistor for Stop-Current SetPoint

• Single Resistor for Tail-Current SetPoint

• Operating Junction Temperature Range –40°C to 150°C

• Package: 20-Pin Thermally Enhanced PWP Package (PDSO)

1. Automotive

Advanced driver assistance systems (ADAS)/Body electronics & lighting/Hybrid, electric & powertrain systems/Infotainment & cluster

2. Enterprise systems

Data center & enterprise computing/Enterprise machine/Enterprise projectors

3. Personal electronics

Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearables (non-medical)
