The TSAL6100 is a 2-pin high power Infrared Emitting Diode with high radiant power in GaAlAs multi quantum well (MQW) technology. This passage is going to introduce TSAL6100 from the perspectives of description, CAD models, and datasheet.
TSAL6100
The TSAL6100 is a 2-pin high power Infrared Emitting Diode with high radiant power in GaAlAs multi-quantum well (MQW) technology. It has a good spectral match with Si photodetectors, a 10° angle of half intensity, and a peak wavelength of 940nm. It is suitable for use in high-power infrared remote control units, free air transmission systems, infrared sources for optical counters and card readers, and IR sources for smoke detectors.

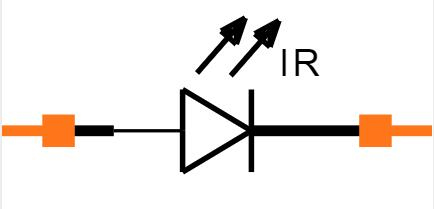

Symbol

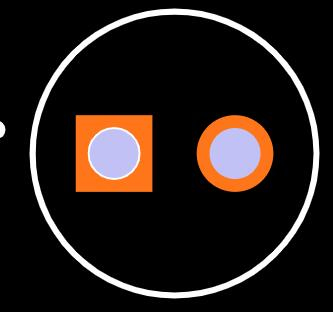

Footprint

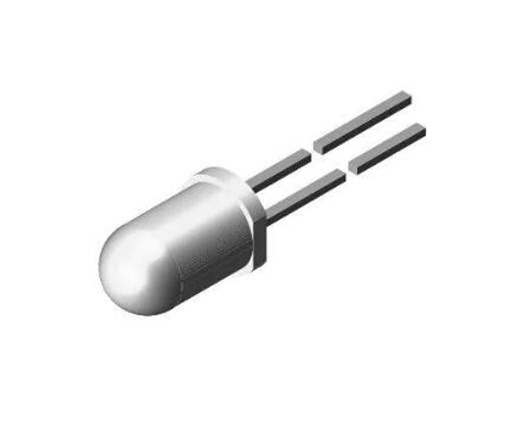

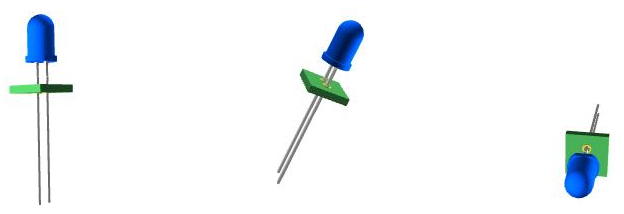

3D Models
• Package type: leaded
• Package form: T-1¾
• Dimensions (in mm): Ø 5
• Peak wavelength: λp = 940 nm
• High reliability
• High radiant power
• High radiant intensity
• Angle of half intensity: ϕ = ± 10°
• Low forward voltage
• Suitable for high pulse current operation
• Good spectral matching with Si photodetectors
Communications equipment
Broadband fixed-line access/Datacom module/Wired networking/Wireless infrastructure
Enterprise systems
Datacenter & enterprise computing/Enterprise machine/Enterprise projectors
Personal electronics
Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearables (non-medical)

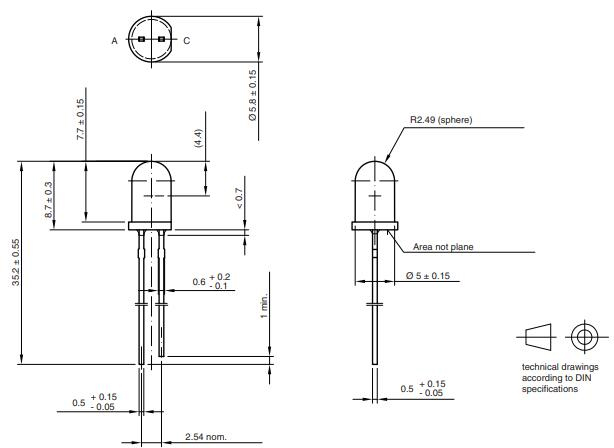

Package Dimensions
Felix Zandman, a Polish-born businessman, founded Vishay Intertechnology, Inc., an American manufacturer of discrete semiconductors and passive electronic components. Vishay manufactures rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors in Israel, Asia, Europe, and the Americas. In 2018, Vishay Intertechnology's revenue was $3.035 billion. Vishay Intertechnology had approximately 24,100 full-time employees as of December 31, 2018.
Vishay is a leading manufacturer of power MOSFETs in the world.
Power electronic applications include portable information appliances, internet communications infrastructure, power integrated circuits, cell phones, and notebook computers.
Vishay Semiconductor Opto Division TSAL6100 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division TSAL6100.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 14 Weeks | |
| Contact Plating | Tin | |
| Mount | PCB, Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | Radial, 5mm Dia (T 1 3/4) | |
| Number of Pins | 2Pins | |
| Number of Elements | 1 Element | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Bulk | |
| Published | 2005 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Type | Infrared (IR) | |
| Max Operating Temperature | 85°C | |
| Min Operating Temperature | -40°C | |
| Power Rating | 210mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Rated DC | 2.6V | |
| Max Power Dissipation | 160mW | |
| Orientation | Top View | |
| Depth | 5.8mm | |
| Lead Length | 25.7mm | |
| Operating Supply Voltage | 1.6V | |
| Voltage | 5V | |
| Current | 1A | |
| Power Dissipation | 160mW | |
| Voltage - Forward (Vf) (Typ) | 1.35V | |
| Viewing Angle | 20° | |
| Forward Current | 100mA | |
| Lens Style | Circular, Colored | |
| Test Current | 100mA | |
| Rise Time | 800ns | |
| Forward Voltage | 1.35V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Fall Time (Typ) | 800 ns | |
| Reverse Voltage | 5V | |
| Current - DC Forward (If) (Max) | 100mA | |
| Number of LEDs | 1LED | |
| Max Junction Temperature (Tj) | 100°C | |
| Peak Wavelength | 940 nm | |
| Ambient Temperature Range High | 85°C | |
| Radiant Intensity (Ie) Min @ If | 80mW/sr @ 100mA | |
| Height | 8.7mm | |
| Length | 5.8mm | |
| Width | 5.8mm | |
| REACH SVHC | Unknown | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
