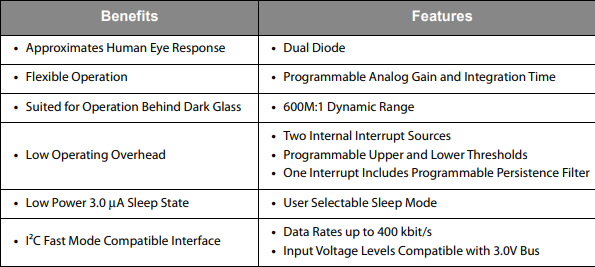

The TSL2591 is a very high-sensitivity light-to-digital converter. This article enforces datasheet, pinout, benefits, applications, and other details about TSL2591.
TSL25911FN
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $1.61485 | $1.61 |
| 10+ | $1.52344 | $15.23 |
| 100+ | $1.43721 | $143.72 |
| 500+ | $1.35586 | $677.93 |
| 1000+ | $1.27911 | $1279.11 |

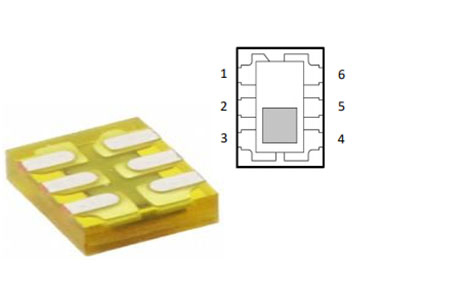

Symbol
Footprint

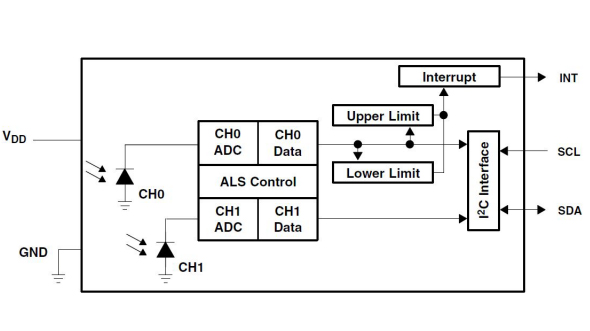

The TSL2591 is a very high-sensitivity light-to-digital converter that transforms light intensity into a digital signal output capable of a direct I2C interface. The device combines one broadband photodiode (visible plus infrared) and one infrared-responding photodiode on a single CMOS integrated circuit.
ams TSL25911FN technical specifications, attributes, parameters and parts with similar specifications to ams TSL25911FN.
ams TSL25911FN technical specifications, attributes, parameters and parts with similar specifications to ams TSL25911FN.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 24 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-WFDFN | |
| Number of Pins | 4Pins | |
| Operating Temperature | -30°C~70°C | |
| Packaging | Tape & Reel (TR) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Type | Ambient | |
| Voltage - Supply | 2.7V~3.6V | |
| Output Type | I2C | |
| Operating Supply Voltage | 3V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Bus Width | 16b | |
| Max Frequency | 400kHz | |
| Wavelength | 850 nm | |
| Proximity Detection | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |

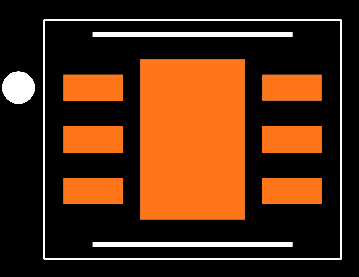

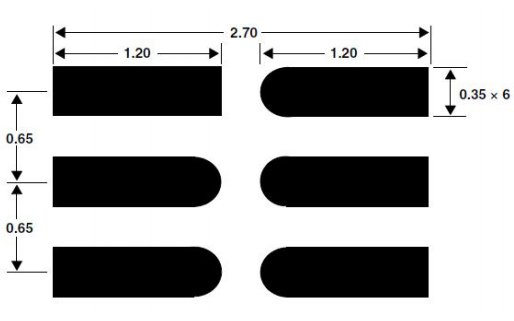

Suggested land pattern based on the IPC-7351B Generic Requirements for Surface Mount Design and Land Pattern Standard（2010）for the small outline no-lead(SON) package is shown in the following figure.
The figure shows a typical hardware application circuit.
