TSOP4838: Description, datasheet, and features

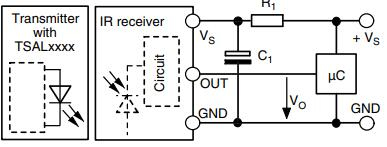

Vishay's TSOP4838 is a miniaturized infrared receiver module for infrared remote control systems. A PIN diode and a preamplifier are mounted on a lead frame, and an IR filter is housed in an epoxy package. For decoding, the demodulated output signal can be directly connected to a microprocessor. This device is frequently used for remote control.

• Improved shielding against EMI

• Transmission range of 45m

• Improved immunity against ambient light

• Carrier frequency of 38KHz

• Directivity of 45°

• Supply current of 950µA

• Operating temperature range from -25°C to 85°C

• Improved immunity against HF and RF noise

• Low supply current

• Photo detector and preamplifier in one package

• Internal filter for PCM frequency

• Supply voltage: 2.5 V to 5.5 V

• Improved immunity against optical noise

• Insensitive to supply voltage ripple and noise

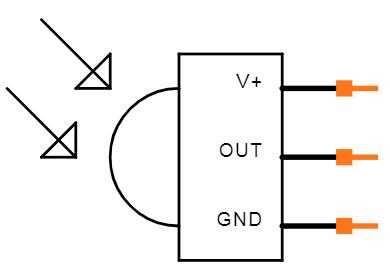

Symbol

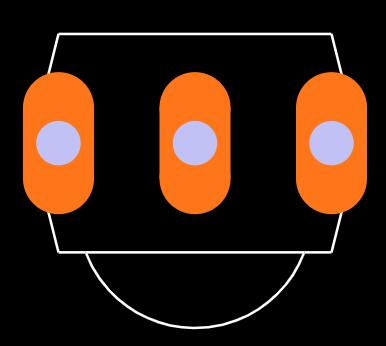

Footprint

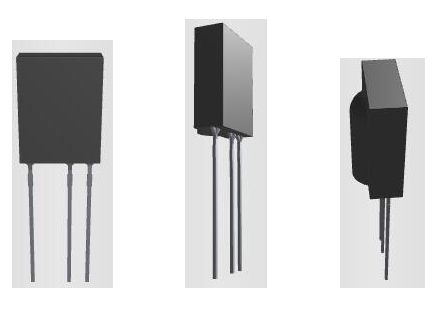

 3D Models

Felix Zandman, a Polish-born businessman, founded Vishay Intertechnology, Inc., an American manufacturer of discrete semiconductors and passive electronic components. Vishay manufactures rectifiers, diodes, MOSFETs, optoelectronics, selected integrated circuits, resistors, capacitors, and inductors in Israel, Asia, Europe, and the Americas. In 2018, Vishay Intertechnology's revenue was $3.035 billion. Vishay Intertechnology had approximately 24,100 full-time employees as of December 31, 2018.

Vishay is a leading manufacturer of power MOSFETs in the world.

Power electronic applications include portable information appliances, internet communications infrastructure, power integrated circuits, cell phones, and notebook computers.

Vishay Semiconductor Opto Division TSOP4838 technical specifications, attributes, parameters and parts with similar specifications to Vishay Semiconductor Opto Division TSOP4838.
