TXS0104ERGYR is a 4-Bit Bidirectional Voltage-Level Translator For Open-Drain and Push-Pull Applications. This article mainly covers its datasheet, application, pinout and more details about TXS0104ERGYR.
TXS0104ERGYR: 4-Bit Bidirectional Voltage-Level Translator, Datasheet
IC TRNSLTR BIDIRECTIONAL 14VQFN TXS0104ERGYR is a 4-Bit Bidirectional Voltage-Level Translator For Open-Drain and Push-Pull Applications. This article mainly covers its datasheet, application, pinout and more details about TXS0104ERGYR.
95
Mar 3, 2022
Felix Becky

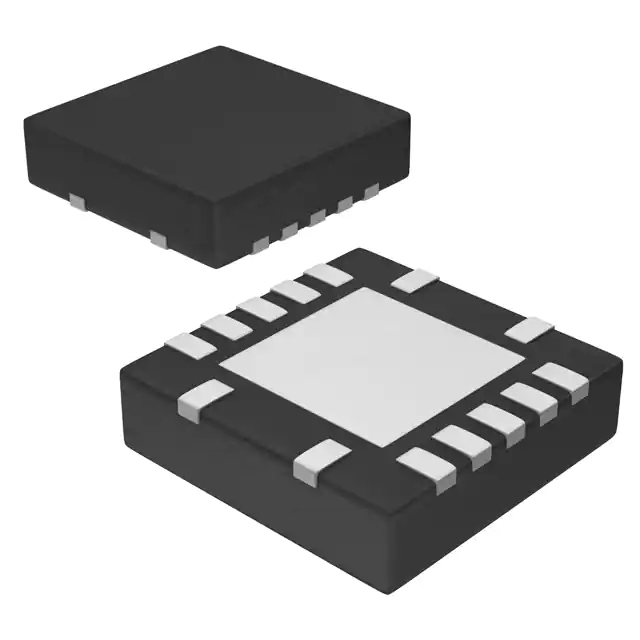

TXS0104ERGYR
50111In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.92717 | $0.93 |
| 10+ | $0.87469 | $8.75 |
| 100+ | $0.82518 | $82.52 |
| 500+ | $0.77847 | $389.24 |
| 1000+ | $0.73441 | $734.41 |
Unit Price:$0.92717
Subtotal: $0.93
Quick Links

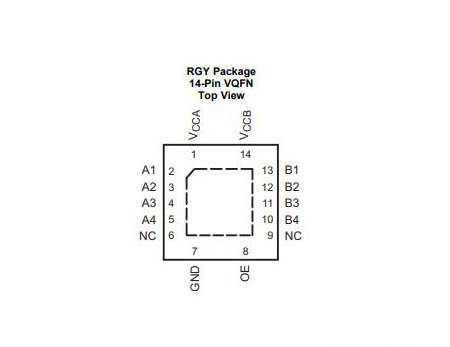

TXS0104ERGYR Pinout
TXS0104ERGYR Pinout
TXS0104ERGYR CAD Model

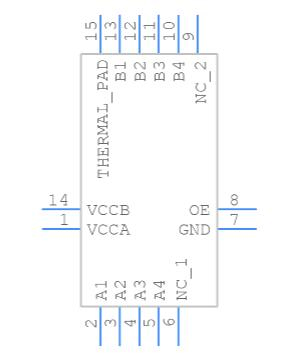

Symbol
TXS0104ERGYR Symbol

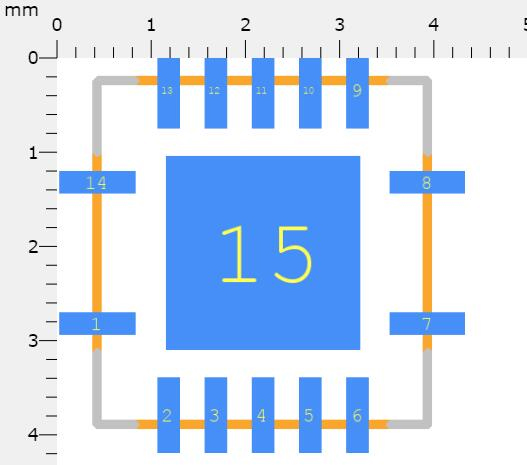

Footprint
TXS0104ERGYR Footprint

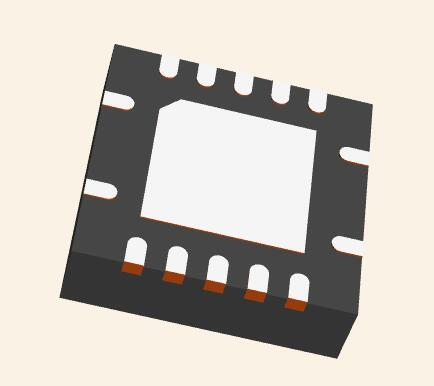

3D Model
TXS0104ERGYR 3D Model
TXS0104ERGYR Overview
This 4-bit non-inverting translator, TXS0104ERGYR uses two separate configurable power-supply rails. The A port is designed to track VCcA-VccA accepts any supply voltage from 1.65 V to 3.6 V. VCCA must be less than or equal to VccB. The B port is designed to track VccB- VccB accepts any supply voltage from 2.3 V to 5.5 V. This allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state.
The TXS0104ERGYR is designed so that the OE input circuit is supplied by VccA-To ensure the high-impedance state during power-up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.
TXS0104ERGYR Feature
-
No Direction-Control Signal Needed
-
Max Data Rates
- 24 Mbps (Push-Pull)
- 2 Mbps (Open Drain)
-
Available in the Texas Instruments NanoFreeTM Package
-
1.65Vto3.6VonAportand2.3Vto5.5VonB port (VccA≤VccB)
-
No Power-Supply Sequencing Required - VCcA or VccB Can Be Ramped First
-
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
-
ESD Protection Exceeds JESD 22
-
IEC 61000-4-2 ESD (B Port)
- ±8-kV Contact Discharge
- ±10-KV Air-Gap Discharge
TXS0104ERGYR Application
-
Handset
-
Smartphone
-
Tablet
-
Desktop PC

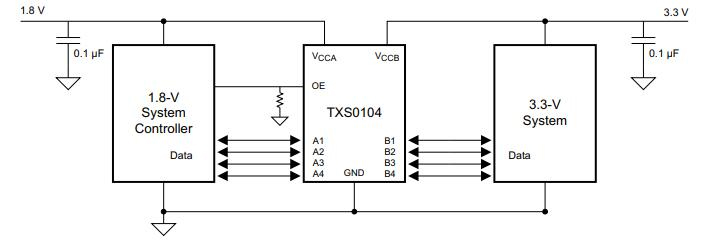

TXS0104ERGYR Typical Application Circuit
The TXS0104E device can be used in level-translation applications for interfacing devices or systems operating at different interface voltages with one another. The TXS0104E device is ideal for use in applications where an open-drain driver is connected to the data I/ Os, The TXS0104E device can also be used in applications where a push-pull driver is connected to the data I/Os, but the TXB0104 device might be a better option for such push-pull applications, the application schematic is given below.
TXS0104ERGYR Application Schematic

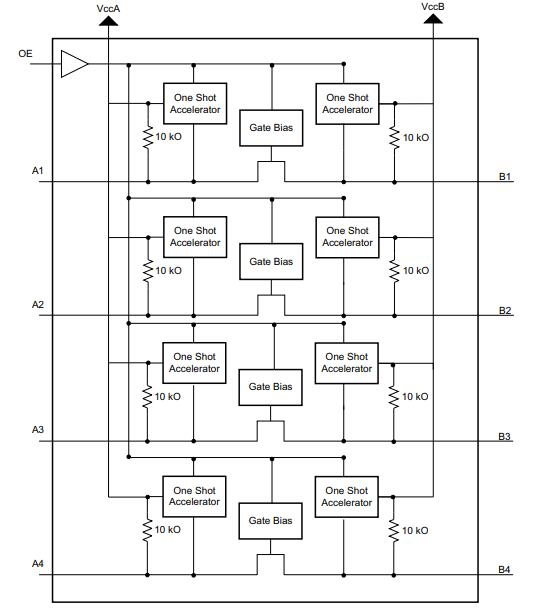

TXS0104ERGYR Functional Block Diagram
TXS0104ERGYR Functional Block Diagram

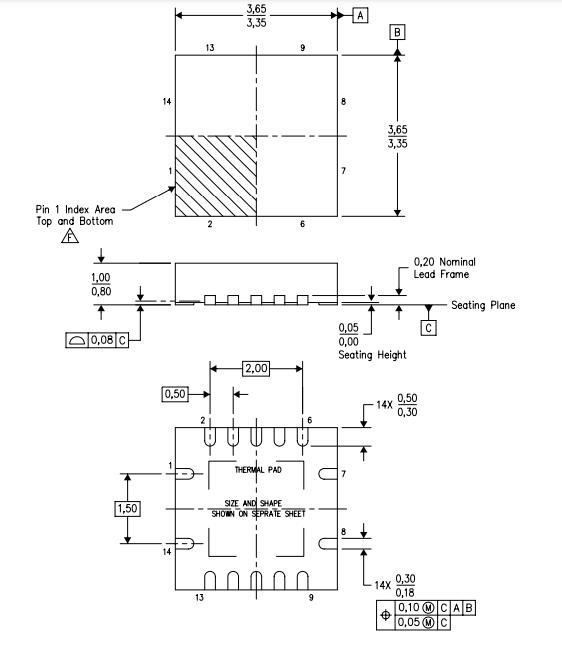

TXS0104ERGYR Package
TXS0104ERGYR Package
Specifications
TXS0104ERGYR Tech Specifications
TXS0104ERGYR Tech Specifications
Texas Instruments TXS0104ERGYR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TXS0104ERGYR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 12 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 14-VFQFN Exposed Pad | |
| Number of Pins | 14Pins | |
| Weight | 32.205058mg | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 14Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | QUAD |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 1.8V | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | TXS0104 | |
| Pin Count | 14 | |
| Output Type | Open Drain, Push-Pull | |
| Number of Channels | 4Channels | |
| Number of Circuits | 1Circuit | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 1.65V | |
| Number of Bits | 4Bits | |
| Propagation Delay | 260 ns | |
| Quiescent Current | 14.4μA | |
| Turn On Delay Time | 260 ns | |
| Logic Function | Translator | |
| Data Rate | 24Mbps | |
| Interface IC Type | INTERFACE CIRCUIT |
| Product Attribute | Attribute Value | |
|---|---|---|
| High Level Output Current | -20μA | |
| Channel Type | Bidirectional | |
| Low Level Output Current | 1mA | |
| Supply Voltage1-Nom | 3.3V | |
| Max Junction Temperature (Tj) | 150°C | |
| Ambient Temperature Range High | 85°C | |
| Translator Type | Voltage Level | |
| Voltage - VCCA | 1.65V~3.6V | |
| Voltage - VCCB | 2.3V~5.5V | |
| Features | Auto-Direction Sensing | |
| Height | 1mm | |
| Length | 3.5mm | |
| Width | 3.5mm | |
| Thickness | 900μm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Frequently Asked Questions
What is a TXS0104ERGYR?
4-bit non-inverting translator.
What determines the minimum value of the resistor?
The current-sourcing capability of the driver.
What can the TXS0104ERGYR device translate?
Push-pull CMOS logic outputs.
What type of applications can theTXS0104ERGYR device be used for?
Level-translation applications.
FAQ
What is a TXS0104ERGYR?
4-bit non-inverting translator.
What determines the minimum value of the resistor?
The current-sourcing capability of the driver.
What can the TXS0104ERGYR device translate?
Push-pull CMOS logic outputs.
What type of applications can theTXS0104ERGYR device be used for?
Level-translation applications.
