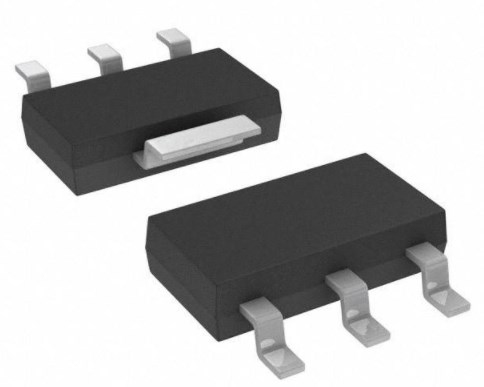

IC REG LINEAR 5V 500MA SOT223-4
This fixed-voltage integrated-circuit voltage regulator series is intended for a variety of applications. The article will show more details of the device.
UA78M05CDCYR: Equivalents, Circuit, Pinout
IC REG LINEAR 5V 500MA SOT223-4 This fixed-voltage integrated-circuit voltage regulator series is intended for a variety of applications. The article will show more details of the device.
97
Mar 14, 2022
Cheryl Edie
UA78M05CDCYR
15000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.63817 | $0.64 |
| 10+ | $0.60205 | $6.02 |
| 100+ | $0.56797 | $56.8 |
| 500+ | $0.53582 | $267.91 |
| 1000+ | $0.50549 | $505.49 |
Unit Price:$0.63817
Subtotal: $0.64
Quick Links
UA78M05CDCYR Description
This fixed-voltage integrated-circuit voltage regulator series is intended for a variety of applications. On-card regulation for noise reduction and distribution issues related with singlepoint regulation are among the uses. Each of these regulators has an output current of up to 500 mA. These regulators are essentially impervious to overload due to their inbuilt current-limiting and thermal-shutdown features. These devices can be used as fixed-voltage regulators, as well as with other components to provide adjustable output voltages and currents, and as the power-pass element in precision regulators.

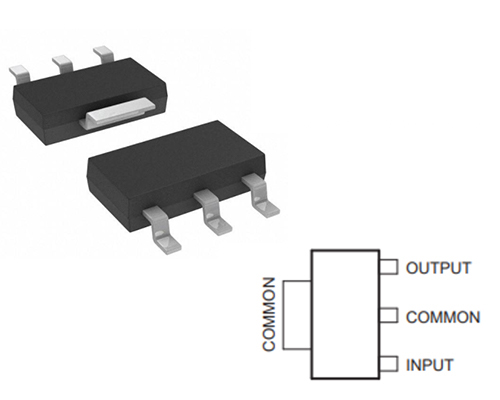

UA78M05CDCYR Pinout
UA78M05CDCYR CAD Model

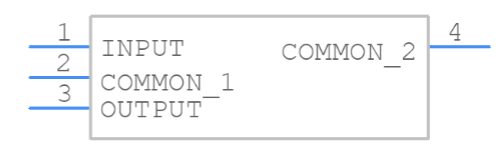

Symbol

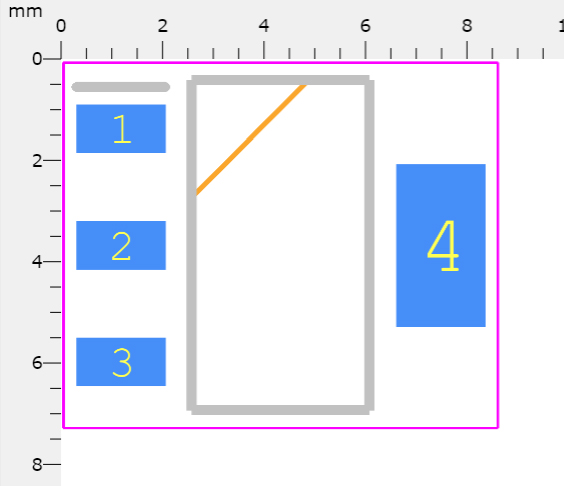

Footprint

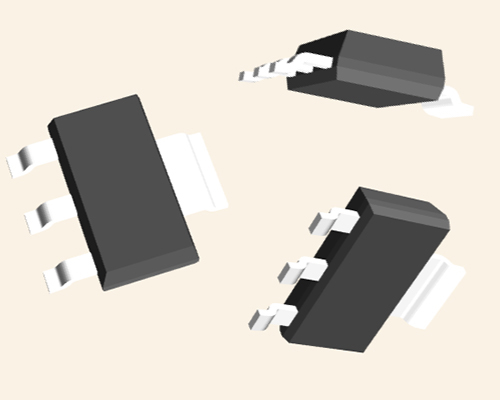

3D Model
UA78M05CDCYR Features
• 3-Terminal Regulators
• Output Current up to 500 mA
• No External Components
• Internal Thermal-Overload Protection
• High Power-Dissipation Capability
• Internal Short-Circuit Current Limiting
• Output Transistor Safe-Area Compensation

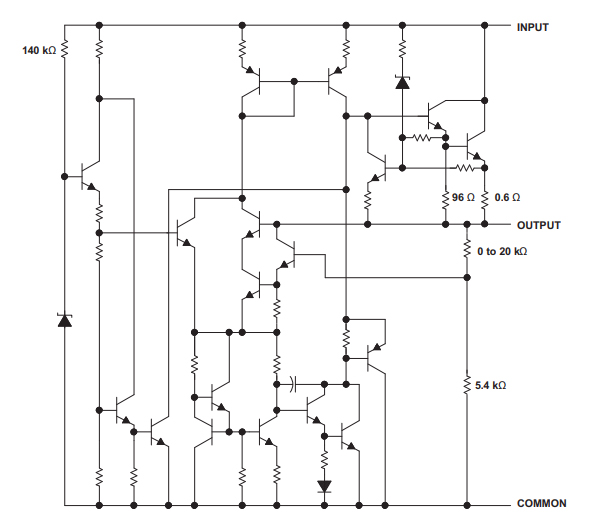

UA78M05CDCYR Functional Block Diagram
UA78M05CDCYR Recommended Operating Conditions
| MIN MAX | UNIT | ||
| VI Input voltage | uA78M33 | 5.3 25 | V |
| uA78M05 | 7 25 | ||
| uA78M06 | 8 25 | ||
| uA78M08 | 10.5 25 | ||
| uA78M09 | 11.5 26 | ||
| uA78M10 | 12.5 28 | ||
| uA78M12 | 14.5 30 | ||
| uA78M15 | 17.5 30 | ||
| Io Output current | 500 | mA | |
| TJ Operating virtual junction temperature | uA78MxxC | 0 125 | °C |
| uA78MxxI | -40 125 | ||
UA78M05CDCYR Equivalents
| Part Number | Description | Manufacturer |
| NTE1974POWER CIRCUITS | Fixed Positive Standard Regulator, 18VPSFM3, TO-220, 3 PIN | NTE Electronics Inc |
| MC78M12CDTXPOWER CIRCUITS | Fixed Positive Standard Regulator, 12VBIPolar, PSSO2, DPAK-3 | Fairchild Semiconductor Corporation |
| MC78M08BDT/RKPOWER CIRCUITS | 8V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, DPAK-3 | onsemi |
| MC7808CD2TPOWER CIRCUITS | Fixed Positive Standard Regulator, 8VBIPolar, PSSO2, D2PAK-3/2 | Rochester Electronics LLC |
| MC7806ACTPOWER CIRCUITS | 6V FIXED POSITIVE REGULATOR, SFM3, TO-220, 3 PIN | onsemi |
| MC7818ACTPOWER CIRCUITS | IC,VOLT REGULATOR,FIXED,+18V,BIPOLAR,SIP,3PIN,PLASTIC | Freescale Semiconductor |
| MC78M08ACTGPOWER CIRCUITS | Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 8.0 V; TJ = 0° to +125°C, TO-220, SINGLE GAUGE, 3-LEAD, 50-TUBE | onsemi |
| MC7808BD2TR4POWER CIRCUITS | 8V FIXED POSITIVE REGULATOR, PSSO2, PLASTIC, D2PAK-3 | Motorola Mobility LLC |
| MC78M15CDTGPOWER CIRCUITS | Linear Voltage Regulator, 500 mA, 5 to 24 V, High PSRR, Positive Vout: 15 V; TJ = 0° to +125°C, DPAK (SINGLE GAUGE) TO-252, 75-TUBE | onsemi |
| MC78M12CDTXMPOWER CIRCUITS | Fixed Positive Standard Regulator, 12VBIPolar, PSSO2, TO-252, DPAK-3 | Fairchild Semiconductor Corporation |
Specifications
UA78M05CDCYR Tech Specifications
UA78M05CDCYR Tech Specifications
Texas Instruments UA78M05CDCYR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments UA78M05CDCYR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 1 day ago) | |
| Factory Lead Time | 6 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-261-4, TO-261AA | |
| Number of Pins | 4Pins | |
| Operating Temperature | 0°C~125°C | |
| Packaging | Cut Tape (CT) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 4Terminations | |
| ECCN Code | EAR99 | |
| Packing Method | TR | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Terminal Pitch | 2.3mm | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | UA78M05 | |
| Pin Count | 4 | |
| Number of Outputs | 1Output | |
| Qualification Status | Not Qualified | |
| Voltage - Input (Max) | 25V | |
| Output Voltage | 5V | |
| Output Type | Fixed | |
| Max Output Current | 500mA | |
| Max Supply Voltage | 25V | |
| Min Supply Voltage | 7V | |
| Nominal Supply Current | 4.5mA | |
| Output Configuration | Positive | |
| Quiescent Current | 4.5mA | |
| Accuracy | 3 % | |
| Output Voltage 1 | 5V | |
| Number of Regulators | 1Regulator |
| Product Attribute | Attribute Value | |
|---|---|---|
| Min Input Voltage | 7V | |
| Protection Features | Over Current, Over Temperature, Short Circuit | |
| Voltage Dropout (Max) | 2V @ 350mA | |
| PSRR | 80dB (120Hz) | |
| Dropout Voltage | 2V | |
| Dropout Voltage1-Nom | 2V | |
| Power Supply Rejection Ratio (PSRR) | 80dB | |
| Voltage Tolerance-Max | 5% | |
| Nominal Output Voltage | 5V | |
| Max Junction Temperature (Tj) | 125°C | |
| Height | 1.8mm | |
| Length | 6.5mm | |
| Width | 3.5mm | |
| Thickness | 1.6mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
UA78M05CDCYR Applications
• On-Card Regulation
• Portable Devices
• Computing & Servers
• Telecommunications

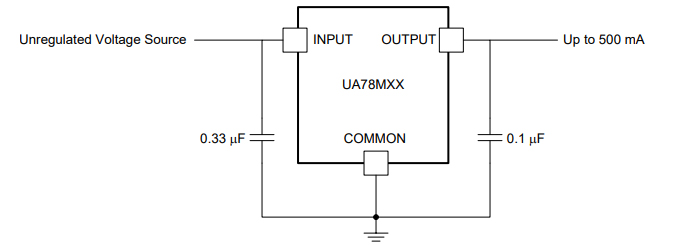

UA78M05CDCYR Typical Application Circuit
UA78M05CDCYR Typical Application Circuit
UA78M05CDCYR Package
UA78M05CDCYR Manufacturer
Texas Instruments Incorporated (TI) is an American technology company based in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume. The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue. TI also produces TI digital light processing technology and education technology products including calculators, micro-controllers, and multi-core processors. The company boasts 45,000 patents around the globe as of 2016.
Frequently Asked Questions
What is UA78M05CDCYR?
This fixed-voltage integrated-circuit voltage regulator series is intended for a variety of applications. On-card regulation for noise reduction and distribution issues related with singlepoint regulation are among the uses. Each of these regulators has an output current of up to 500 mA. These regulators are essentially impervious to overload due to their inbuilt current-limiting and thermal-shutdown features. These devices can be used as fixed-voltage regulators, as well as with other components to provide adjustable output voltages and currents, and as the power-pass element in precision regulators.
What is the recommended operating temperature of the component?
0°C~125°C.
0°C~125°C.
TO-261-4, TO-261AA.
TO-261-4, TO-261AA.
4.
FAQ
What is UA78M05CDCYR?
This fixed-voltage integrated-circuit voltage regulator series is intended for a variety of applications. On-card regulation for noise reduction and distribution issues related with singlepoint regulation are among the uses. Each of these regulators has an output current of up to 500 mA. These regulators are essentially impervious to overload due to their inbuilt current-limiting and thermal-shutdown features. These devices can be used as fixed-voltage regulators, as well as with other components to provide adjustable output voltages and currents, and as the power-pass element in precision regulators.
What is the recommended operating temperature of the component?
0°C~125°C.
0°C~125°C.
TO-261-4, TO-261AA.
TO-261-4, TO-261AA.
4.
