Diode Ultra Fast Recovery Rectifier 1K Volt 1A 2-Pin DO-41 Tape and Reel UF4007 is a fast recovery diode. This article mainly covers datasheet, pinout, equivalents, and more details about UF4007.
3354
Sep 13, 2021
Simon Congreve
Verlustleistung - 1N4007 vs UF4007 Effizienztest
Diode Ultra Fast Recovery Rectifier 1K Volt 1A 2-Pin DO-41 Tape and Reel
UF4007 is a fast recovery diode. This article mainly covers datasheet, pinout, equivalents, and more details about UF4007. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and Ics in stock. Welcome RFQ!
UF4007
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.30886 | $0.31 |
| 10+ | $0.29137 | $2.91 |
| 100+ | $0.27488 | $27.49 |
| 500+ | $0.25932 | $129.66 |
| 1000+ | $0.24464 | $244.64 |
Symbol

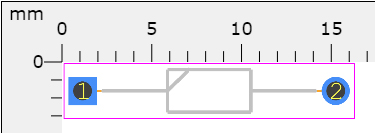

Footprint

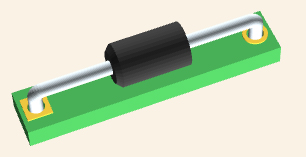

3D Model
A cathode (-) and anode (+) are both present in the UF4007 diode. The cathode is the tip of the triangle with the line on top of it in the schematic symbol. A band marks the cathode on the diode's body, as shown below.
UF4007 Pinout
The UF4007 diode is similar to a one-way electric valve in that current can only travel from the anode to the cathode and never from the cathode to the anode.
The UF4007 is an axially leaded fast recovery power diode in a DO-41 package with low-cost, high-efficiency plastic rectifiers. The UF4007 fast recovery diodes are commonly employed in high-frequency rectification and freewheeling in switching power supply or electric vehicle chargers.
ON Semiconductor UF4007 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor UF4007.
ON Semiconductor UF4007 technical specifications, attributes, parameters and parts with similar specifications to ON Semiconductor UF4007.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 4 days ago) | |
| Factory Lead Time | 10 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | DO-204AL, DO-41, Axial | |
| Number of Pins | 2Pins | |
| Supplier Device Package | DO-204AL (DO-41) | |
| Weight | 4.535924g | |
| Packaging | Tape & Reel (TR) | |
| Published | 2008 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Max Operating Temperature | 150°C | |
| Min Operating Temperature | -65°C | |
| Capacitance | 17pF | |
| Voltage - Rated DC | 1kV | |
| Current Rating | 1A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Base Part Number | UF4007 | |
| Polarity | Standard | |
| Voltage | 1kV | |
| Element Configuration | Single | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Current | 1A | |
| Diode Type | Standard | |
| Current - Reverse Leakage @ Vr | 10μA @ 1000V | |
| Power Dissipation | 2.08W | |
| Output Current | 1A | |
| Voltage - Forward (Vf) (Max) @ If | 1.7V @ 1A | |
| Forward Current | 1A | |
| Operating Temperature - Junction | -65°C~150°C | |
| Max Surge Current | 30A | |
| Voltage - DC Reverse (Vr) (Max) | 1000V | |
| Current - Average Rectified (Io) | 1A | |
| Forward Voltage | 1.7V | |
| Max Reverse Voltage (DC) | 1kV |
| Product Attribute | Attribute Value | |
|---|---|---|
| Average Rectified Current | 1A | |
| Reverse Recovery Time | 75 ns | |
| Peak Reverse Current | 10μA | |
| Max Repetitive Reverse Voltage (Vrrm) | 1kV | |
| Capacitance @ Vr, F | 17pF @ 4V 1MHz | |
| Peak Non-Repetitive Surge Current | 30A | |
| Reverse Voltage | 1kV | |
| Max Forward Surge Current (Ifsm) | 30A | |
| Recovery Time | 75 ns | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 2.72mm | |
| Length | 5.21mm | |
| Width | 2.72mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Glass passivated chip junction
• Ultrafast reverse recovery time
• Low forward voltage drop
• Low switching losses, high efficiency
• High forward surge capability
• Solder dip 275 °C max. 10 s, per JESD 22-B106
For use in high-frequency rectification and freewheeling application in switching mode converters and inverters for consumer, computer, and telecommunication.
ON Semiconductor is a semiconductor supplier company, formerly in the Fortune 500, but dropping into the Fortune 1000 (ranked 512) in 2020. Products include power and signal management, logic, discrete, and custom devices for automotive, communications, computing, consumer, industrial, LED lighting, medical, military/aerospace, and power applications.
Download datasheets and manufacturer documentation for UF4007
