ULN2003AD: NPN Transistor, Pinout, Datasheet

The ULN2003AD device is made up of seven NPN Darlington transistor pairs with high voltage and current. Each unit has a common emitter and an open collector output. These units include suppression diodes for inductive loads to maximize their effectiveness. The ULN2003A device features a series base resistor to each Darlington pair, allowing direct operation with TTL or CMOS at 5 V or 3.3 V supply voltages. The ULN2003AD device addresses a wide range of interface requirements, including solenoids, relays, lamps, tiny motors, and LEDs. Applications that require sink currents greater than the capability of a single output can be addressed by paralleling the outputs.

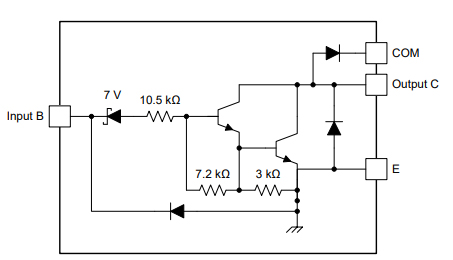

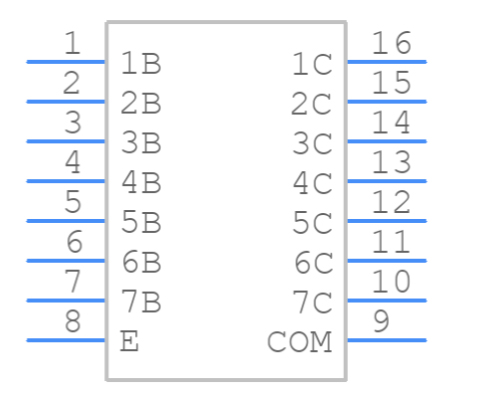

Symbol

Footprint

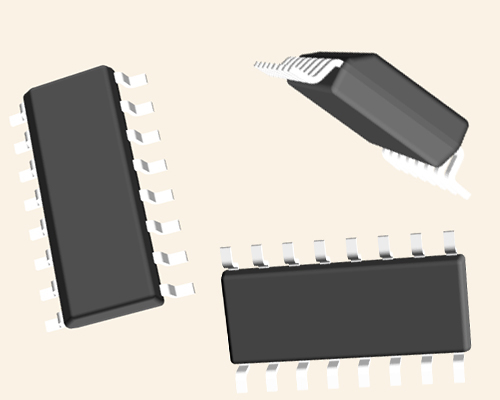

3D Model

• 500-mA-Rated Collector Current (Single Output)

• High-Voltage Outputs: 50 V

• Output Clamp Diodes

• Inputs Compatible With Various Types of Logic

• Relay-Driver Applications

• Relay Drivers

• Stepper and DC Brushed Motor Drivers

• Lamp Drivers

• Display Drivers (LED and Gas Discharge)

• Line Drivers

• Logic Buffers

ULN2003AD Typical Application Circuit
