STMICROELECTRONICS ULN2803A Bipolar Transistor Array, Darlington, NPN, 50 V, 2.25 W, 500 mA, 1000 hFE, DIP The ULN2803A device is a 50 V, 500 mA Darlington transistor array.
123
Jun 6, 2021
Sabrina
STMICROELECTRONICS ULN2803A Bipolar Transistor Array, Darlington, NPN, 50 V, 2.25 W, 500 mA, 1000 hFE, DIP
The ULN2803A device is a 50 V, 500 mA Darlington transistor array. The device consists of eight NPN Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of each Darlington pair is 500 mA. The Darlington pairs may be connected in parallel for higher current capability.
ULN2803A
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.24441 | $2.24 |
| 10+ | $2.11737 | $21.17 |
| 100+ | $1.99752 | $199.75 |
| 500+ | $1.88445 | $942.23 |
| 1000+ | $1.77778 | $1777.78 |
The ULN2803A contains eight Darlington transistors with common emitters and integral suppression diodes for inductive loads. Each Darlington features a peak load current rating of 600 mA (500 mA continuous) and can withstand at least 50 V in the OFF state. Outputs may be paralleled for higher current capability.
Eight Darlington transistors with common emitters
Output current to 500 mA
Output voltage to 50 V
Integral suppression diodes
Versions for all popular logic families

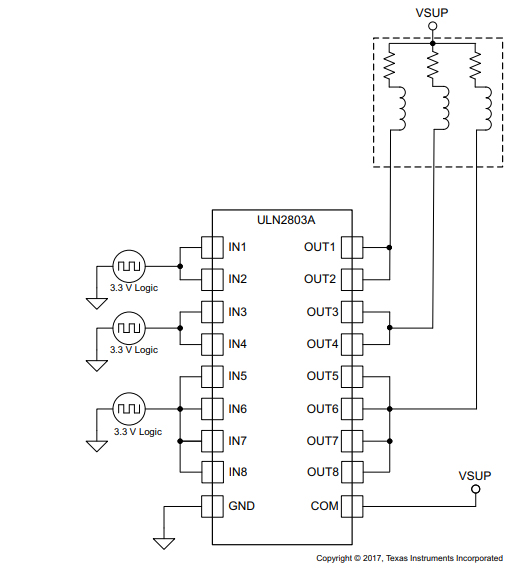

Output can be paralleled
Inputs pinned opposite outputs to simplify board layout
STMicroelectronics ULN2803A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ULN2803A.
STMicroelectronics ULN2803A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ULN2803A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 15 Weeks | |
| Lifecycle Status | ACTIVE (Last Updated: 8 months ago) | |
| Package / Case | 18-DIP (0.300, 7.62mm) | |
| Mounting Type | Through Hole | |
| Mount | Through Hole | |
| Contact Plating | Tin | |
| Number of Pins | 18Pins | |
| Weight | 1.270087g | |
| Transistor Element Material | SILICON | |
| Number of Elements | 8 Elements | |
| Collector-Emitter Saturation Voltage | 1.1V | |
| Collector-Emitter Breakdown Voltage | 50V | |
| Packaging | Tube | |
| Operating Temperature | -20°C~150°C TJ | |
| JESD-609 Code | e3 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 18Terminations | |
| ECCN Code | EAR99 | |
| Additional Feature | LOGIC LEVEL COMPATIBLE | |
| Voltage - Rated DC | 50V | |
| Max Power Dissipation | 2.25W | |
| Terminal Position | DUAL | |
| Current Rating | 500mA | |
| Base Part Number | ULN2803 | |
| Pin Count | 18 | |
| Output Voltage | 50V | |
| Polarity | NPN | |
| Number of Channels | 2Channels | |
| Output Current | 500mA | |
| Transistor Application | SWITCHING | |
| Transistor Type | 8 NPN Darlington |
| Product Attribute | Attribute Value | |
|---|---|---|
| Collector Emitter Voltage (VCEO) | 50V | |
| Max Collector Current | 500mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 350mA 2V | |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500μA, 350mA | |
| Emitter Base Voltage (VEBO) | 50V | |
| Continuous Collector Current | 500mA | |
| VCEsat-Max | 1.6 V | |
| Width | 7.1mm | |
| Length | 23.24mm | |
| Height | 3.68mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
• Relay Drivers
• Hammer Drivers
• Lamp Drivers
• Display Drivers (LED and Gas Discharge)
• Line Drivers
• Logic Buffers
• Stepper Motors
• IP Camera
• HVAC Valve and LED Dot Matrix
Typical Applications:
Download datasheets and manufacturer documentation for STMicroelectronics ULN2803A.
Download datasheets and manufacturer documentation for ULN2803A

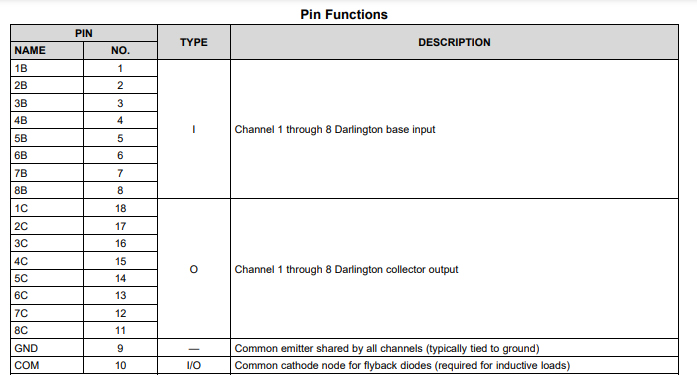

ULN2803A Symbol
ULN2803A Footprint

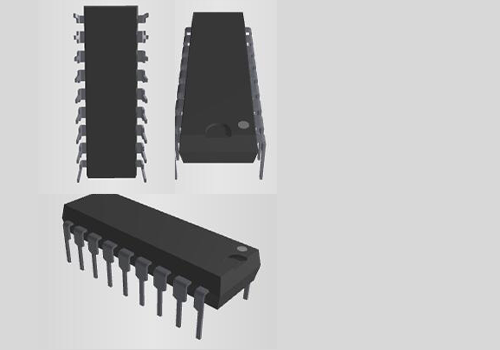

ULN2803A 3D Model
