ULN2803ADWR NPN Transistor: Pinout, Datasheet

The ULN2803ADWR is made up of seven NPN Darlington transistor pairs with high voltage and current. Each unit has a common emitter and an open collector output. These units include suppression diodes for inductive loads to maximize their effectiveness. The ULN2803A includes a series base resistor for each Darlington pair, allowing direct operation with TTL or CMOS at supply voltages of 5.0 V or 3.3 V. The ULN2803ADWR addresses a wide range of interface requirements, including solenoids, relays, lamps, tiny motors, and LEDs. Applications that require sink currents greater than the capability of a single output can be addressed by paralleling the outputs.

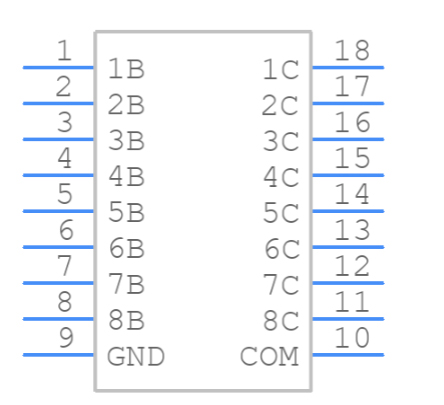

Symbol

Footprint

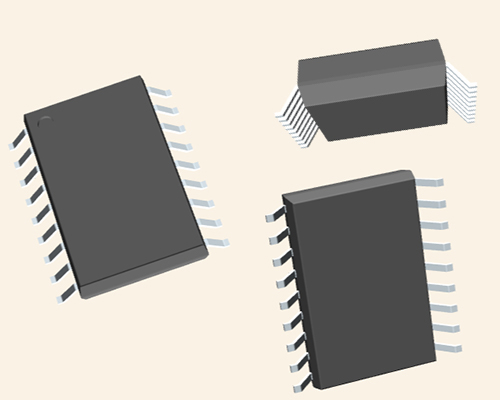

3D Model

• 500-mA-Rated Collector Current (Single Output)

• High-Voltage Outputs: 50 V

• Output Clamp Diodes

• Inputs Compatible With Various Types of Logic

• Relay-Driver Applications

• Compatible with ULN2800A Series

• Relay Drivers

• Hammer Drivers

• Lamp Drivers

• Display Drivers (LED and Gas Discharge)

• Line Drivers

• Logic Buffers
