Transistors - Bipolar (BJT) - Arrays TRANS 7NPN DARL 50V 0.5A 16DIP
397
Oct 29, 2021
Catherine Young
Darlington Pair
Transistors - Bipolar (BJT) - Arrays TRANS 7NPN DARL 50V 0.5A 16DIP
The ULQ2003 is high voltage, high current Darlington array containing seven open collector Darlington pairs with common emitters. Each channel rated at 500 mA and can withstand peak currents of 600 mA. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
ULQ2003A
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.66314 | $0.66 |
| 10+ | $0.6256 | $6.26 |
| 100+ | $0.59019 | $59.02 |
| 500+ | $0.55678 | $278.39 |
| 1000+ | $0.52527 | $525.27 |
Pinout
Symbol
Footprint

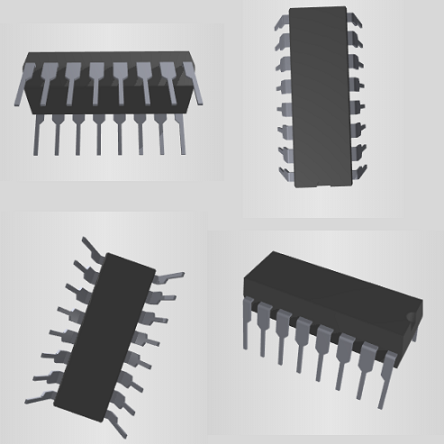

3D Model
The ULQ2003 is high voltage, high current Darlington array containing seven open collector Darlington pairs with common emitters. Each channel rated at 500 mA and can withstand peak currents of 600 mA. Suppression diodes are included for inductive load driving and the inputs are pinned opposite the outputs to simplify board layout. The versions interface to all common logic families. These versatile devices are useful for driving a wide range of loads including solenoids, relays DC motors, LED displays filament lamps, thermal print-heads and high power buffers. The ULQ2001A/2003A and 2004A are supplied in 16 pin plastic DIP packages with a copper leadframe to reduce thermal resistance. They are available also in small outline package (SO16) as ULQ2003D1/2004D1. The ULQ2003 is available as Automotive Grade in SO16 package. This device is qualified according to the specification AEC-Q100 of the Automotive market, in the temperature range ﹣40 ℃ to 125 ℃ and the statistical tests PAT, SYL, SBL are performed.
This article provides you with a basic overview of the ULQ2003 Darlington Array, including its pin descriptions, features and specifications, etc., to help you quickly understand what ULQ2003 is.
● Seven Darlington per package
● Extended temperature range: -40 to 105 °C
● Output current 500 mA per driver (600 mA peak)
● Output voltage 50 V
● Automotive Grade product in SO16 package
● Integrated suppression diodes for inductive loads
● Outputs can be paralleled for higher current
● TTL/CMOS/PMOS/DTL compatible inputs
● Inputs pinned opposite outputs to simplify layout
STMicroelectronics ULQ2003A technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ULQ2003A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) | |
| Factory Lead Time | 15 Weeks | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Number of Pins | 16Pins | |
| Weight | 4.535924g | |
| Transistor Element Material | SILICON | |
| Collector-Emitter Breakdown Voltage | 50V | |
| Collector-Emitter Saturation Voltage | 1.1V | |
| Number of Elements | 7 Elements | |
| Operating Temperature | 150°C TJ | |
| Packaging | Tube | |
| JESD-609 Code | e4 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Additional Feature | LOGIC LEVEL COMPATIBLE | |
| Voltage - Rated DC | 50V | |
| Terminal Position | DUAL | |
| Current Rating | 500mA | |
| Base Part Number | ULQ2003 | |
| Pin Count | 16 | |
| Output Voltage | 50V | |
| Max Output Current | 500mA | |
| Polarity | NPN | |
| Configuration | COMPLEX | |
| Number of Channels | 7Channels | |
| Output Current | 500mA | |
| Max Output Voltage | 50V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Transistor Application | SWITCHING | |
| Transistor Type | 7 NPN Darlington | |
| Collector Emitter Voltage (VCEO) | 50V | |
| Max Collector Current | 500mA | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 1000 @ 350mA 2V | |
| Vce Saturation (Max) @ Ib, Ic | 1.6V @ 500μA, 350mA | |
| Collector Base Voltage (VCBO) | 30V | |
| Emitter Base Voltage (VEBO) | 30V | |
| Height | 5.1mm | |
| Length | 20mm | |
| Width | 7.1mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Schematic diagram
● Solenoids
● Relays DC Motors
● LED Displays Filament Lamps
● Thermal Print-heads
● High Power Buffers
Plastic DIP-16 Package
STMicroelectronics is a globally recognized semiconductor company. They are dedicated to developing semiconductor solutions for various microelectronics applications. STMicroelectronics enjoys unrivaled silicon and system expertise, strong manufacturing strength, IP portfolio,and solid relationships with their strategic partners. Based on these advantages, STMicroelectronics has become a pioneer in System-on-Chip (SoC) technology and its products has a positive effect in realizing today's convergence trends.
Download datasheets and manufacturer documentation for ULQ2003A
