How to use TP5100 2A 8.4/4.2V 1S and 2S Lithium Battery Charger DIY
TP5100 is a double switch buck 8.4V, single cell 4. 2V lithium battery charge management chip. This article is going to introduce detailed information about TP5100 for you to understand how to use it.
TP5100
The TP5100 is a single cell 4. 2V lithium battery charge management chip with a double switch buck of 8.4V. The TP5100 is suited for portable equipment and large current charging management applications because of its ultra-compact QFN16 packaging and easy external circuit. Meanwhile, the TP5100 has input overcurrent, under-voltage, over-temperature, and short circuit battery temperature monitoring, and reverse battery protection built-in.
The TP5100 offers a wide input voltage range of 5V to 18V, dual battery trickling charge into pre-charge, constant current, constant voltage three-phase, pre-charge current trickle charge current via an external resistor adjustment, and a maximum charge current of 2A. The TP5100 's switching mode operates at a frequency of 400kHz, allowing for the use of a smaller outer Suo device while still maintaining a low level of heat.
TP5100 Schematics

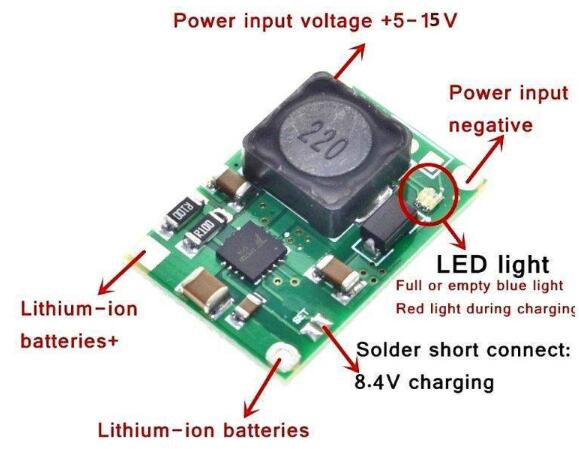

Double 8.4v / 4.2v lithium rechargeable single
Programmable charge current 0.1A-2A
Programmable steady precharge current 10% -100%
Wide operating voltage, maximum reach 18V
Red and green LED charge status indicator
Chip temperature protection. overcurrent protection, under-voltage protection
Battery temperature protection. reverse battery shutdown, short circuit protection
Switching frequency 400Khz, usable inductance 20uH, and more.
dual-cell 8.4V/single-cell 4.2V
input voltage of 5V -15V
switching mode frequency:400kHz
No need for external anti-backflow Schottky diode
Red LED: Charging battery
Blue LED: standby
Flashing Red/Blue: Battery capacitor, no battery
Both Red/Blue LED off. VIN very low/High, or high-temperature shutdown
Battery temperature protection
battery reverse connection shutdown
short circuit protection
Maximum junction temperature: 120°
Working environment temperature range: -40°C～85°C
TOPPOWER(Nanjing Extension Microelectronics) TP5100 technical specifications, attributes, parameters and parts with similar specifications to TOPPOWER(Nanjing Extension Microelectronics) TP5100.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | TQFN-16_4x4x065P |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tape & Reel (TR) |
| Product Attribute | Attribute Value | |
|---|---|---|
| RoHS Status | RoHS Compliant |
Static input supply voltage (VIN): 20V
BAI: -8.4V-20V
BAT Short-Circuit Duration: Continuous
Operating environment Temperature range: -40 °-85 °
Storage temperature range: -65 °– 125 °
HM
Power Tools
Walkie-talkie
Portable equipment, various chargers
Smartphone, FDA, mobile cellular telephone
MP4, MP5 players, tablets
The TP5100 offers a wide input voltage range of 5V to 18V, dual battery trickling charge into pre-charge, constant current, constant voltage three-phase, pre-charge current trickle charge current via an external resistor adjustment, and a maximum charge current of 2A.

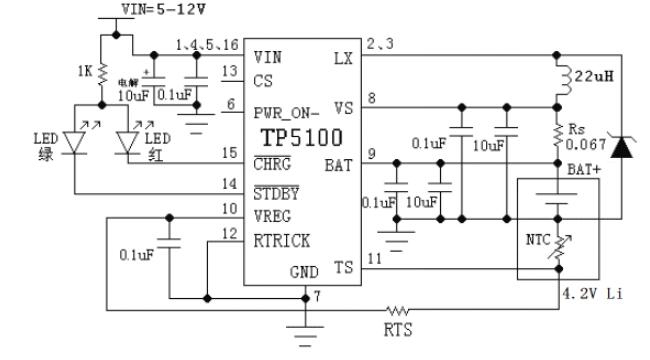

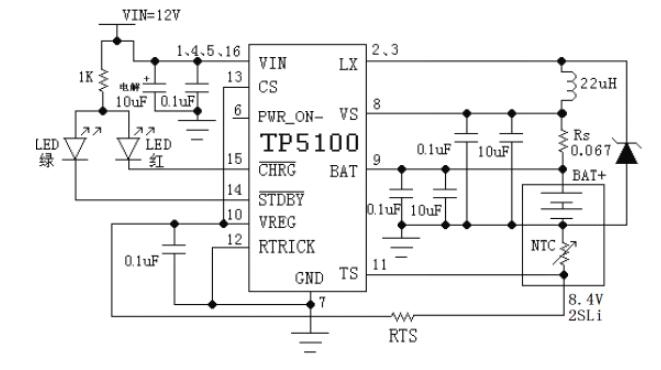

TP5100 Circuit

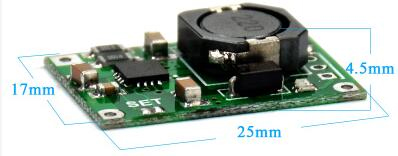

TP5100 Dimensions Outline
